Audio System (w/Navigation System), Multi-Display, Navigation System and Parking Assist (Rear View Monitor): Notes

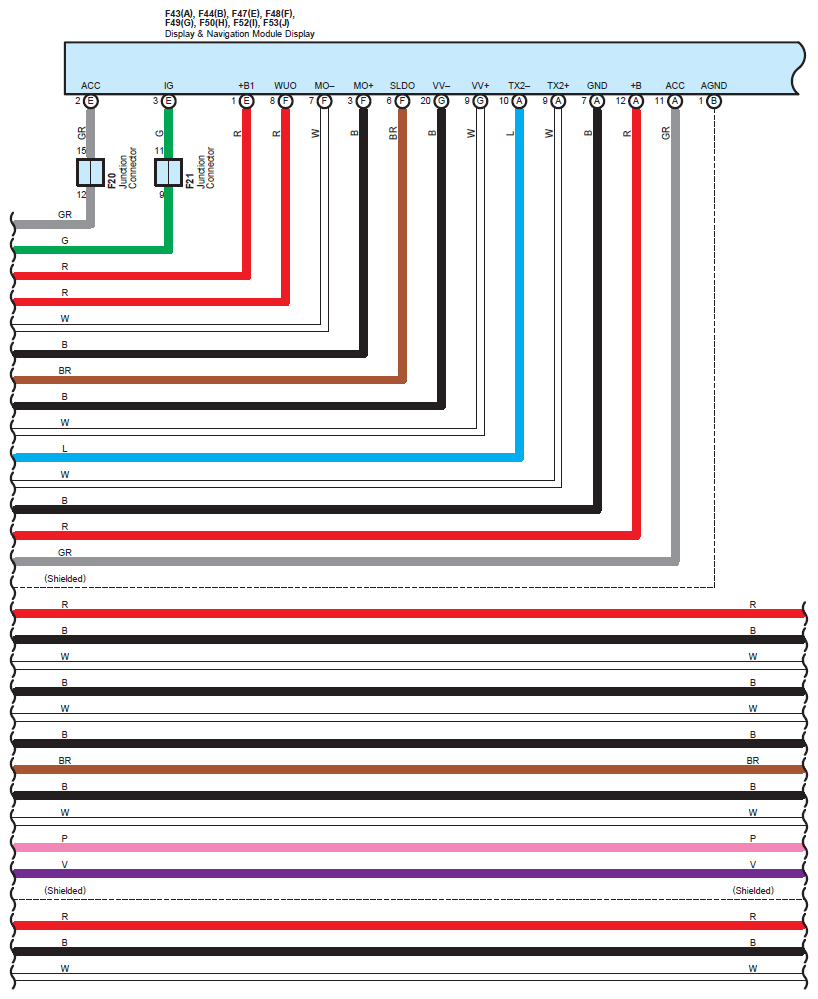

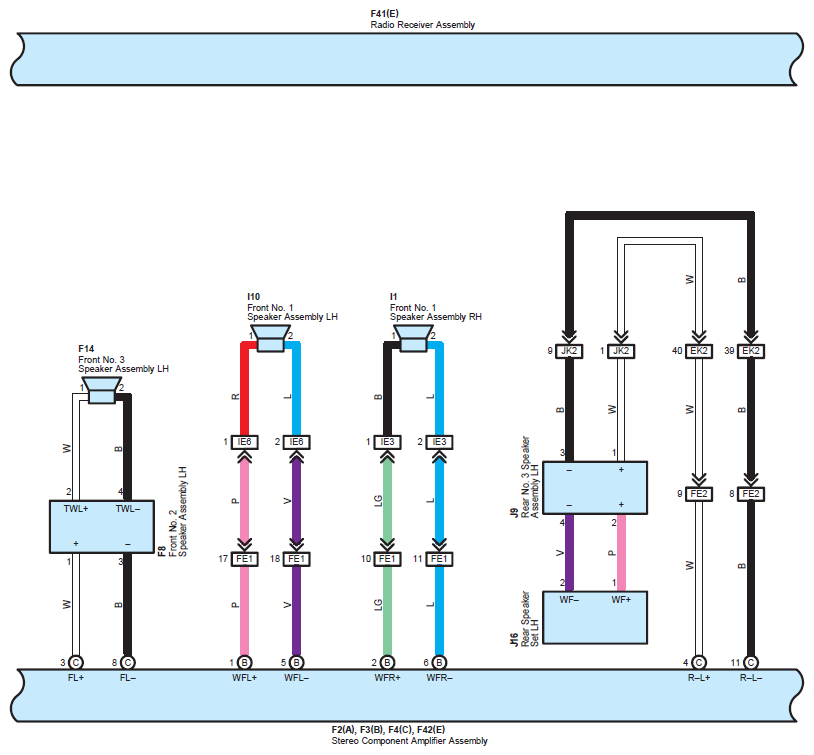

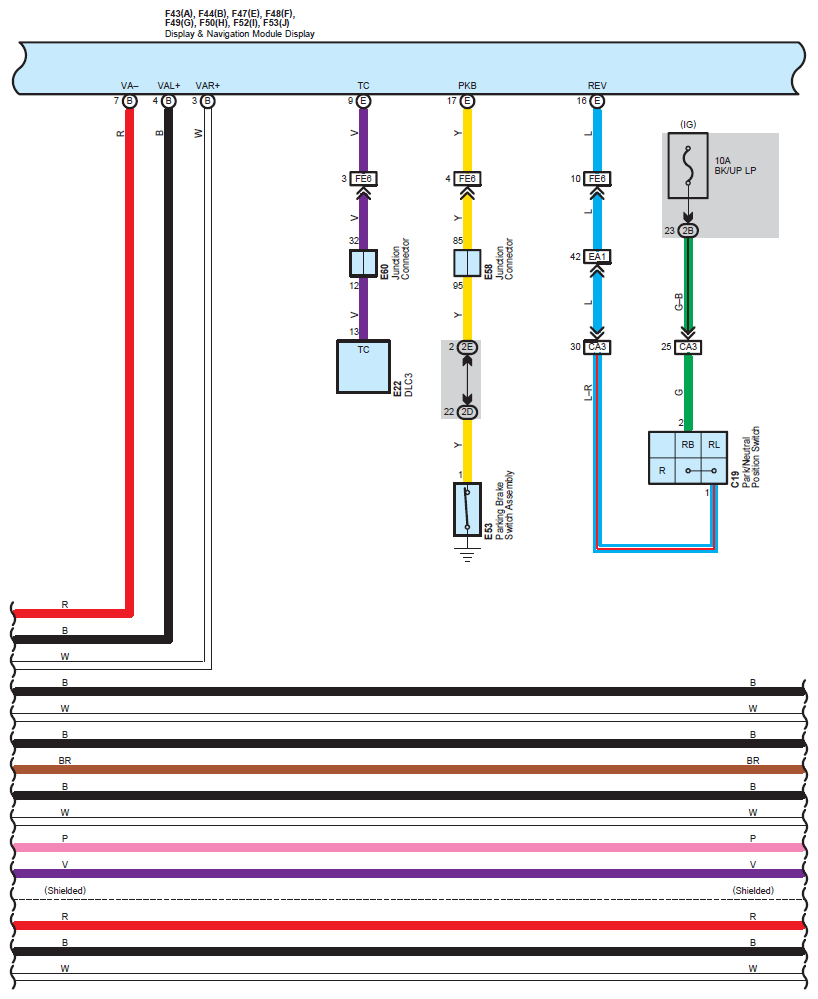

Fig 1: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (1 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

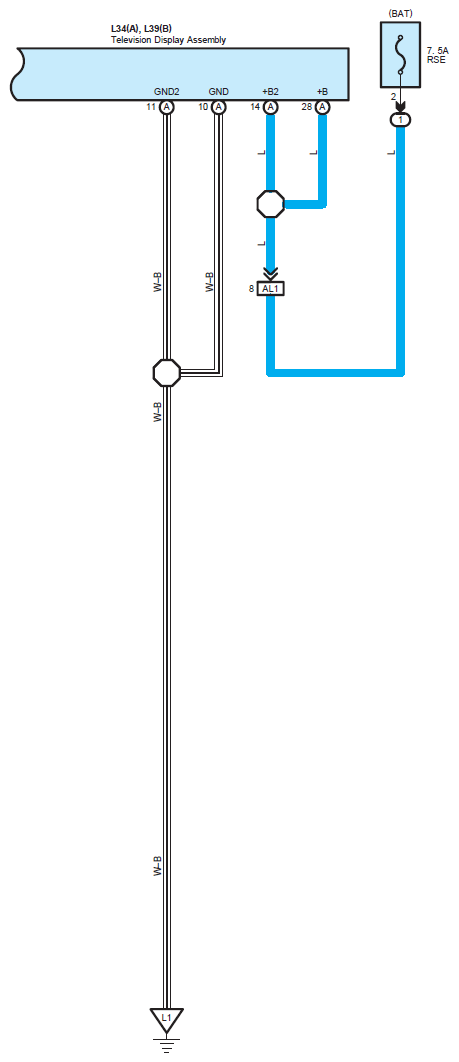

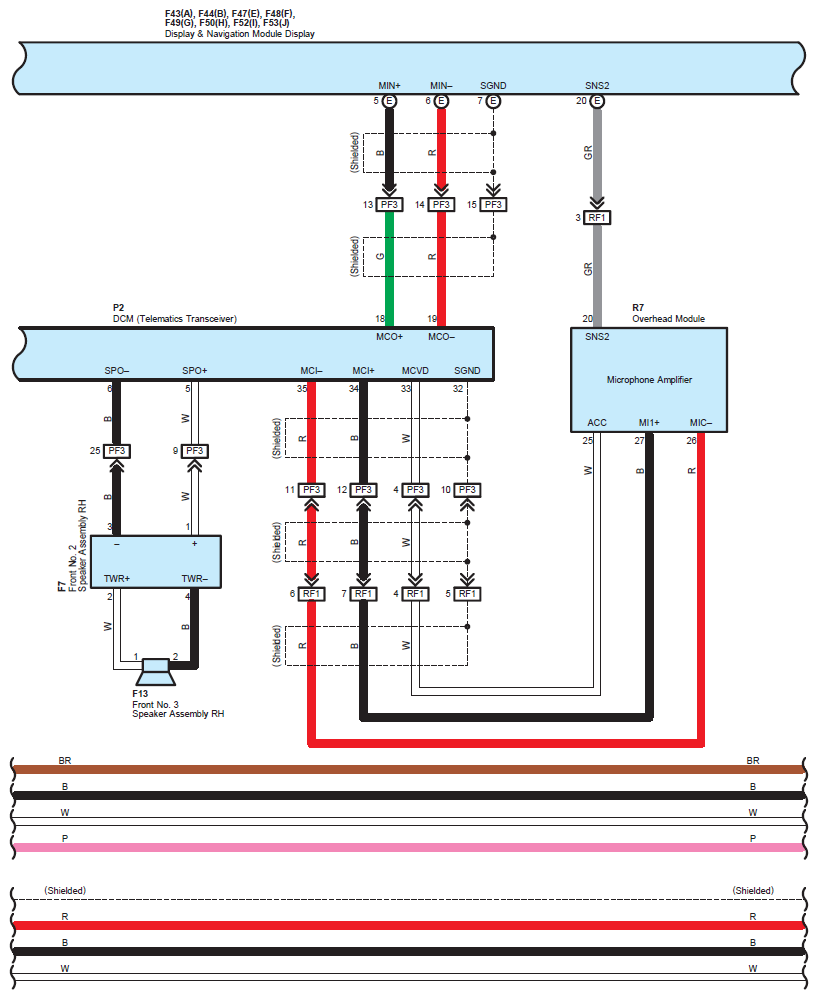

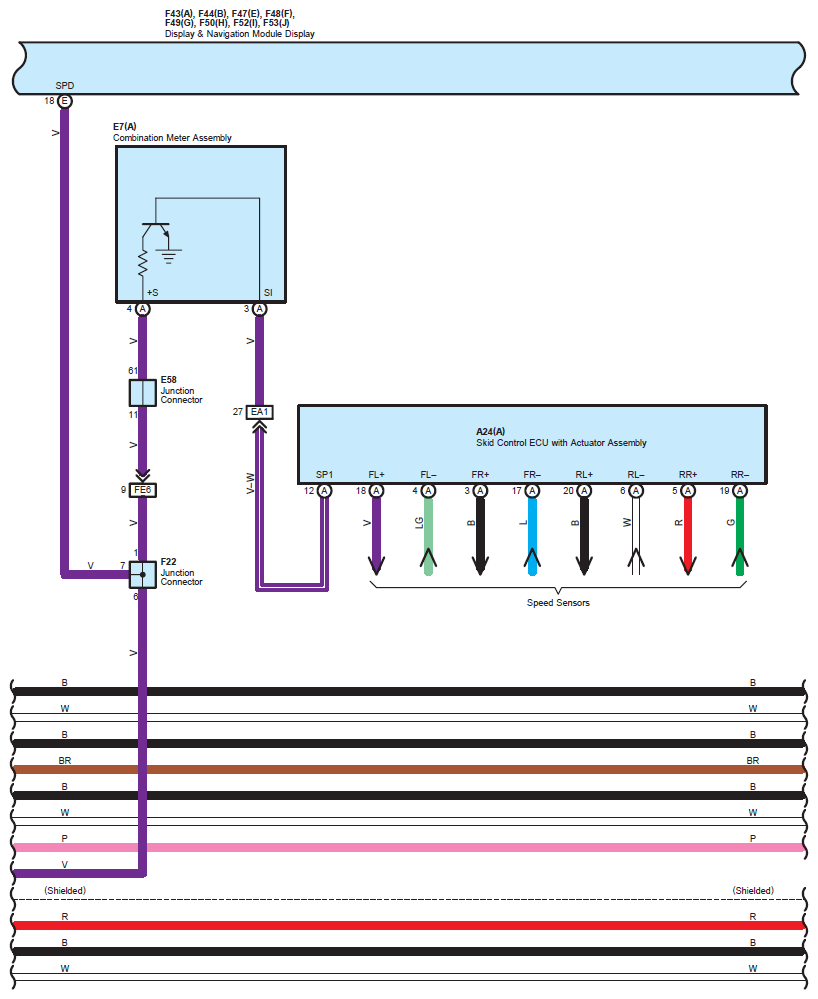

Fig 2: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (2 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

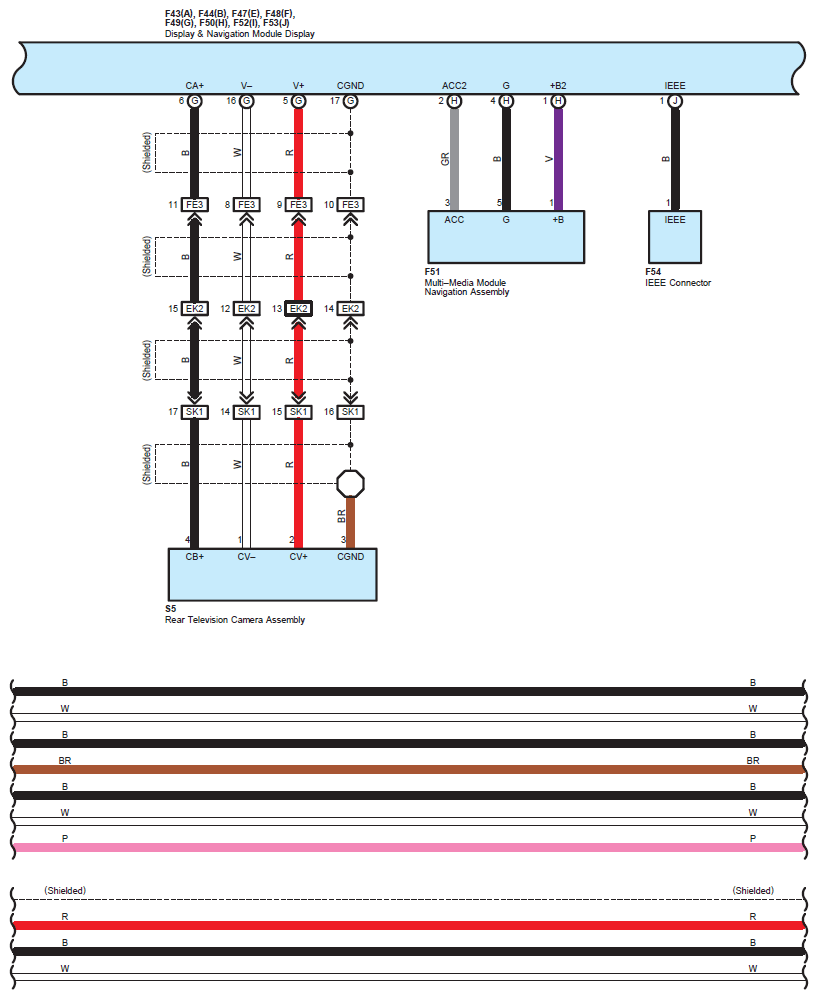

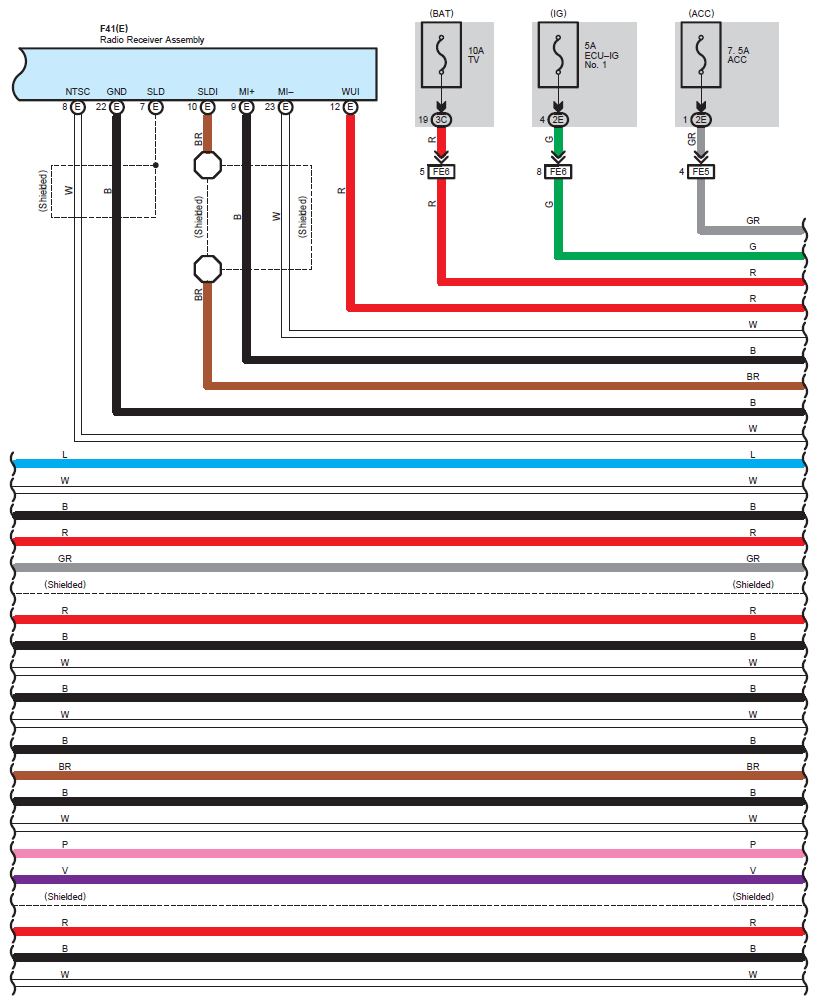

Fig 3: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (3 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

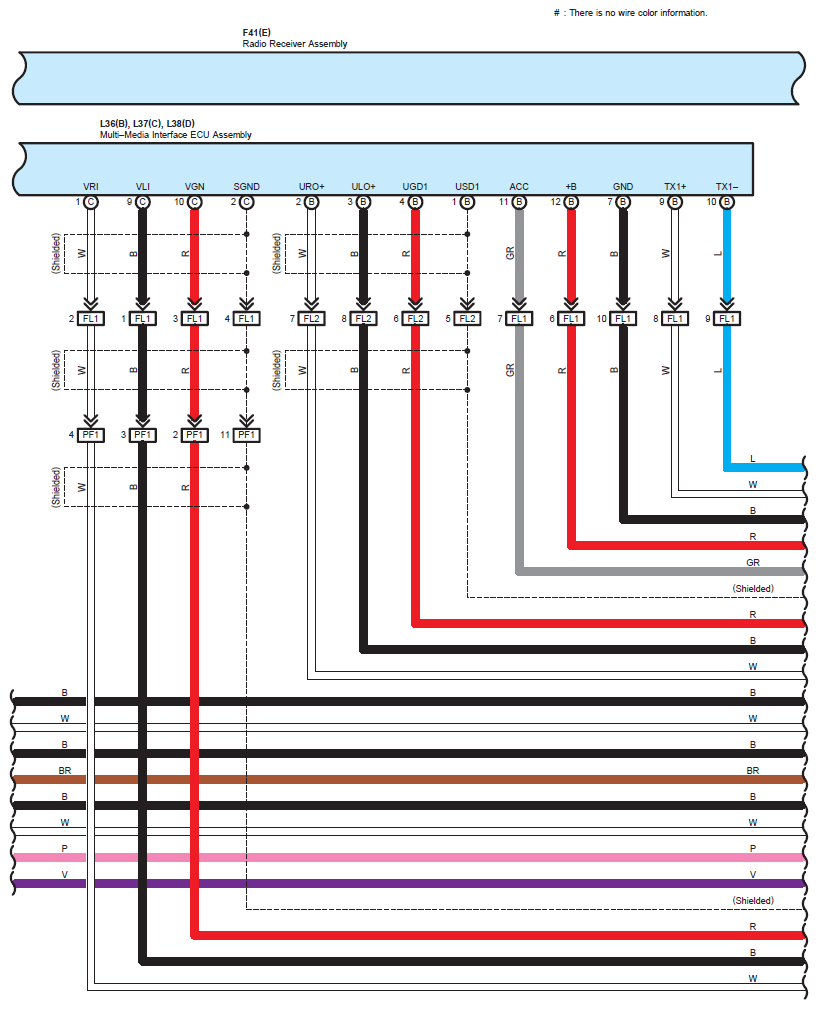

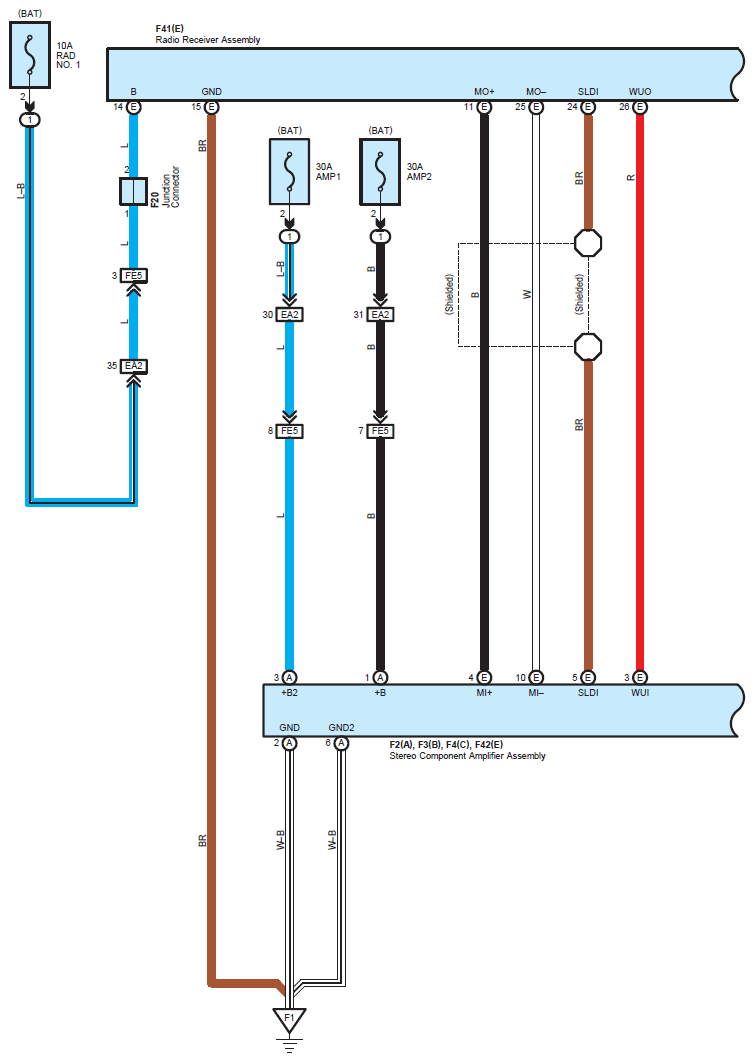

Fig 4: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (4 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

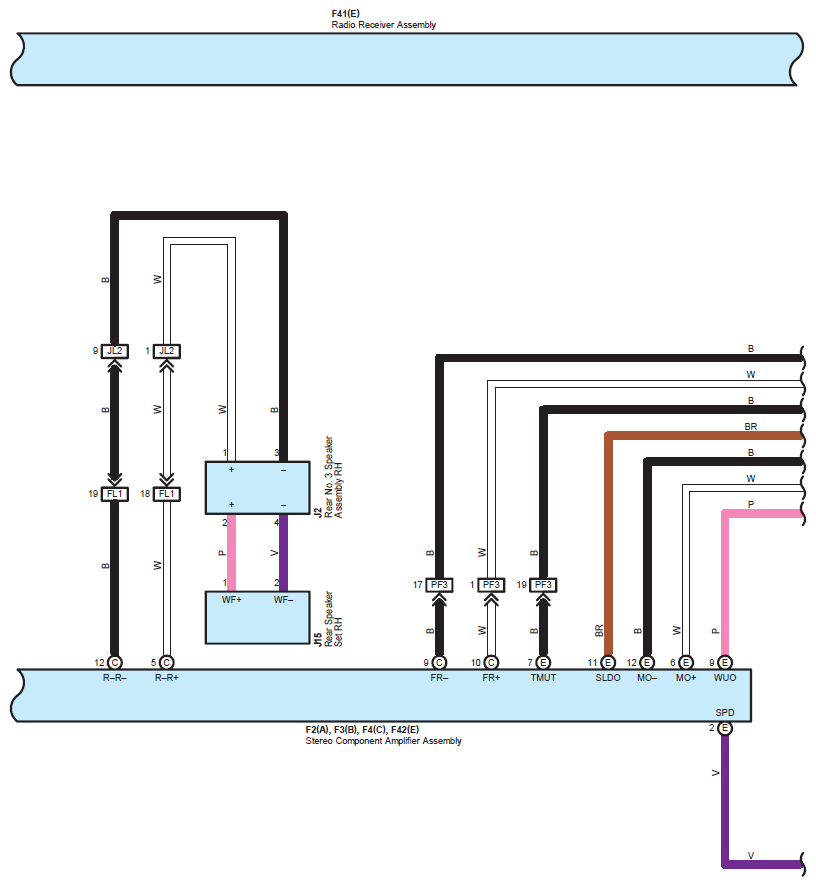

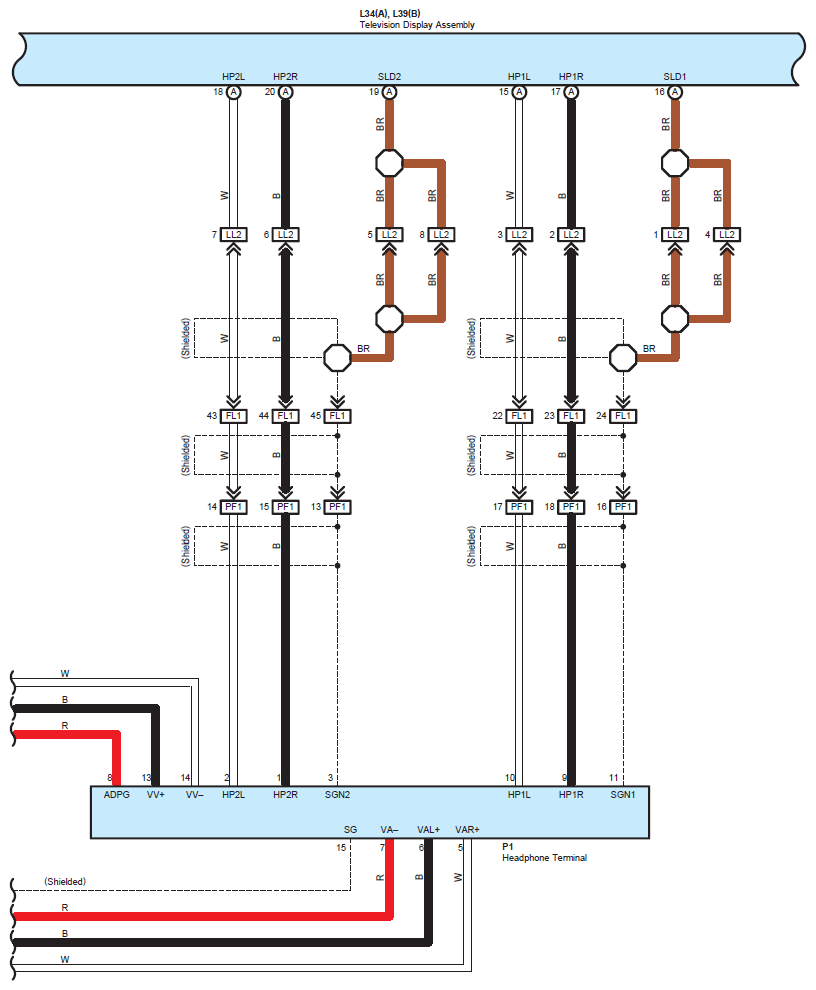

Fig 5: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (5 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

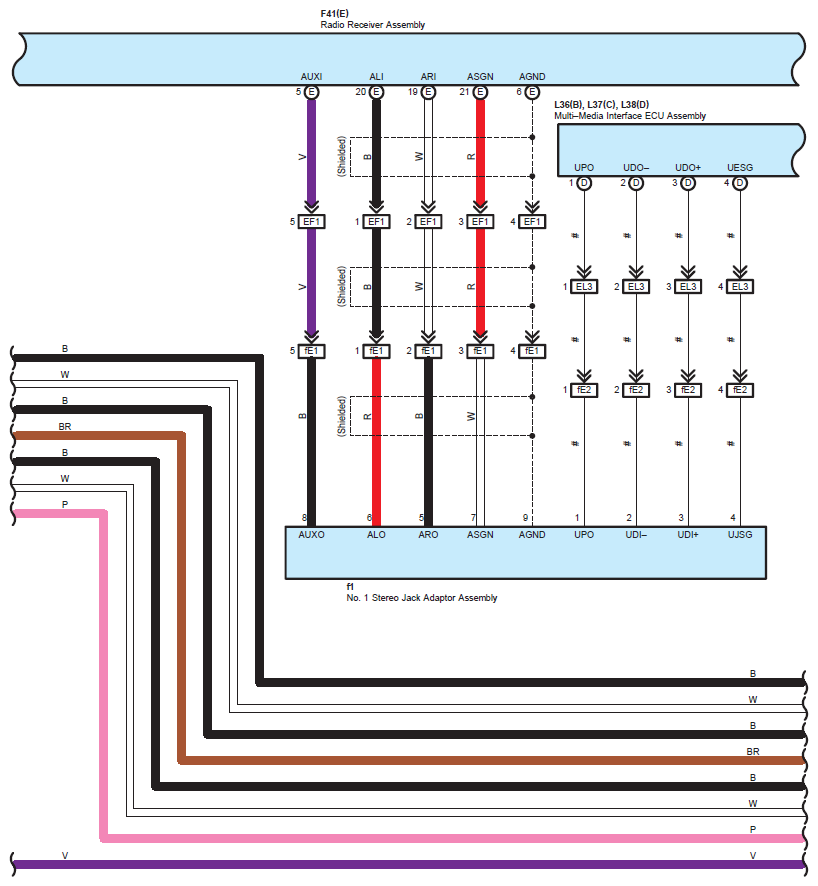

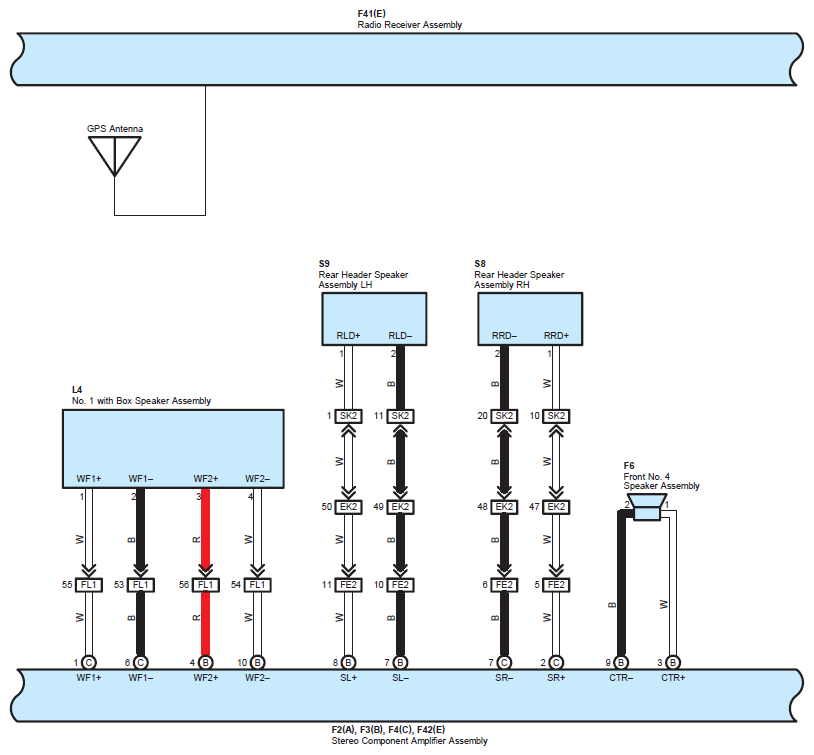

Fig 6: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (6 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

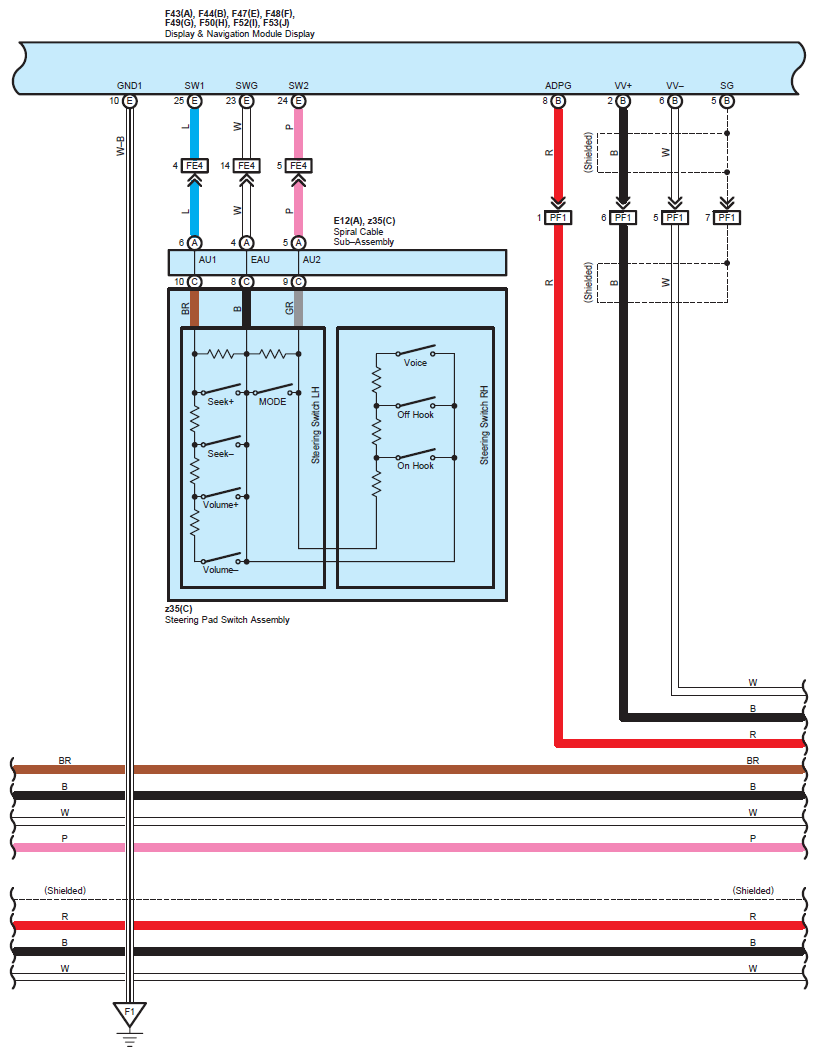

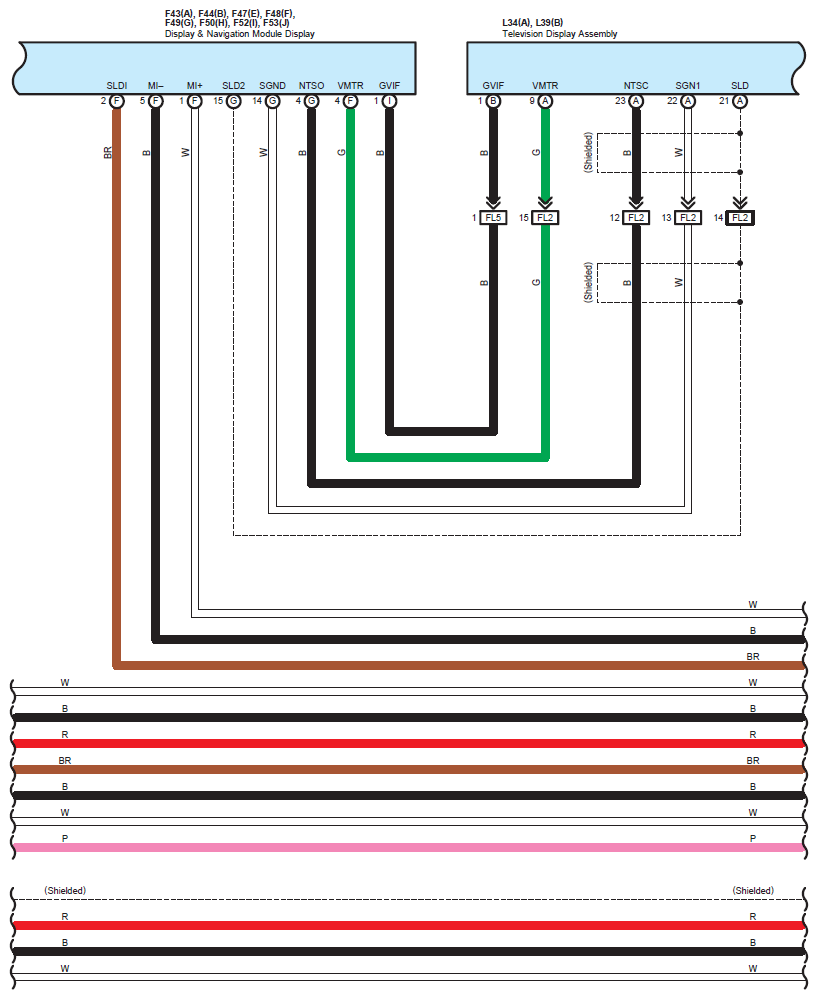

Fig 7: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (7 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

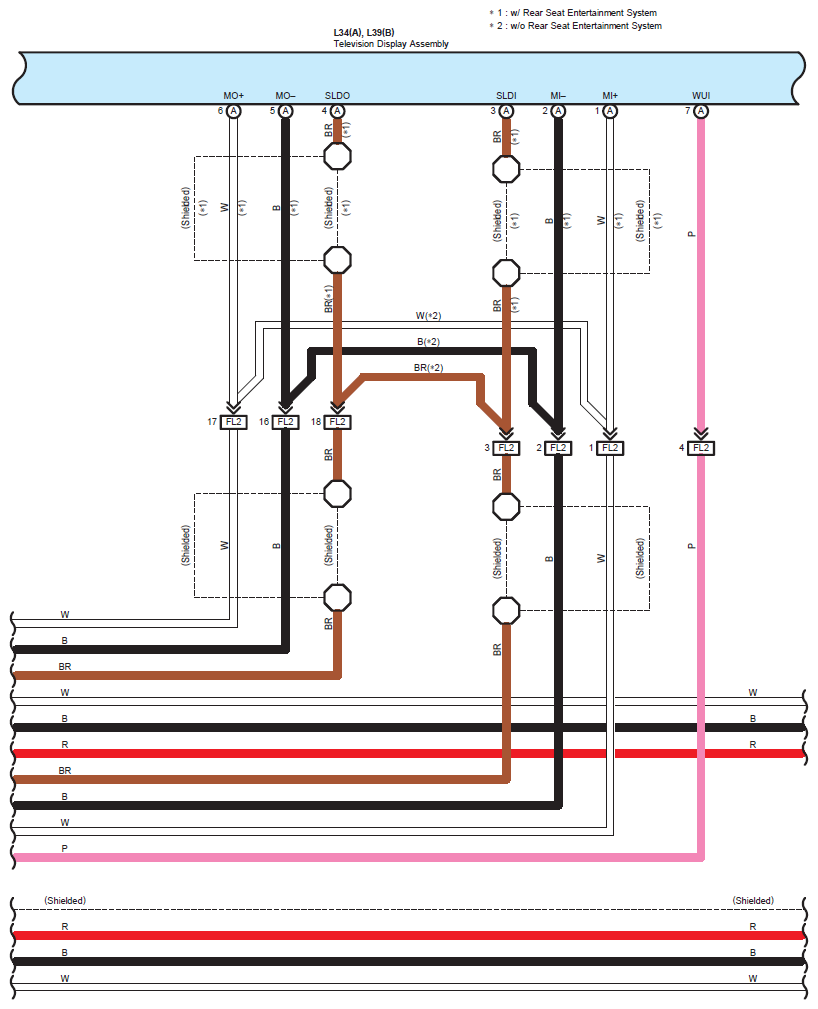

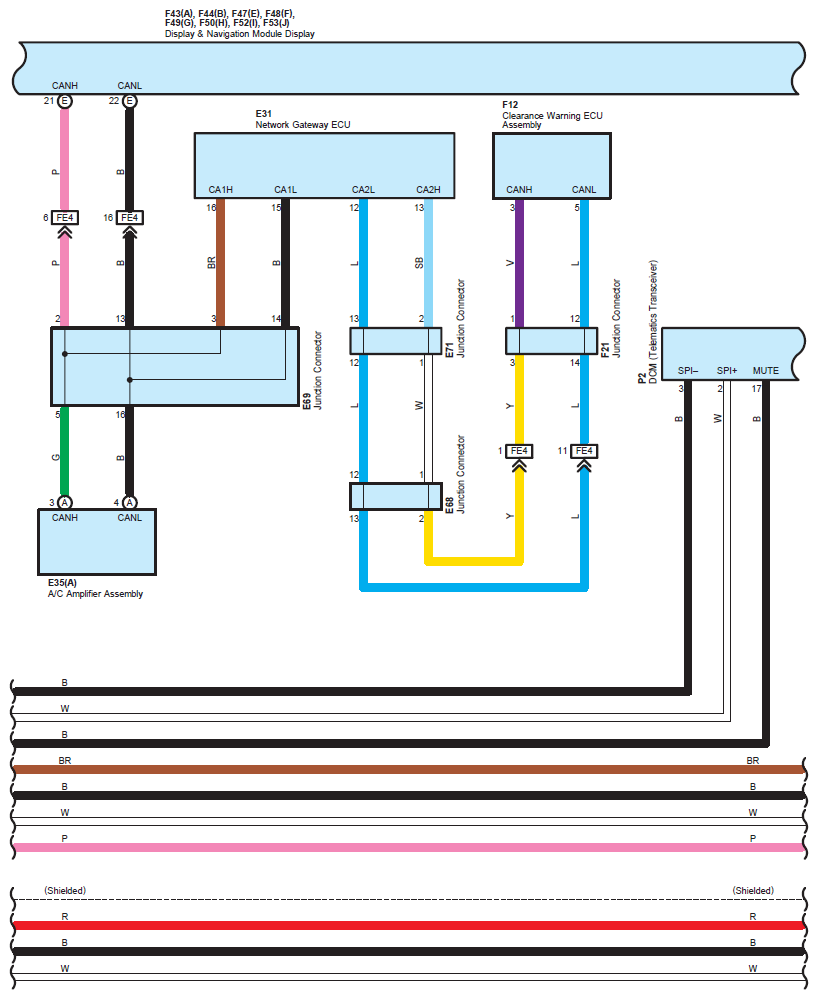

Fig 8: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (8 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (9 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (10 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (11 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (12 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (13 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (14 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (15 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (16 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (17 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Audio System (w/Navigation System), Multi-Display, Navigation System And Parking Assist (Rear View Monitor) Wiring Diagram (18 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
