PCV Valve: Installation: Installation

INSTALL PCV VALVE SUB-ASSEMBLY
1. Apply a light coat of engine oil to the O-ring of the valve.

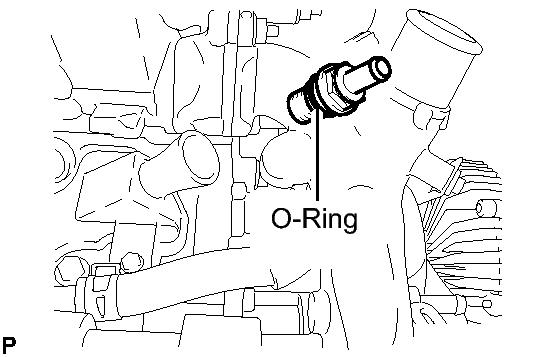

  Fig 1: Identifying O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  When reusing the PCV valve, inspect the O-ring. If the O-ring has scratches or cuts, replace the PCV valve.
2. Install the PCV valve.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

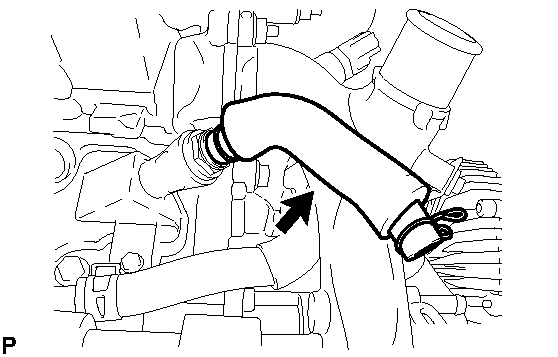

INSTALL PCV VALVE HOSE
1. Install the hose to the PCV valve.
INSTALL NO. 2 ENGINE COVER See step 11
INSTALL INTAKE MANIFOLD
1. Install the intake manifold, refer to INSTALLATION .
