Steering Column Assembly: Installation: Installation

  1. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT
    1. Align the part of the dust cover labeled A with the No. 2 steering intermediate shaft, and install the No. 2 steering intermediate shaft assembly to the steering link assembly.
      Fig 1: Locating No. 2 Steering Intermediate Shaft Bolt
      GTY109499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bolt.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

      NOTE:

      Be careful not to damage the dust cover.

  2. INSTALL STEERING COLUMN HOLE COVER SUB-ASSEMBLY
    1. Install the 4 bolts and nut.
      Fig 2: Locating Steering Column Hole Cover Bolts
      GTY215864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      NOTE:

      Do not fold back the boot part of the steering hole cover or extend it excessively. if it is extended excessively, return it to its original position.

      HINT:

      Install the steering intermediate shaft assembly from the inside of the vehicle.

    2. Install the clamp to the steering column hole cover.
  3. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Align the matchmarks on the No. 2 steering intermediate shaft assembly and the steering intermediate shaft assembly.
      Fig 3: Identifying Matchmarks On No. 2 Steering Intermediate Shaft Assembly And Steering Intermediate Shaft Assembly
      GTY109498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Install the steering intermediate shaft from the inside of the vehicle.

    2. Install the bolt.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

  4. INSTALL STEERING COLUMN ASSEMBLY
    1. Align the matchmarks on the steering intermediate shaft and the steering column.
      Fig 4: Identifying Matchmarks On Steering Intermediate Shaft And Steering Column
      GTY244539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bolt.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

    3. Install the steering column with the 4 nuts.
      Fig 5: Locating Steering Column Nuts
      GTY234520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

  5. INSTALL NO. 3 AIR DUCT SUB-ASSEMBLY  . Refer to INSTALLATION - Step 6
  6. CONNECT WIRE HARNESS PROTECTOR AND WIRE HARNESS
    1. Attach the 3 claws to connect the wire harness protector and wire harness.
      Fig 6: Identifying Claws On Wire Harness Protector And Wire Harness
      GTY109501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  . Refer to INSTALLATION - Step 1
  8. INSTALL NO. 1 SWITCH HOLE BASE  . Refer to INSTALLATION - Step 31
  9. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL  . Refer to INSTALLATION - Step 32
  10. INSTALL COWL SIDE TRIM BOARD LH  . Refer to INSTALLATION - Step 33
  11. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 34
  12. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 5
  13. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 37
  14. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH  . Refer to INSTALLATION - Step 38
  15. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH  . Refer to INSTALLATION - Step 39
  16. INSTALL INSTRUMENT SIDE PANEL LH  . Refer to INSTALLATION - Step 40
  17. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH  . Refer to INSTALLATION - Step 52
  18. INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION  . Refer to INSTALLATION - Step 53
  19. INSTALL COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    1. Using pliers, pinch the clamp and attach the claw to install the combination switch assembly with spiral cable sub-assembly to the steering column assembly.

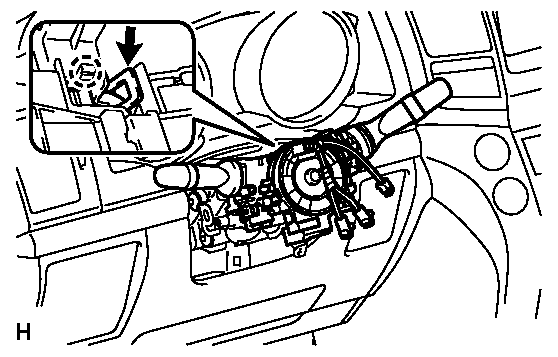

      Fig 7: Identifying Combination Switch Assembly With Spiral Cable Sub-Assembly
      GTY294110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 5 connectors to the combination switch with spiral cable.
      Fig 8: Locating Combination Switch Connectors
      GTY211871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL TILT AND TELESCOPIC MANUAL SWITCH
    1. Attach the claw to install the switch.
      Fig 9: Locating Tilt And Telescopic Manual Switch Connector
      GTY110419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the switch connector.
  21. INSTALL UPPER STEERING COLUMN COVER
    1. Attach the claw.
      Fig 10: Identifying Upper Steering Column Cover With Clips
      GTY244541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 4 clips to install the upper steering column cover onto the instrument cluster finish panel.
  22. INSTALL LOWER STEERING COLUMN COVER
    1. Attach the 2 claws to install the lower steering column cover.
      Fig 11: Identifying Lower Steering Column Cover With Screws And Claws
      GTY244540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the tilt and telescopic switch.

    2. Install the 3 screws.

      Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

  23. ADJUST SPIRAL CABLE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 4
  24. INSTALL STEERING WHEEL ASSEMBLY  See step  1
  25. INSTALL STEERING PAD  . Refer to INSTALLATION - Step 1
  26. INSTALL LOWER NO. 2 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 3
  27. INSTALL LOWER NO. 3 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 2
  28. CHECK FRONT WHEELS FACING STRAIGHT AHEAD
  29. INSTALL FRONT WHEELS
  30. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter, refer to CUSTOMIZE PARAMETERS .

  31. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light, refer to DIAGNOSIS SYSTEM .
