Pattern Select Switch Power Mode Circuit: Procedure

1. Remove the suspension control switch, refer to REMOVAL .

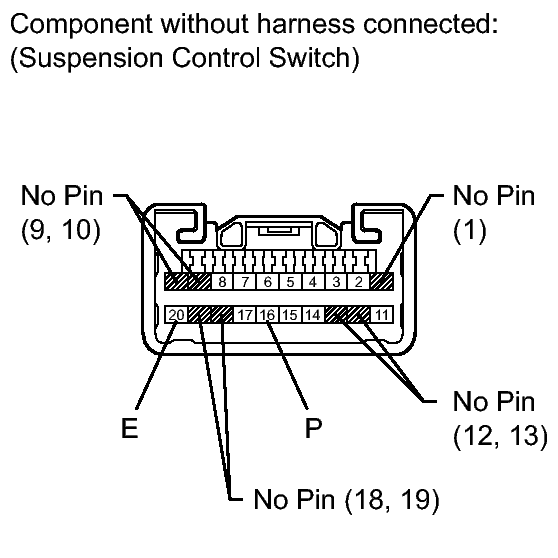

   Fig 1: Identifying Suspension control Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   16 (P) - 20 (E)	Pattern select (PWR) switch on	Below 1 Ω
   16 (P) - 20 (E)	Pattern select (PWR) switch off	10 kΩ or higher

NG → See step   5

OK: Go to next step

1. Disconnect the V4 suspension control switch connector.

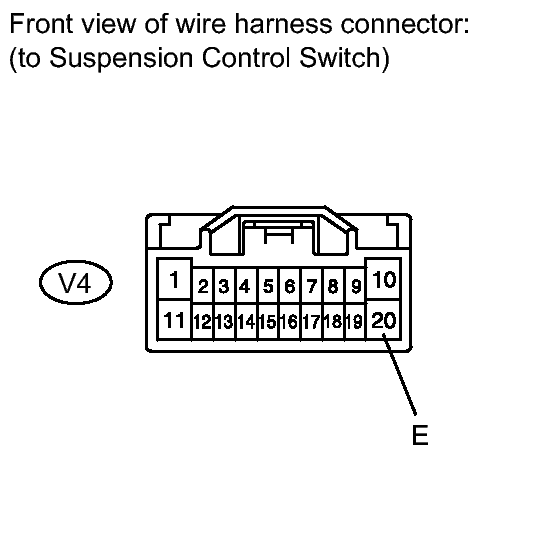

   Fig 2: Identifying V4 Suspension Control Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   V4-20 (E) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

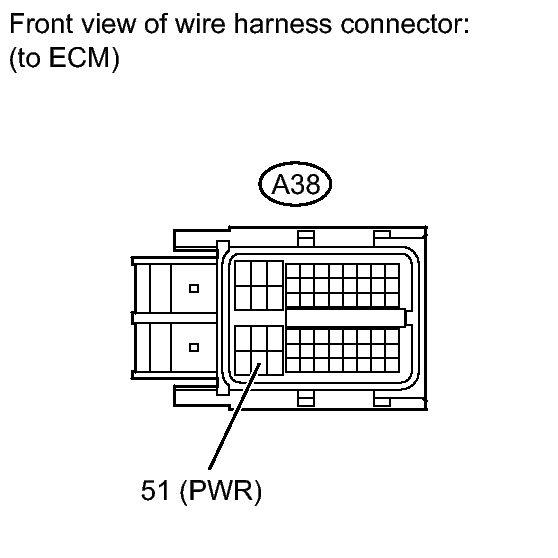

Fig 3: Identifying A38 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the A38 ECM connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   A38-51 (PWR) - Body ground	Pattern select (PWR) switch on	Below 1 Ω
   A38-51 (PWR) - Body ground	Pattern select (PWR) switch off	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   4
