Clock (w/o Multi-Display): Notes

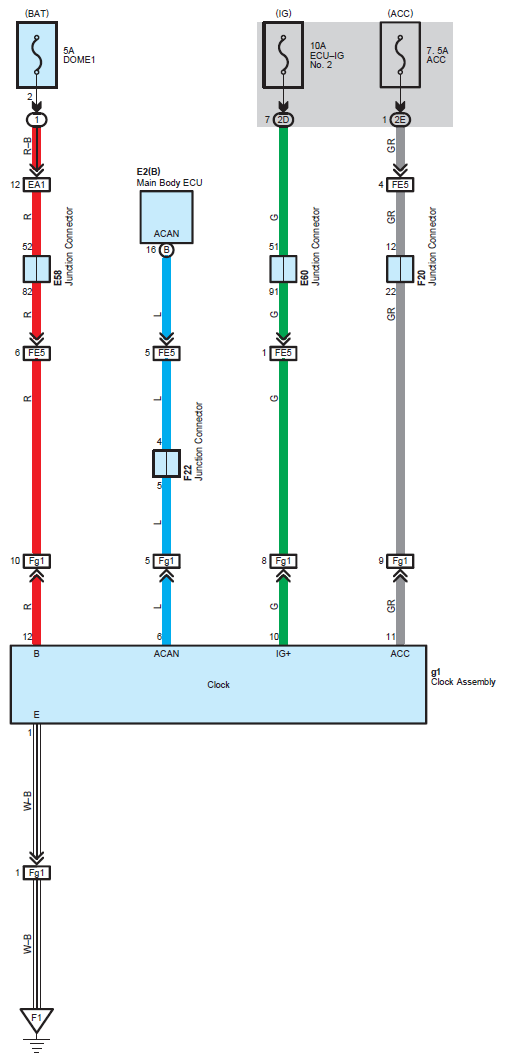

Fig 1: Clock (w/o Multi-Display) System Wiring Diagram
G07116132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
