Sliding Roof: Notes

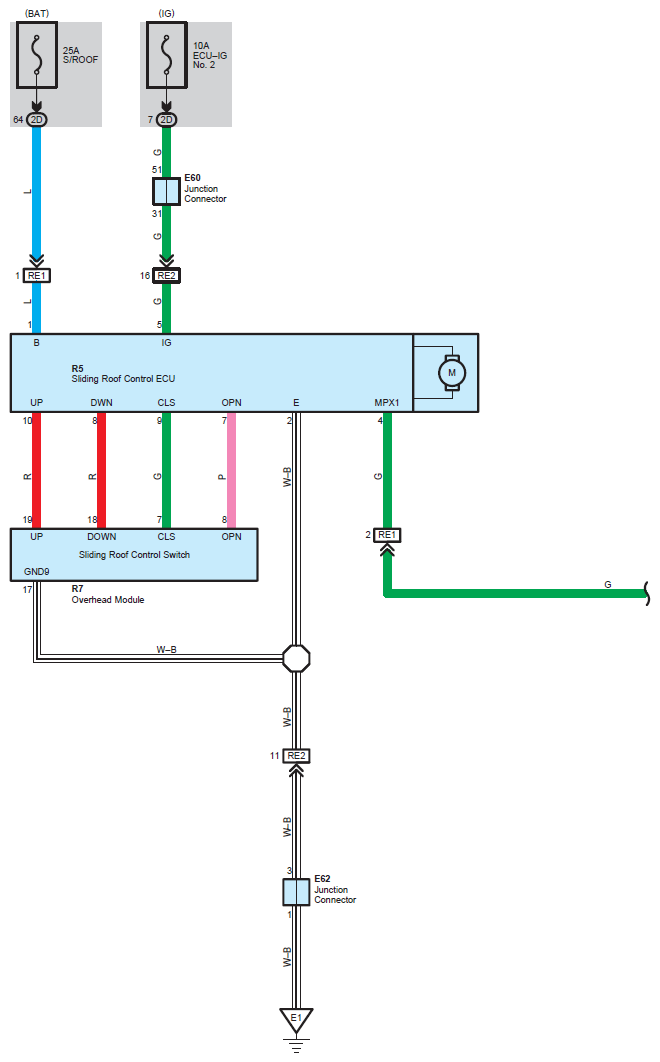

Fig 1: Sliding Roof System Wiring Diagram (1 Of 5)
G07116041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

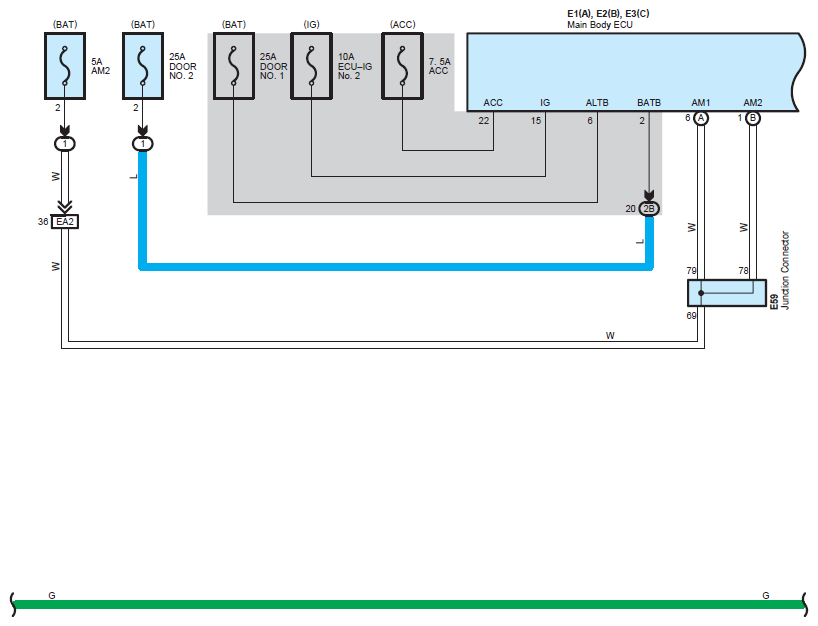

Fig 2: Sliding Roof System Wiring Diagram (2 Of 5)
G07116042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

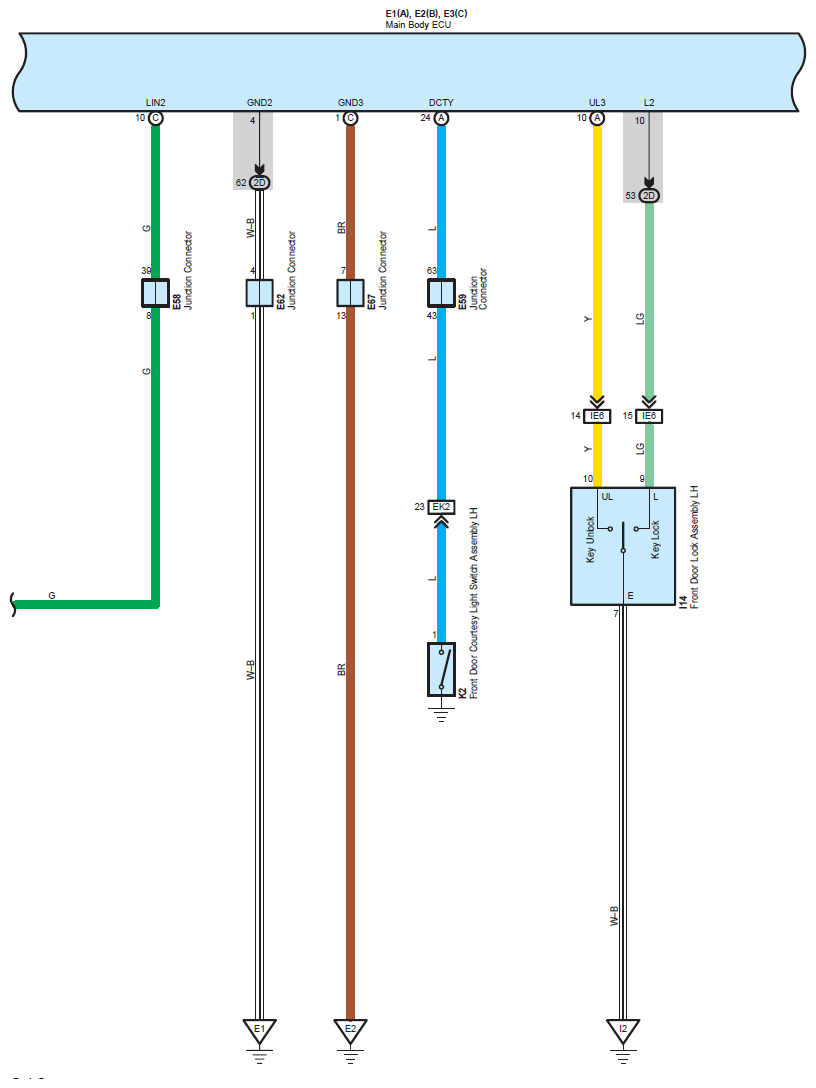

Fig 3: Sliding Roof System Wiring Diagram (3 Of 5)
G07116043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

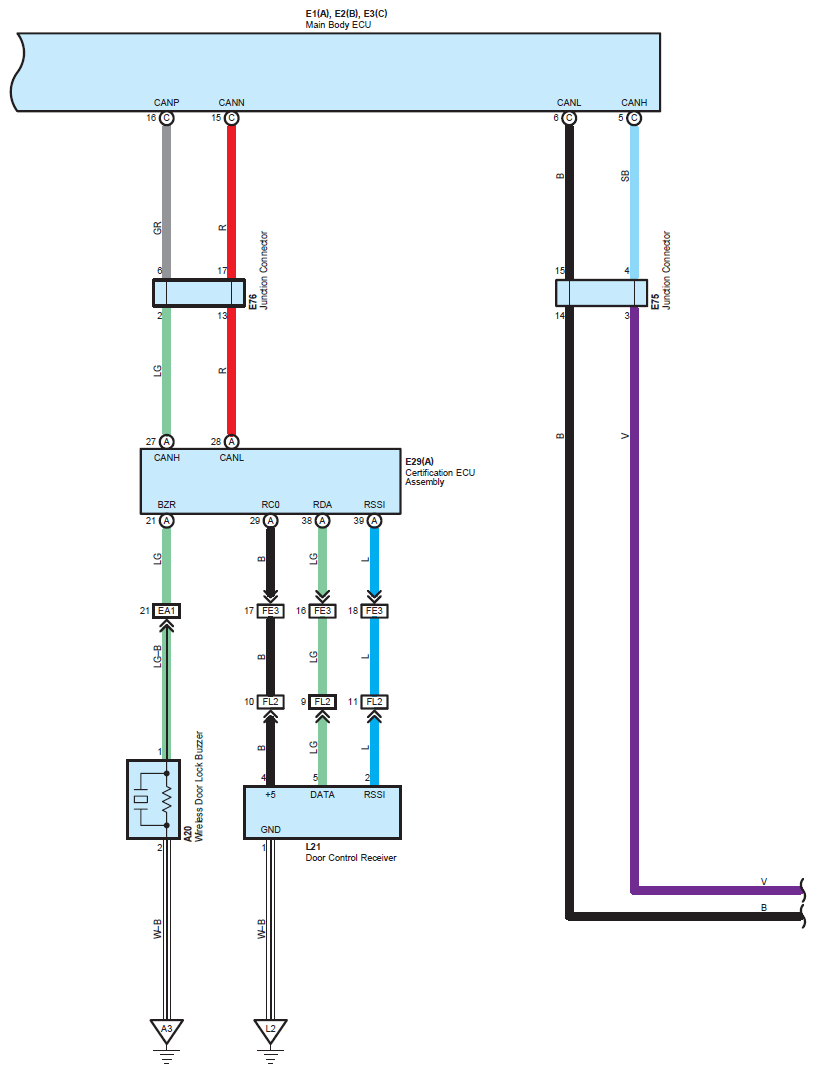

Fig 4: Sliding Roof System Wiring Diagram (4 Of 5)
G07116044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

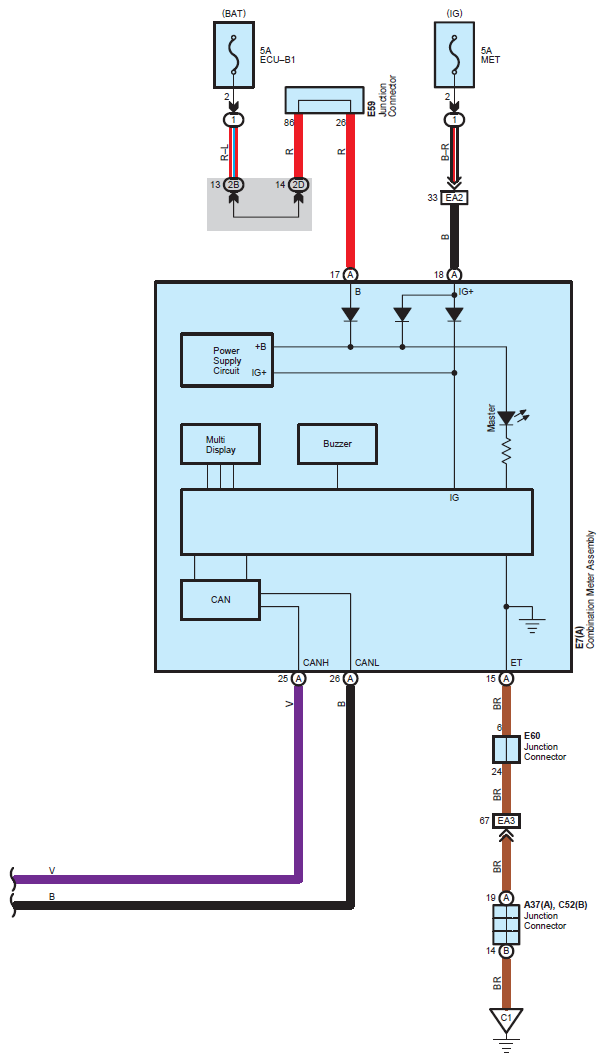

Fig 5: Sliding Roof System Wiring Diagram (5 Of 5)
G07116045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
