Pattern Select Switch Power Mode Circuit: Wiring Diagram

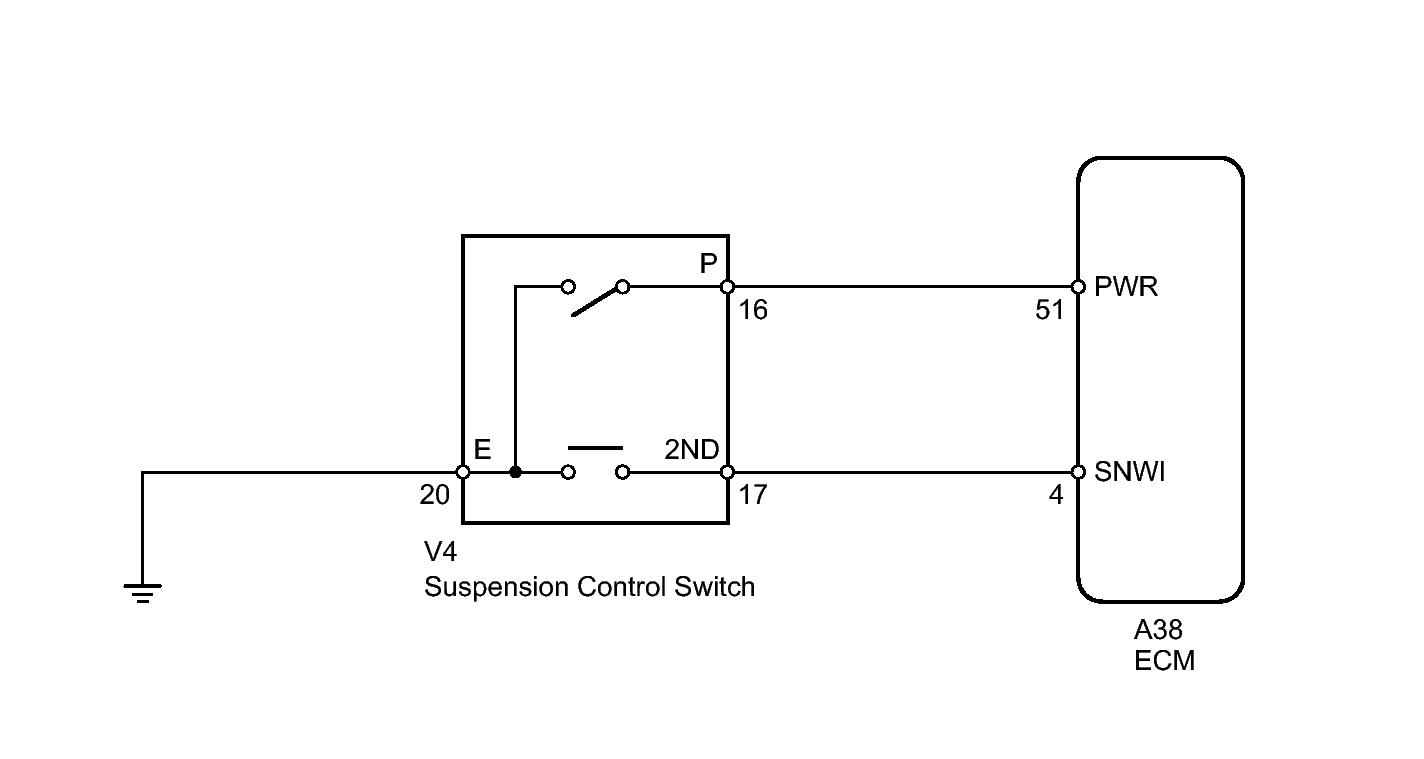

Fig 1: Suspension Control Switch - Wiring Diagram
GTY244665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
