HEATING / AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

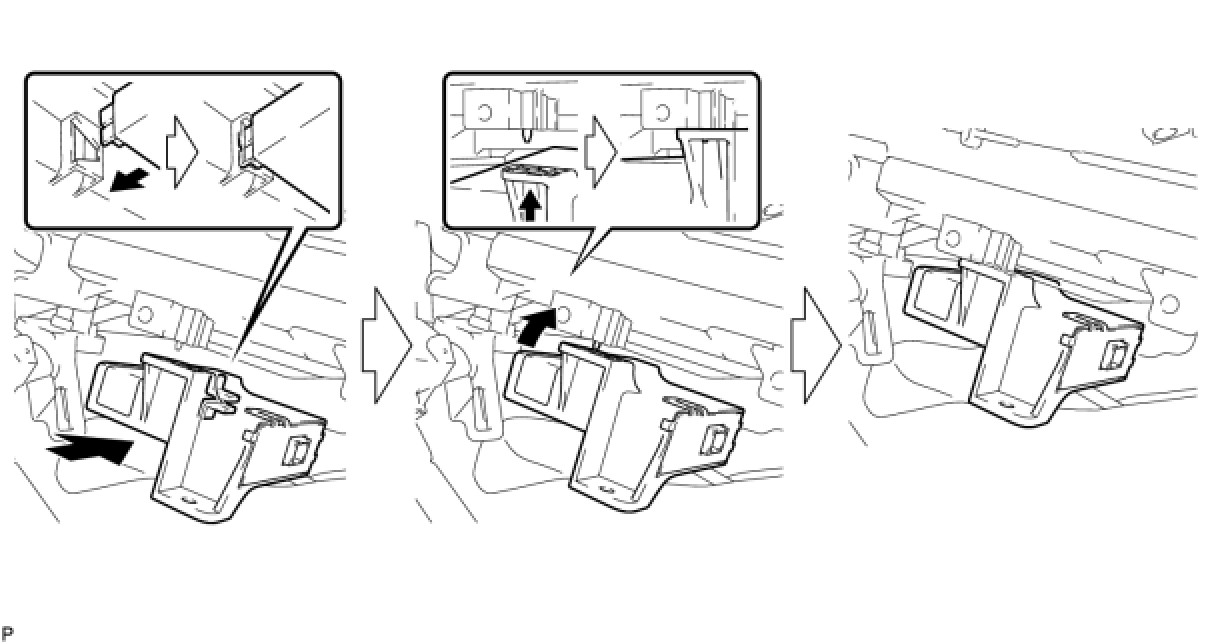

(a) Install the air conditioning amplifier assembly as shown in the illustration.

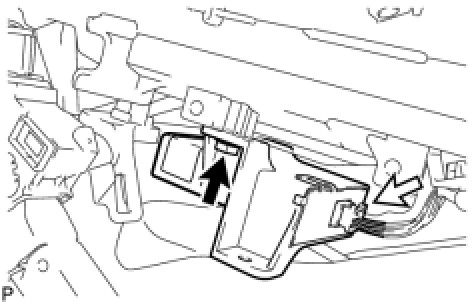

(b) Install the screw.





(c) Connect the connector.

2. INSTALL FRONT NO. 1 CONSOLE BOX INSERT Installation
