Installation

HEATING / AIR CONDITIONING: AIR CONDITIONING PRESSURE SENSOR: INSTALLATION

1. INSTALL AIR CONDITIONING PRESSURE SENSOR

(a) Sufficiently apply compressor oil to a new air conditioning pressure sensor.

Compressor oil:

ND-OIL 8 or equivalent

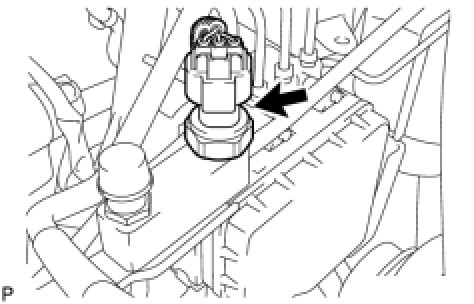

(b) Install the new air conditioning pressure sensor.

Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)





(c) Connect the connector.

2. CHARGE WITH REFRIGERANT Service and Repair

3. WARM UP ENGINE Service and Repair

4. INSPECT FOR REFRIGERANT LEAK Service and Repair
