Initialization

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: INITIALIZATION

1. OIL MAINTENANCE REMINDER RESET PROCEDURE

HINT

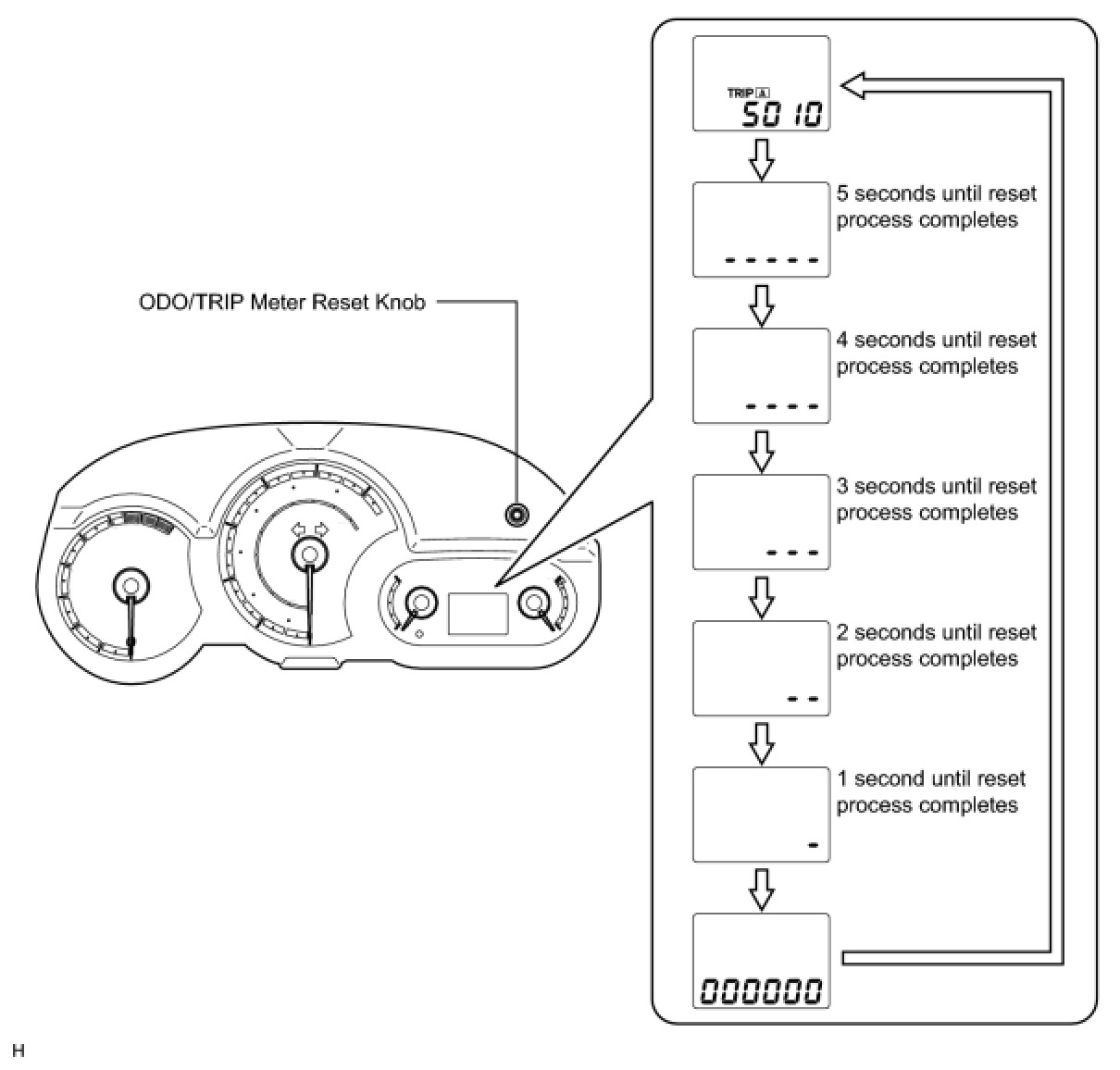

* The ODO/TRIP meter reset knob is located on the right side of the combination meter.
* This reset operation is required only for U.S.A.

(a) Turn the ignition switch to ON.

(b) Press the ODO/TRIP meter reset knob until the TRIP A meter appears.

(c) Turn the ignition switch off.

(d) Turn the ignition switch to ON while pressing and holding the ODO/TRIP meter reset knob. Hold the ODO/TRIP meter reset knob until the following conditions are met and 5 seconds have passed.





The TRIP A meter shows "000000".

The master caution indicator light illuminates.

(e) When "000000" disappears and the master caution indicator light turns off, the reset is complete.
