Installation

2AZ-FE ENGINE CONTROL: MASS AIR FLOW METER: INSTALLATION

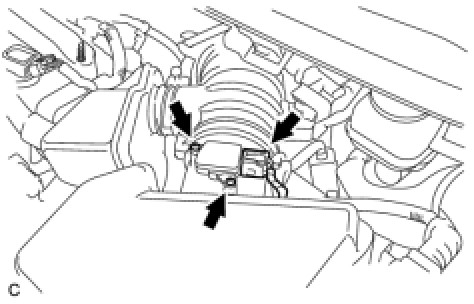

1. INSTALL MASS AIR FLOW METER

(a) Install the mass air flow meter with the 2 screws.





Torque : 1.0 Nm (10 kgf-cm, 9 in-lbf)

NOTICE:
Make sure that the O-ring is not cracked or does not jump out of position during installation.

(b) Connect the mass air flow meter connector.
