Coolant Temperature Sensor/Switch (For Computer): Locations

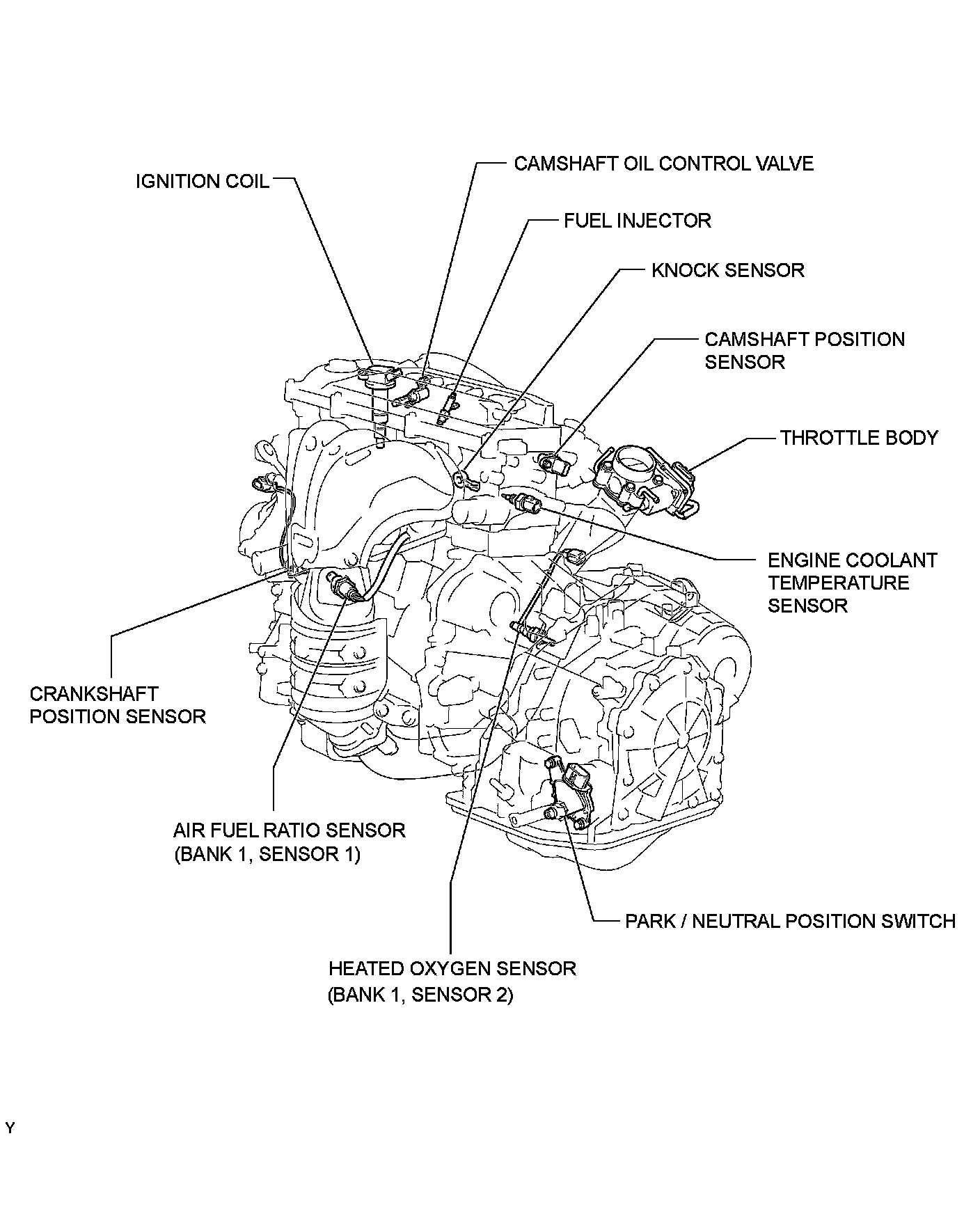

2AZ-FE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION
