Relay

2AZ-FE ENGINE CONTROL: RELAY: ON-VEHICLE INSPECTION

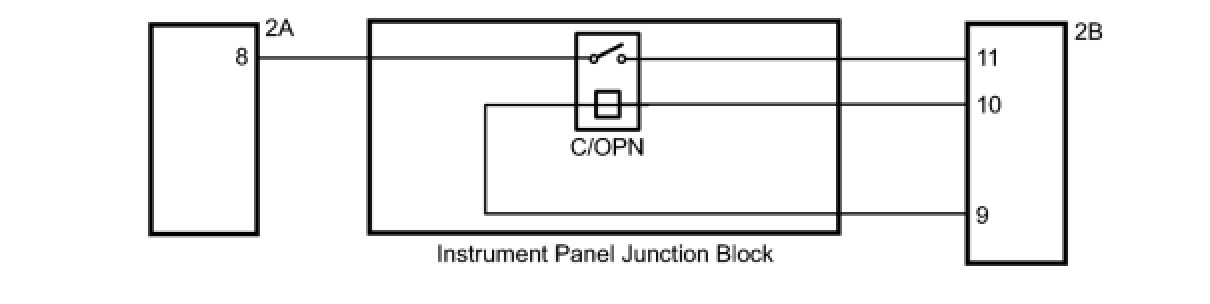

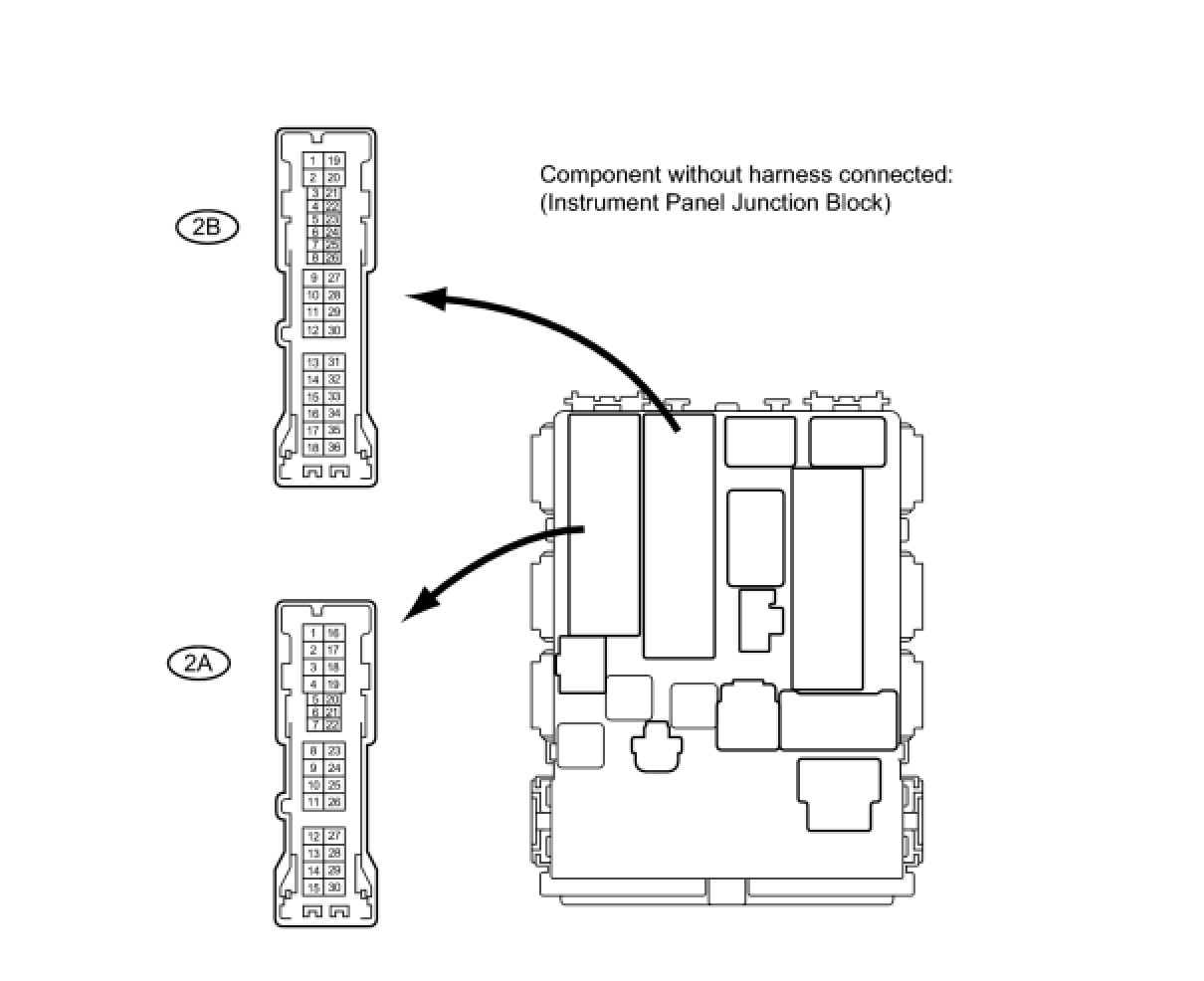

1. INSPECT CIRCUIT OPENING RELAY

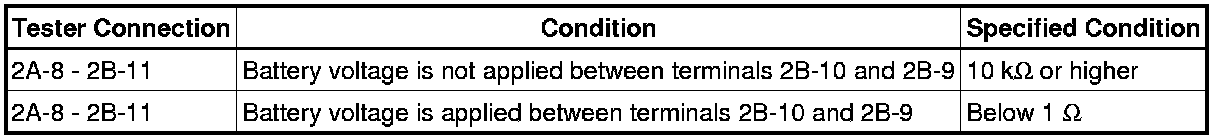

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the resistance is not as specified, replace the instrument panel junction block.
