EFI Relay: Inspection: Inspection
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT EFI RELAY
- Inspect EFI relay

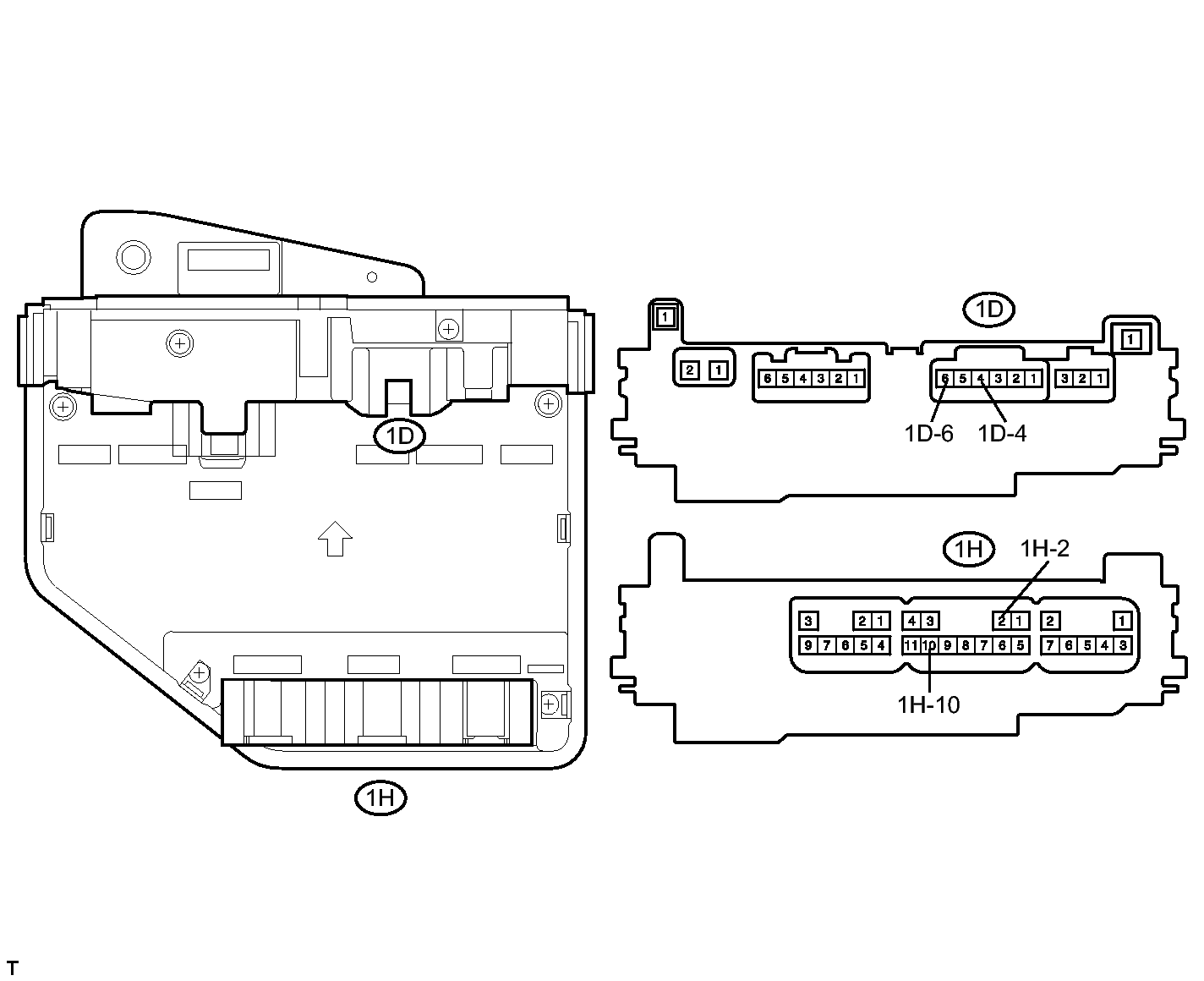

- Using an ohmmeter, measure the resistance between the terminals.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Resistance
Tester Connection Specified Condition 1D-4 - 1D-6 10 kΩ or higher 1D-4 - 1D-6 Below 1 Ω
(Apply battery voltage to terminals 1H-10 and 1H-2)If the result is not as specified, replace the engine room junction block assembly.
- Using an ohmmeter, measure the resistance between the terminals.
- Inspect EFI relay
