DTC B2285: Steering Lock Position Signal Circuit Malfunction; DTC B2288: Steering Lock Signal Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

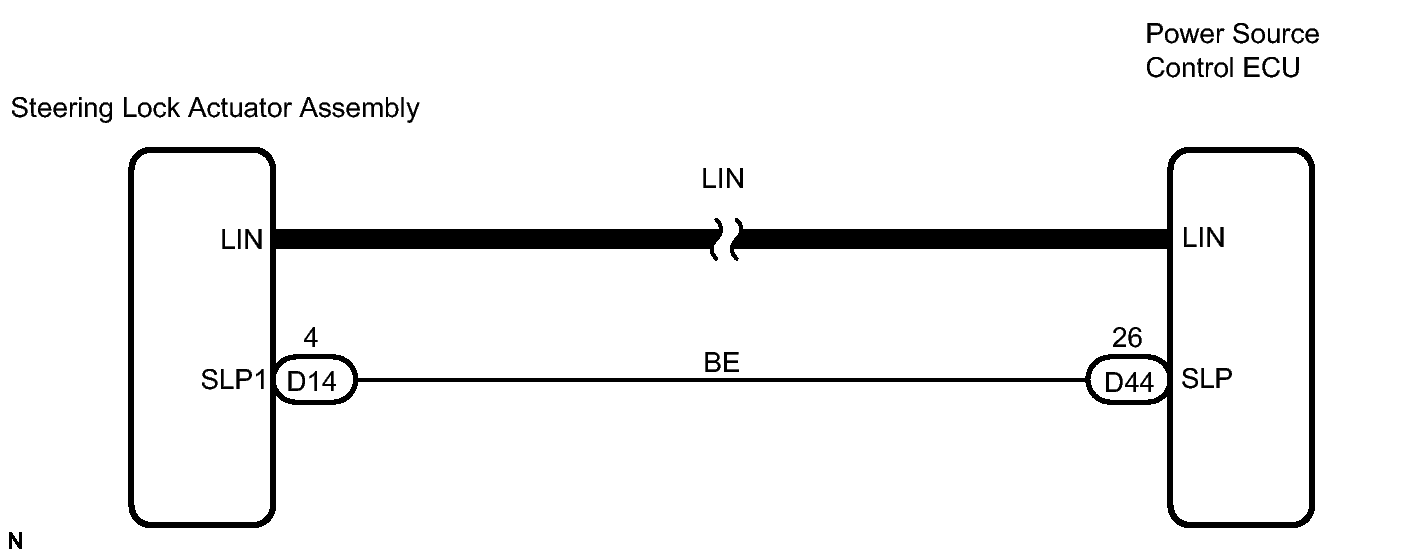

Fig 1: Steering Lock Actuator Assembly Circuit - Wiring Diagram
GTY297604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
