Headlight Relay: Inspection: Inspection
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

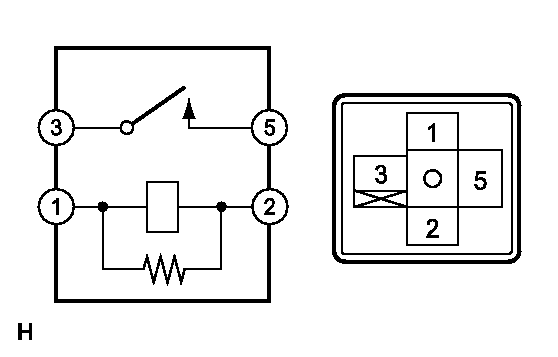

- INSPECT HEADLIGHT RELAY
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
| Tester connection |
Specified condition |
| 3 - 5 |
10 kΩ or higher |
| 3 - 5 |
Below 1 Ω
(When battery voltage is applied to terminal 1 - 2) |
