Steering Column Assembly: Disassembly: Disassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE TRANSPONDER KEY AMPLIFIER
1. Widen the claws hanging onto the upper bracket by approximately 1.0 mm (0.039 in.) using a screwdriver.

  Fig 1: Removing Transponder Key Amplifier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the transponder key amplifier with the claw open.
  NOTE:
  Using excessive force may damage the case.
REMOVE STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY
1. Using a center punch, mark the center of the 2 tapered-head bolts.

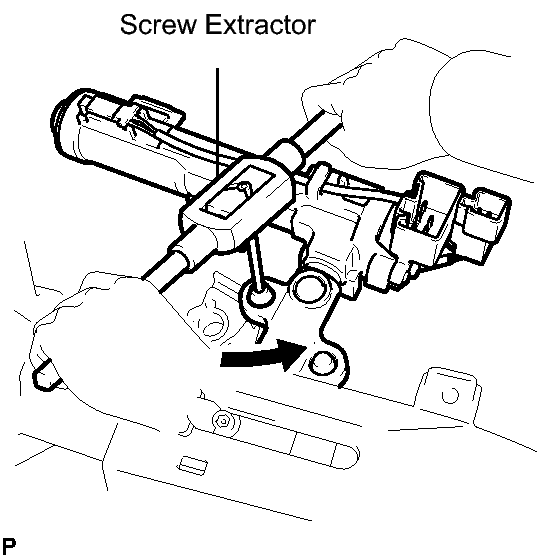

  Fig 2: Removing Steering Column Upper With Switch Bracket Assembly Using A Screw Extractor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a 3 to 4 mm (0.12 to 0.16 in.) drill, drill a hole in the 2 bolts.
3. Using a screw extractor, remove the 2 bolts and steering column upper w/ switch bracket assembly from the steering column assembly.
REMOVE IGNITION SWITCH LOCK CYLINDER ASSEMBLY
1. Put the ignition switch lock cylinder assembly in the ACC position.

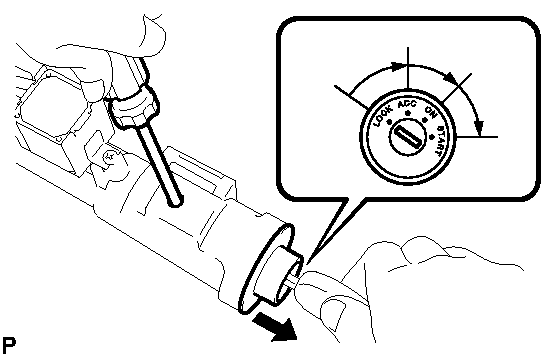

  Fig 3: Removing Ignition Switch Lock Cylinder Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push down the stop pin with a screwdriver, and pull out the ignition switch lock cylinder assembly.
REMOVE UN-LOCK WARNING SWITCH ASSEMBLY
1. Separate the un-lock warning switch assembly connector from the ignition or starter switch assembly.

  Fig 4: Locating Unlock Warning Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the un-lock warning switch assembly by pushing up the claw of the center part and releasing the 2 claws.

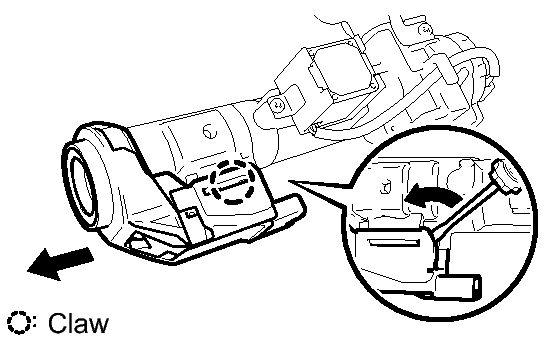

  Fig 5: Locating Un-Lock Warning Switch Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the secondary locking device.

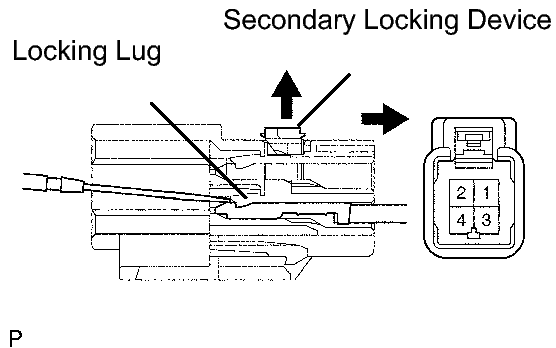

  Fig 6: Disengaging Locking Lug Of Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screwdriver, disengage the locking lug of terminals 3 and 4, and pull the terminals out from the rear side of the un-lock warning switch assembly connector.
REMOVE KEY INTER LOCK SOLENOID
1. Remove the 2 screws and key inter lock solenoid from the steering column upper w/ switch bracket assembly.

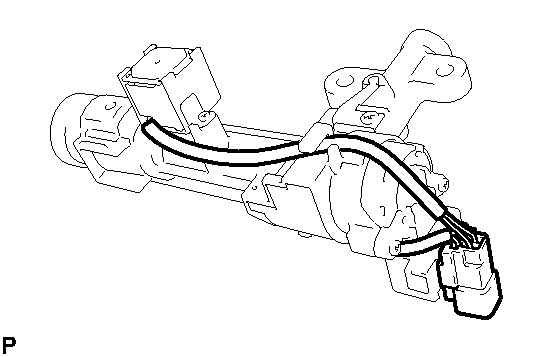

  Fig 7: Identifying Key Inter Lock Solenoid And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE IGNITION OR STARTER SWITCH ASSEMBLY
1. Remove the 2 screws and ignition or starter switch assembly from the steering column upper w/ switch bracket assembly.

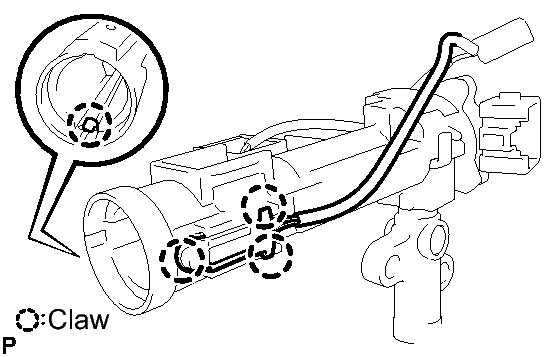

  Fig 8: Locating Ignition Starter Switch Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING LOCK ACTUATOR ASSEMBLY
1. Using a center punch, mark the center of the 2 tapered-head bolts.

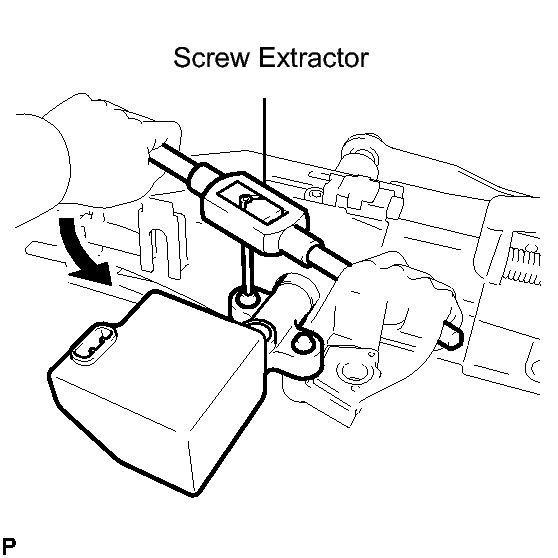

  Fig 9: Removing Steering Lock Actuator Assembly Using A Screw extractor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a 3 to 4 mm (0.12 to 0.16 in.) drill, drill a hole in the 2 bolts.
3. Using a screw extractor, remove the 2 bolts and steering lock actuator assembly from the steering column assembly.
