Section 17 (Fuel System (2AZ-FE) (Service Information))
>>
Fuel Sender Gauge Assembly
>>
Components
>>
Illustration
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Sender Gauge Assembly: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

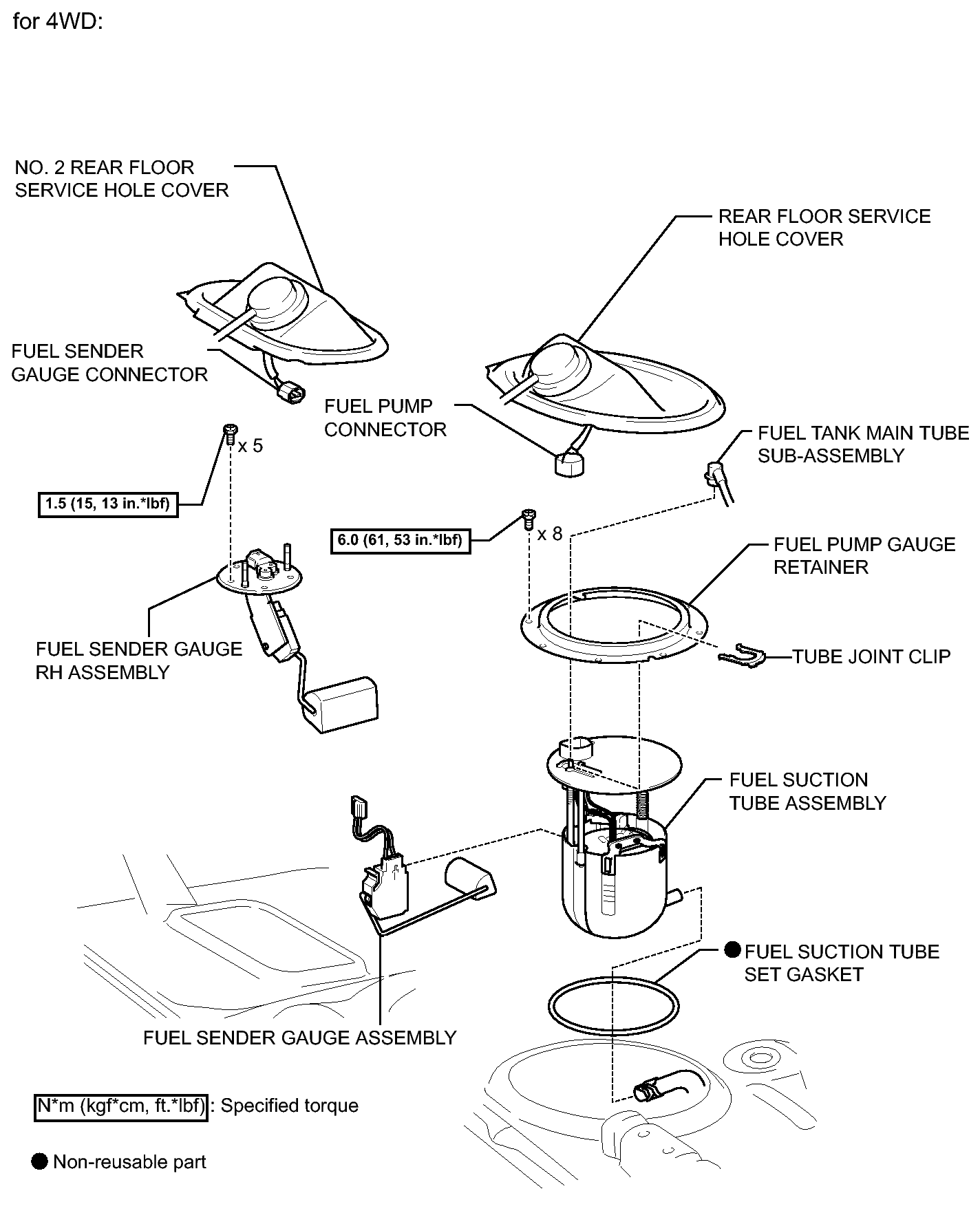

Fig 1: Identifying Fuel Sender Gauge Assembly Replacement Components With Torque Specifications (For 4WD) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

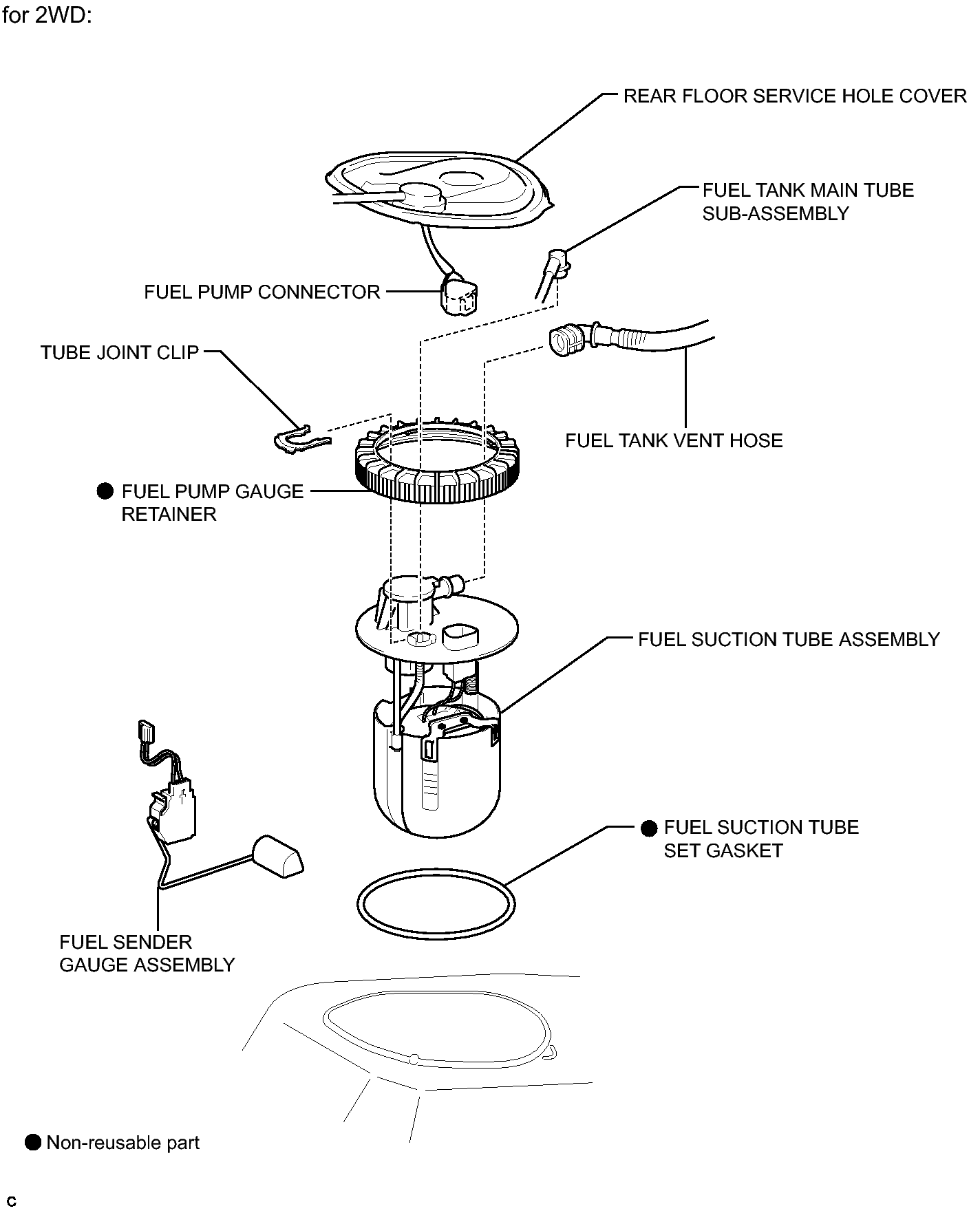

Fig 1: Identifying Fuel Sender Gauge Assembly Replacement Components (For 2WD) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
