INSTALL MANUAL VALVE
1. Install the manual valve to the valve body assembly.
INSTALL TRANSMISSION VALVE BODY ASSEMBLY
1. Install the spring and check ball body.

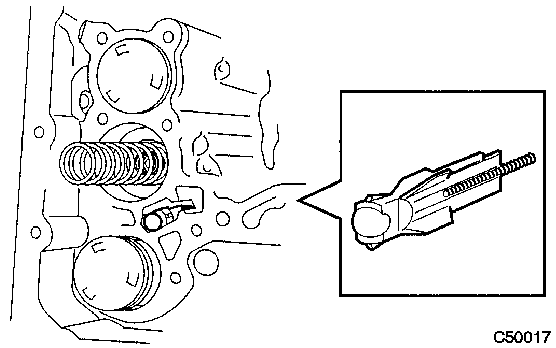

  Fig 1: Remove/Install Check Ball Body And Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the groove of the manual valve with the pin of the lever.

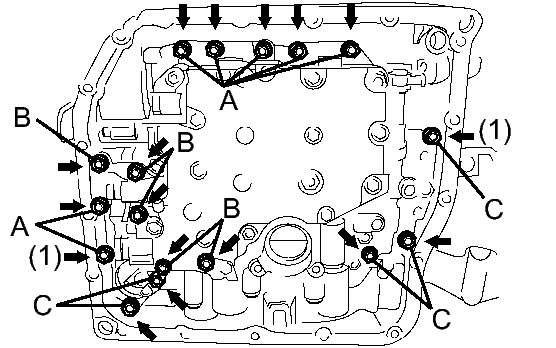

  Fig 2: Locating Transaxle Case Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the valve body with the 17 bolts.
  Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)
  NOTE:
  - Push the valve body against the accumulator piston spring and the check ball body to install it.
  - Temporarily tighten the bolts marked (1) in the illustration first because they are positioning bolts.
  Bolt length

  Bolt A

  25 mm (0.984 in.)

  Bolt B

  57 mm (2.244 in.)

  Bolt C

  41 mm (1.614 in.)
INSTALL VALVE BODY OIL STRAINER ASSEMBLY
1. Coat a new O-ring with ATF WS.

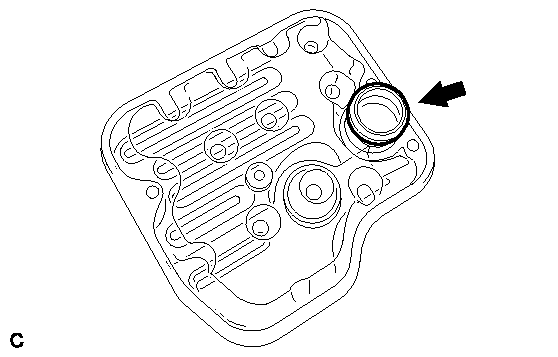

  Fig 3: Remove/Install Oil Strainer O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the O-ring to the oil strainer.
3. Install the oil strainer with the 3 bolts.

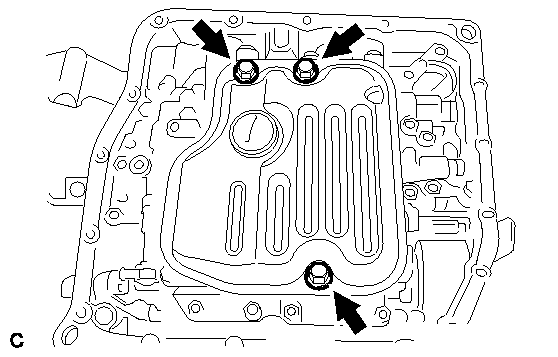

  Fig 4: Remove/Install Oil Strainer Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)
INSTALL TRANSMISSION WIRE
1. Coat the O-ring with ATF WS.

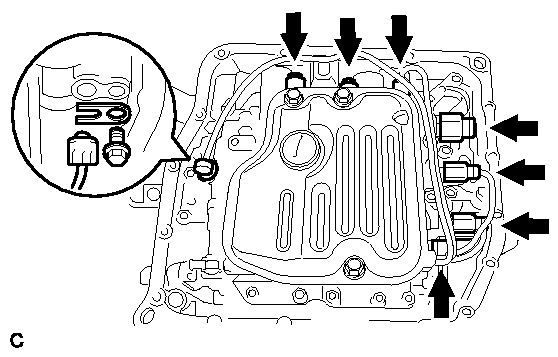

  Fig 5: Locating Shift Solenoid Valve Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the ATF temperature sensor with the lock plate and bolt.
  Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)
3. Connect the transmission wire to the 7 shift solenoid valve connectors.
INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY See step 3
INSTALL ENGINE UNDER COVER LH
ADD AUTOMATIC TRANSAXLE FLUID
INSPECT TRANSAXLE FLUID LEVEL See step 1
