Engine Coolant Temperature Sensor: Removal: Removal

  1. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 1
  2. REMOVE NO. 2 CYLINDER HEAD COVER  . Refer to REMOVAL - Step 10
  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE  See step  3
  4. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.

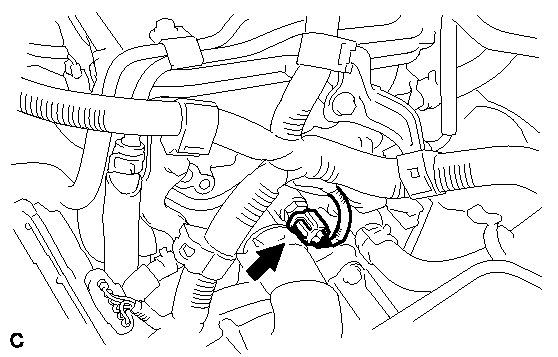

      Fig 1: Locating Engine Coolant Temperature Sensor Connector
      GTY194541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the engine coolant temperature sensor and gasket.

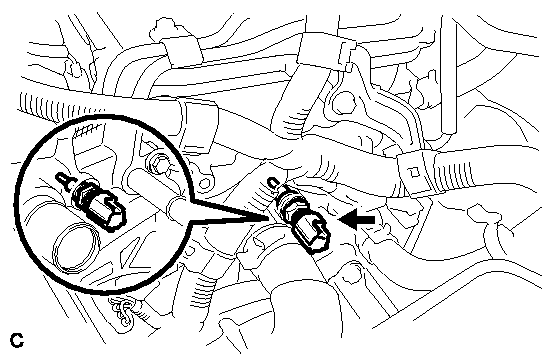

      Fig 2: Remove/Install Engine Coolant Temperature Sensor
      GTY194542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
