Fuel Pressure Regulator: Installation: Installation

  1. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
    1. Apply gasoline to 2 new O-rings and then install them to the fuel pressure regulator assembly.

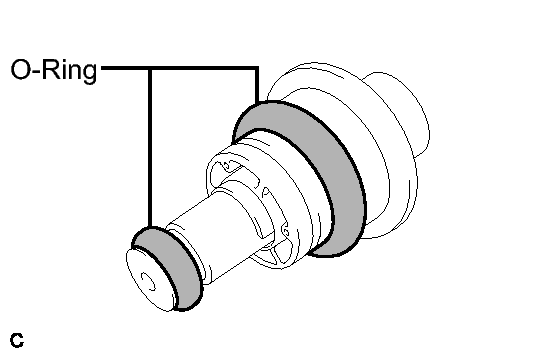

      Fig 1: View Of Fuel Pressure Regulator Assembly O-Rings
      GTY193016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the fuel pressure regulator assembly.

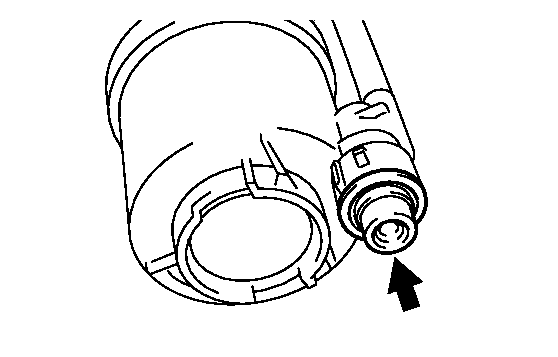

      Fig 2: Locating Fuel Pressure Regulator Assembly
      GTY167675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL PUMP  See step  1
  3. INSTALL FUEL SENDER GAUGE ASSEMBLY  See step  1
  4. INSTALL FUEL SUCTION TUBE ASSEMBLY
    1. Install the fuel suction tube assembly to the fuel tank assembly. Refer to INSTALLATION .
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. INSPECT FOR FUEL LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
