WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

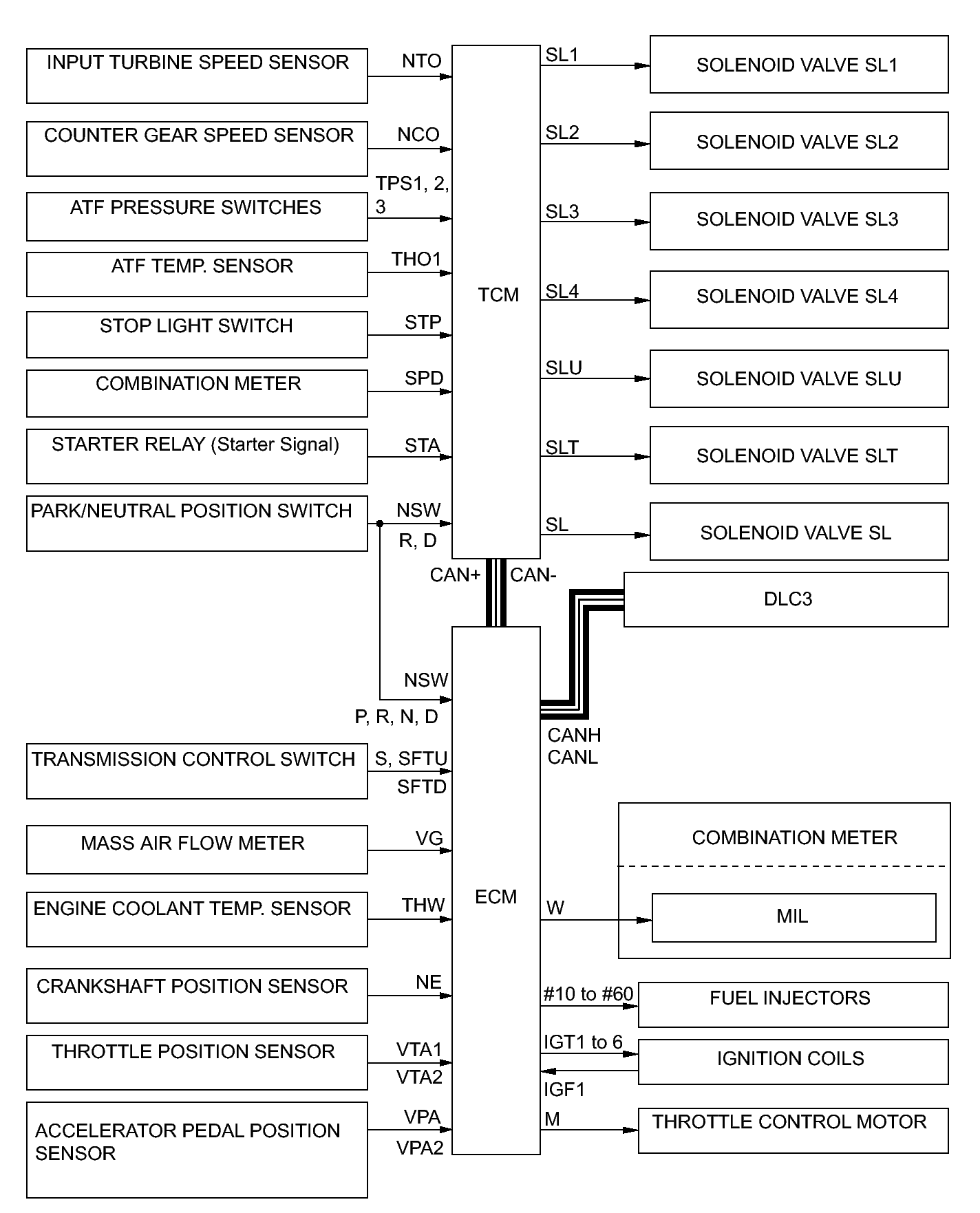

The configuration of the electronic control system in the U660E automatic transaxle is as shown in the following chart.
Fig 1: Identifying Automatic Transaxle System Diagram
