Section 42 (Charging System (Service Information)): Generator: Disassembly: Disassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE GENERATOR WITH CLUTCH PULLEY

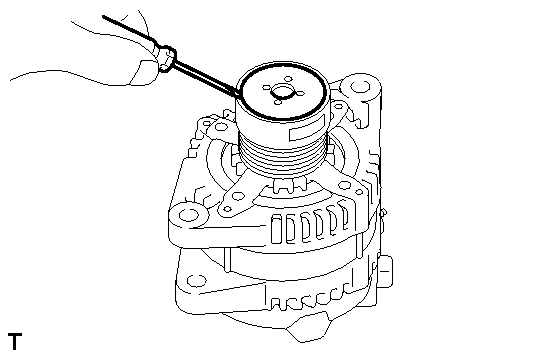

1. Using a screwdriver, remove the generator pulley cap.

  Fig 1: Removing Generator Pulley Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

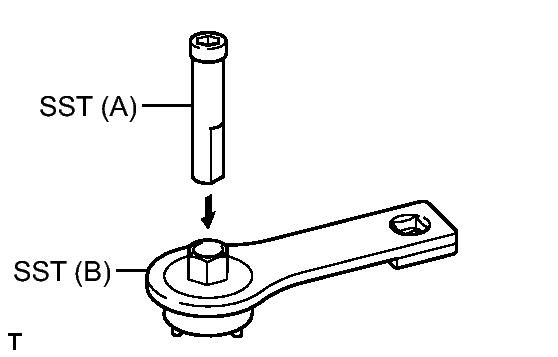

2. Set SST (A) and (B).

  Fig 2: Setting Rotor Shaft To SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09820-63020
  1. Set the rotor shaft to SST (A).
  2. Mount SST (A) in a vise.
3. Install the generator with the SST as shown in the illustration.

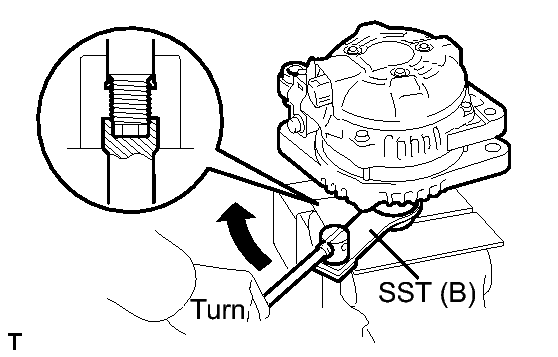

  Fig 3: Turning SST Clockwise And Loosen Generator Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn SST (B) clockwise, and loosen the generator pulley.
5. Remove the generator from SST.
6. Remove the pulley from the rotor shaft.
REMOVE GENERATOR REAR END COVER
1. Remove the 3 nuts and generator rear end cover.

  Fig 4: Locating Generator Rear End Cover Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TERMINAL INSULATOR
1. Remove the terminal insulator.

  Fig 5: Locating Terminal Insulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR BRUSH HOLDER ASSEMBLY
1. Remove the 2 screws and generator brush holder assembly.

  Fig 6: Locating Generator Brush Holder Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR COIL ASSEMBLY
1. Remove the 4 bolts.

  Fig 7: Locating Generator Coil Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

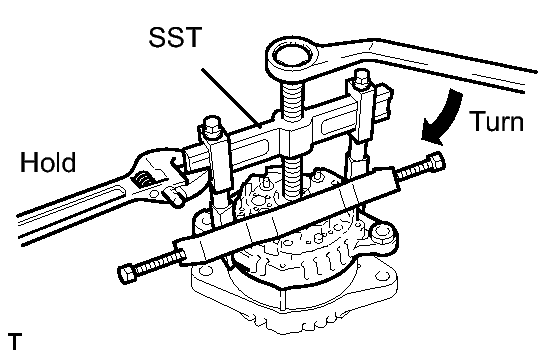

2. Using SST, remove the generator coil assembly.

  Fig 8: Removing Generator Coil Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09950-40011
    - 09951-04020
    - 09952-04010
    - 09953-04020
    - 09954-04010
    - 09955-04071
    - 09957-04010
    - 09958-04011
3. Remove the generator washer.
REMOVE GENERATOR ROTOR ASSEMBLY
1. Remove the generator rotor assembly.
REMOVE GENERATOR DRIVE END FRAME BEARING
1. Remove the 4 screws and bearing retainer.

  Fig 9: Locating Bearing Retainer Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, tap out the generator drive end frame bearing.

  Fig 10: Tapping Out Drive End Frame Bearing From Drive End Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09950-60010
    - 09951-00250
  - SST: 09950-70010
    - 09951-07100
