Rear Speed Sensor: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR WHEEL
DISCONNECT SKID CONTROL SENSOR WIRE
1. Disconnect the connector from the skid control sensor.

  Fig 1: Locating Skid Control Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH . Refer to REMOVAL - Step 2
REMOVE REAR DISC
REMOVE REAR AXLE HUB & BEARING ASSEMBLY LH
1. Remove the 4 bolts and rear axle hub & bearing assembly.

  Fig 2: Locating Rear Axle Hub Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SPEED SENSOR
1. Mount the rear axle hub in a vise between aluminum plates.

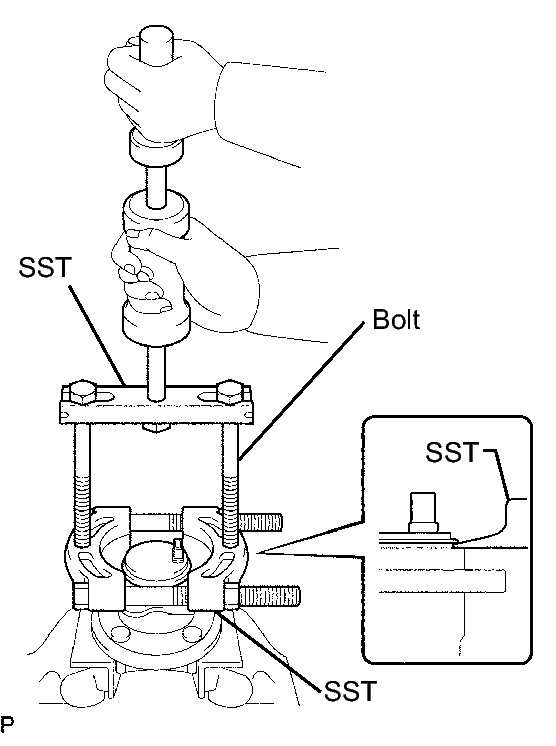

  Fig 3: Removing Rear Speed Sensor With SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Replace the axle hub & bearing assembly if it is dropped or receives a strong shock.
2. Using a pin punch and hammer, drive out the 2 pins and remove the 2 attachments (09521-00010) from SST.
  - SST: 09520-00031
3. Using SST and 2 bolts (Diameter: 12 mm, pitch: 1.5 mm), remove the rear speed sensor from the rear axle hub.
  - SST: 09520-00031
    - 09520-00040
  - SST: 09521-00020
  - SST: 09950-00020
  NOTE:
  - If damage is inflicted on the sensor rotor, replace the axle hub & bearing assembly.
  - Do not scratch the contact surface of axle hub and speed sensor.
