Section 30 (Charging System (2AZ-FE) (Service Information)): Generator: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL GENERATOR ASSEMBLY

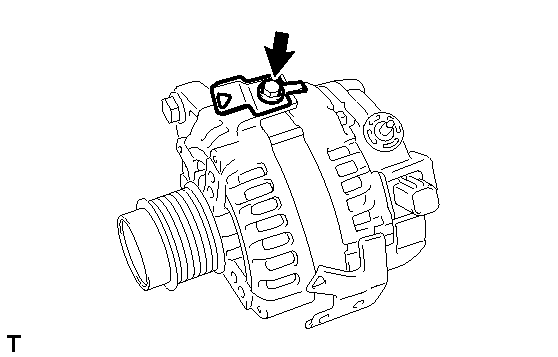

1. Install the wire harness clamp bracket with the bolt.

  Fig 1: Remove/Install Wire Harness Clamp Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

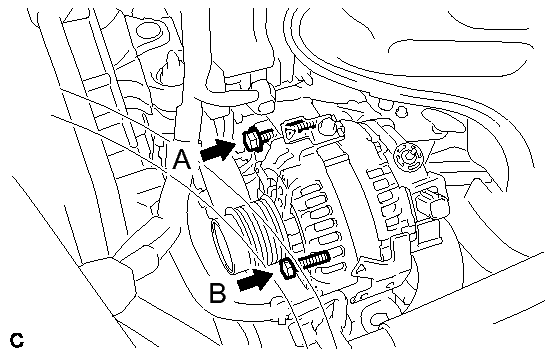

2. Install the generator assembly with the 2 bolts.

  Fig 2: Locating Generator Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Bolt A

  Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

  Bolt B

  Torque: 21 N*m (215 kgf*cm, 16 ft.*lbf)

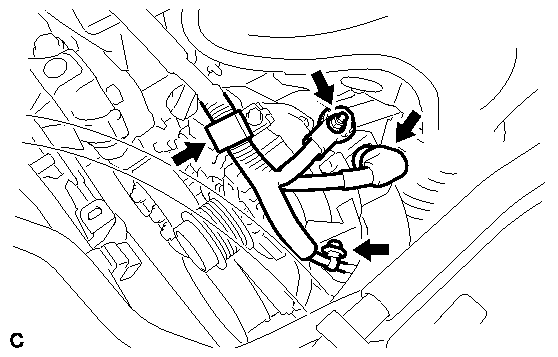

3. Install the generator connector and 2 wire harness clamps.

  Fig 3: Remove/Install Generator Assembly With Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the wire harness to terminal B with the nut and install the terminal cap.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
INSTALL V-RIBBED BELT . Refer to INSTALLATION - Step 1
INSTALL ENGINE UNDER COVER RH
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
