Service Data





SPECIFICATIONS: E351 MANUAL TRANSMISSION / TRANSAXLE: SERVICE DATA

MANUAL TRANSAXLE ASSEMBLY:

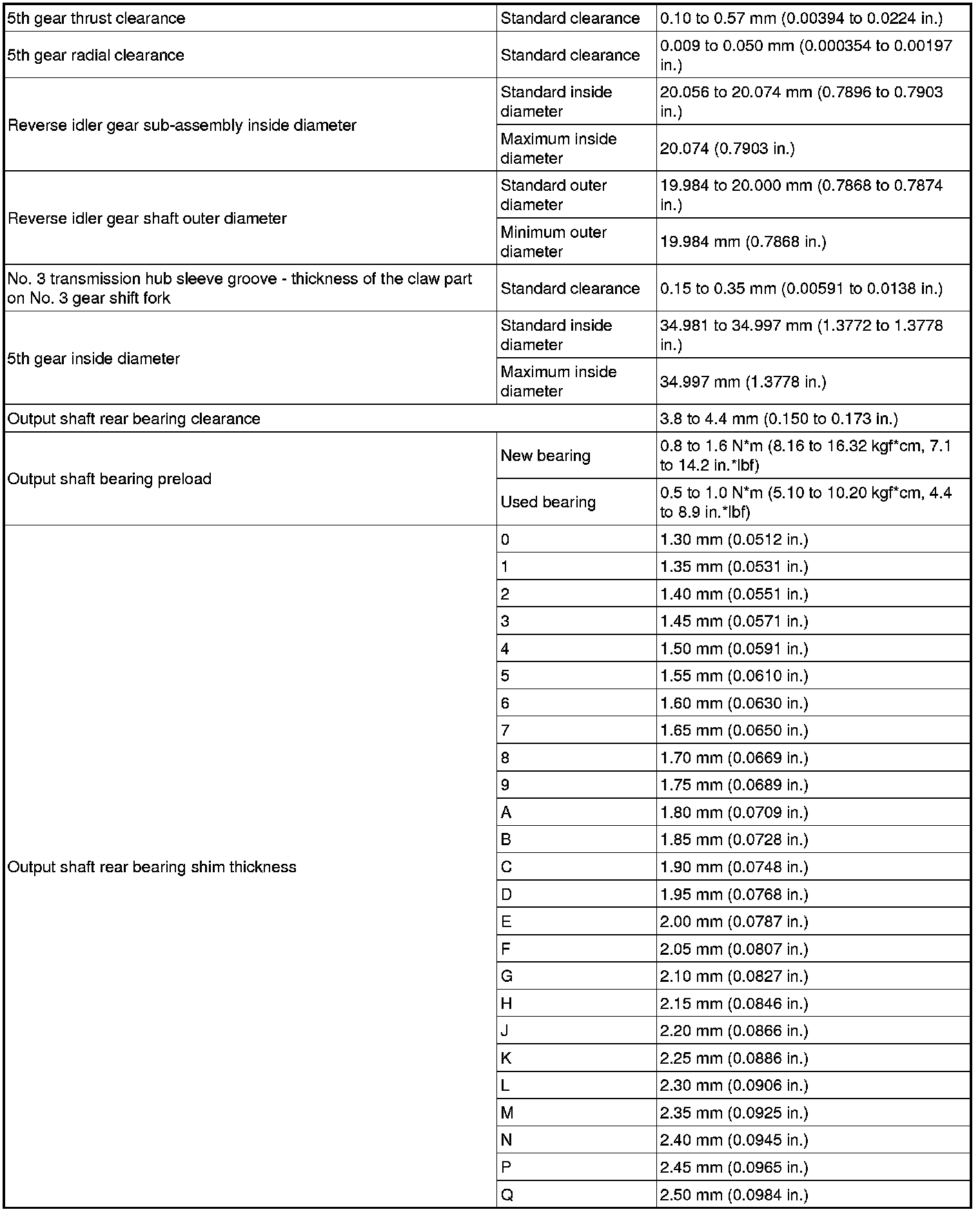

MANUAL TRANSAXLE UNIT:

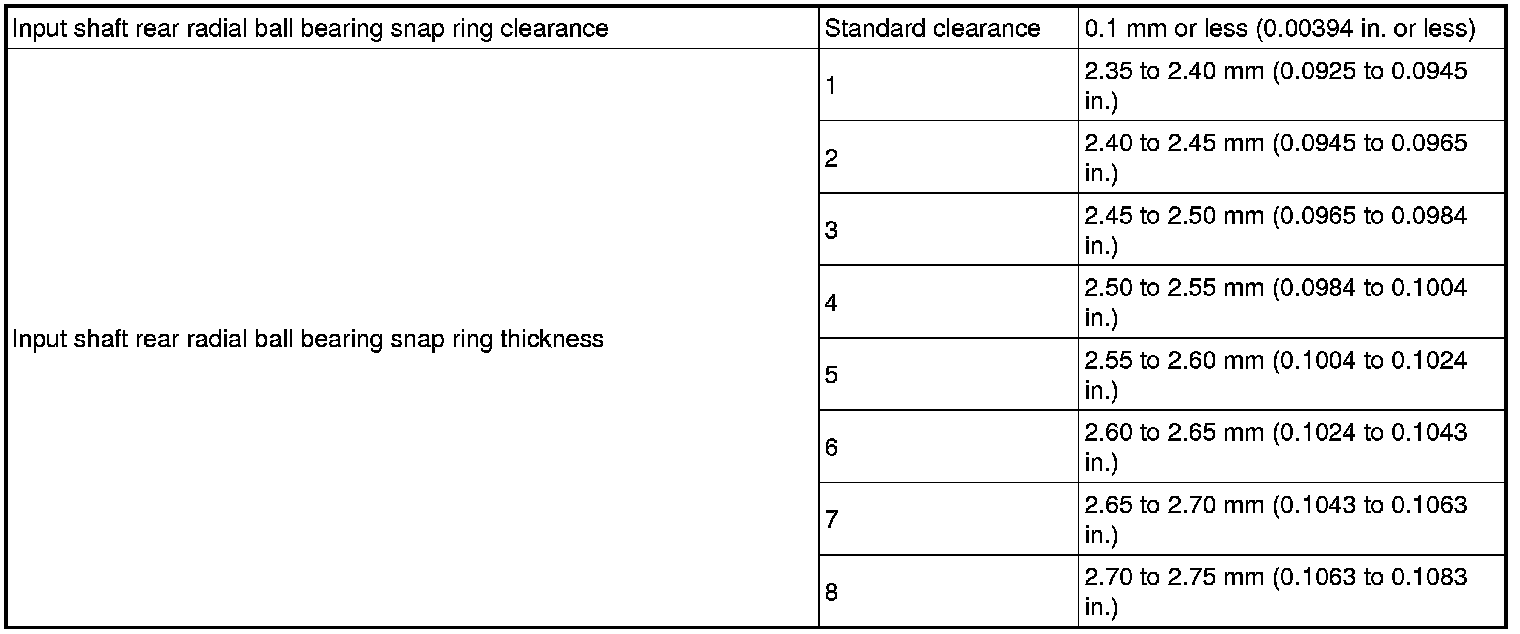

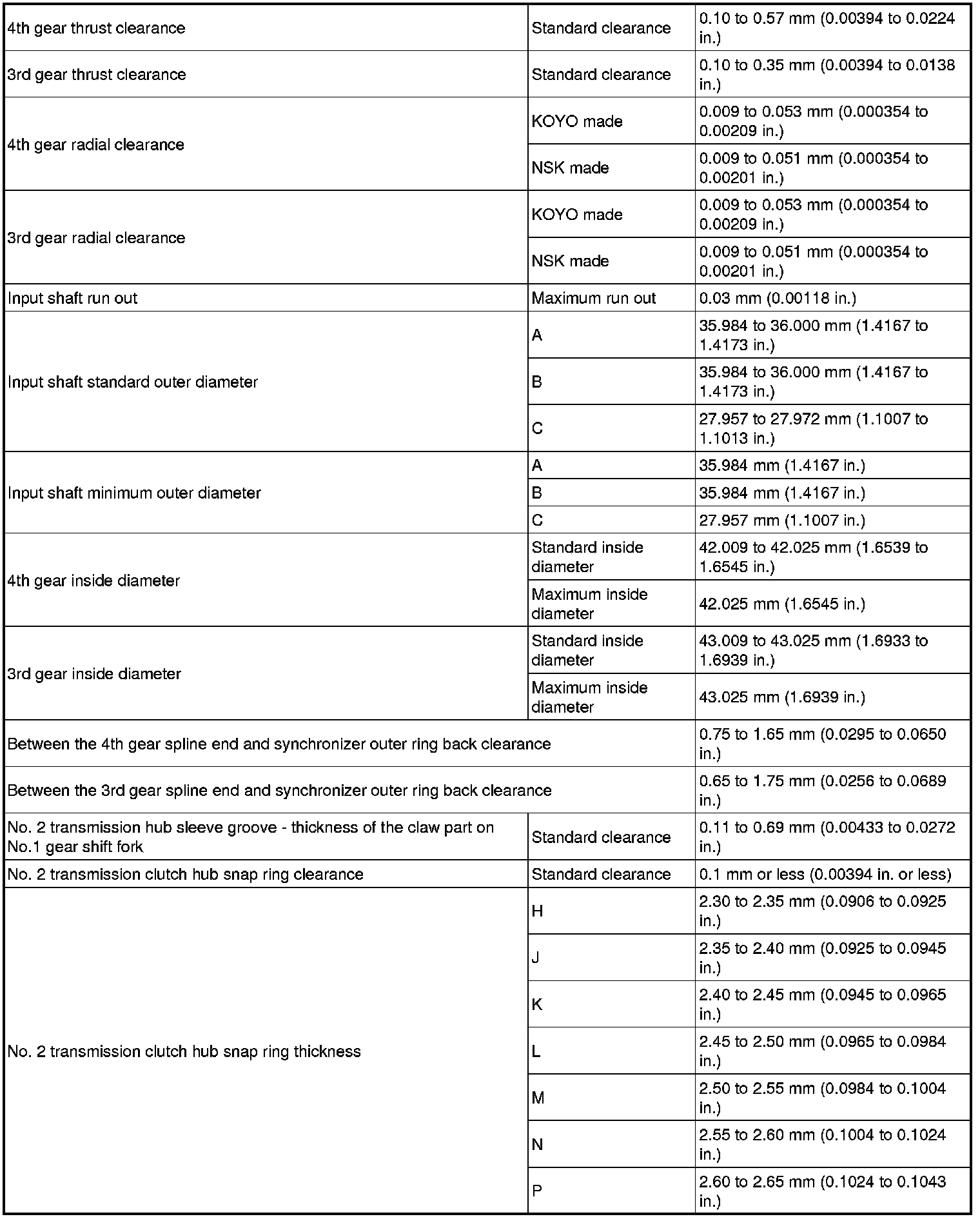

INPUT SHAFT ASSEMBLY:

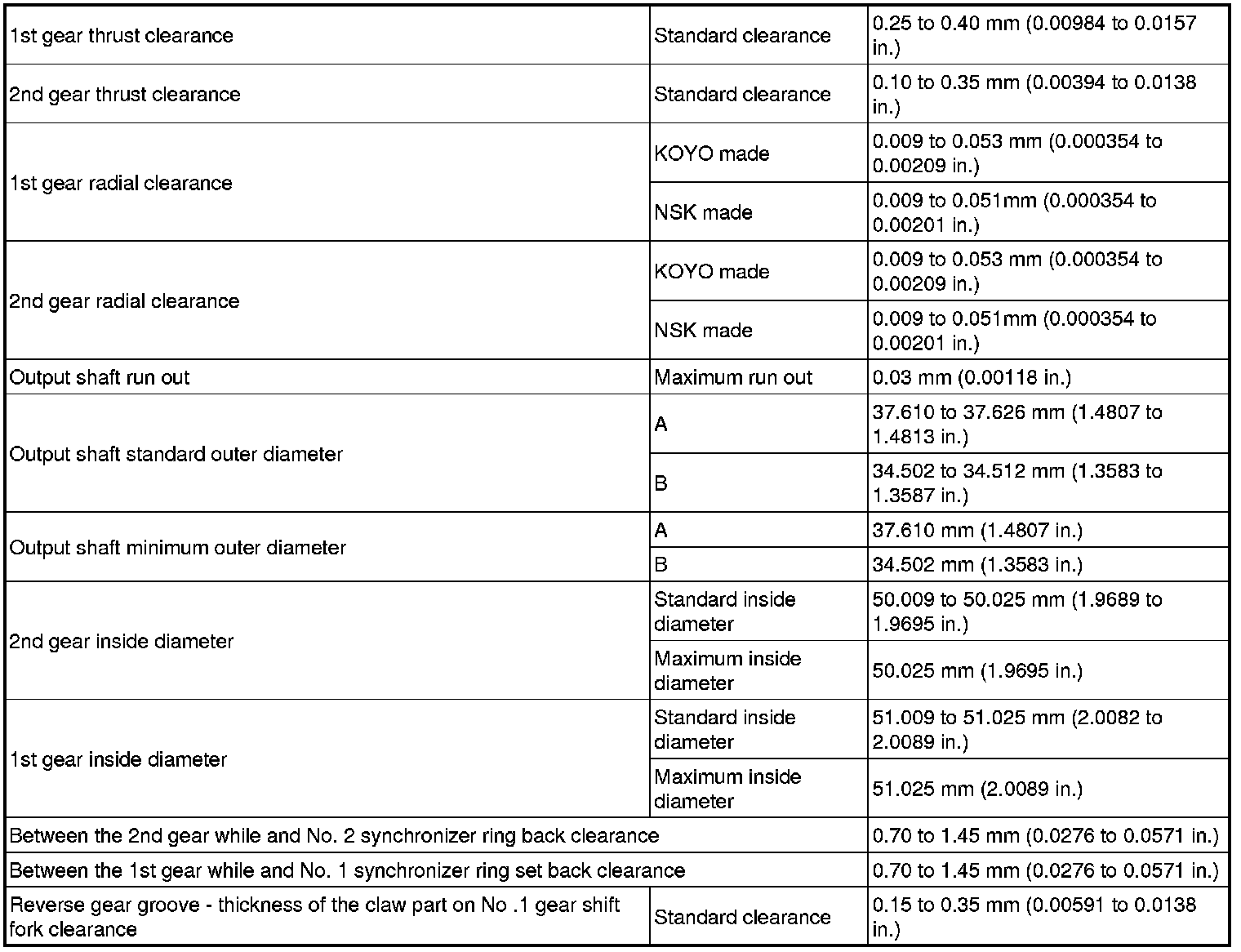

OUTPUT SHAFT ASSEMBLY:

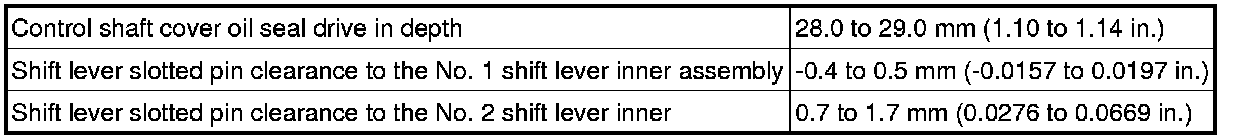

SHIFT AND SELECT LEVER SHAFT ASSEMBLY:

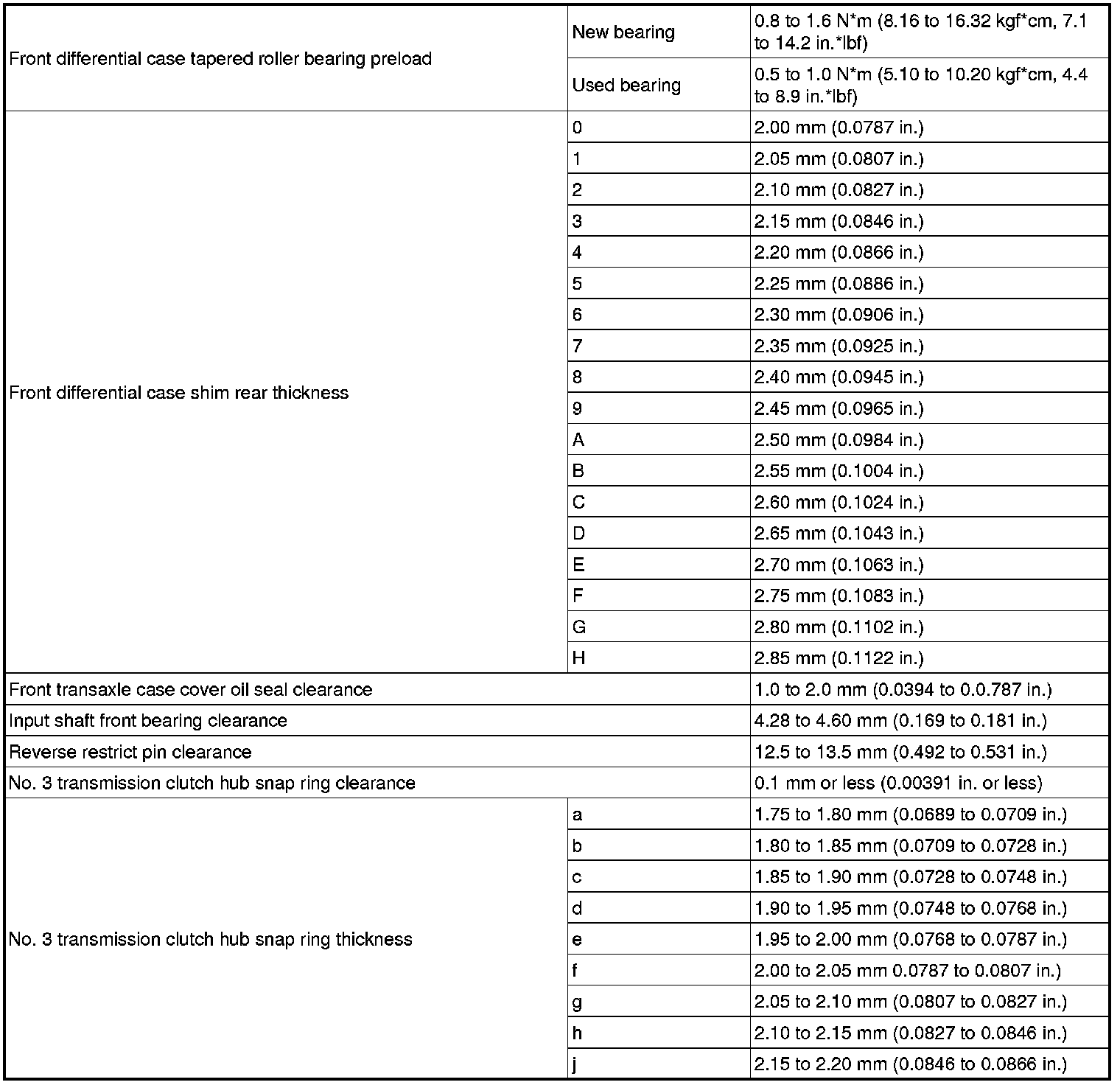

DIFFERENTIAL CASE ASSEMBLY:
