PCV Valve: Installation: Installation

INSTALL VENTILATION VALVE SUB-ASSEMBLY
1. Apply adhesive to 2 or 3 threads of the ventilation valve.

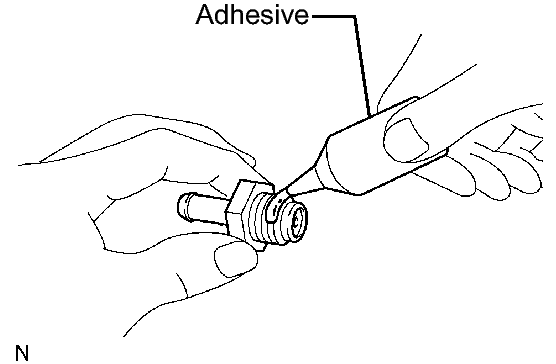

  Fig 1: Applying Adhesive To Threads Of Ventilation Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Adhesive

  Toyota genuine adhesive 1324, three bond 1324 or equivalent
2. Using a 22 mm deep socket wrench, install the ventilation valve.

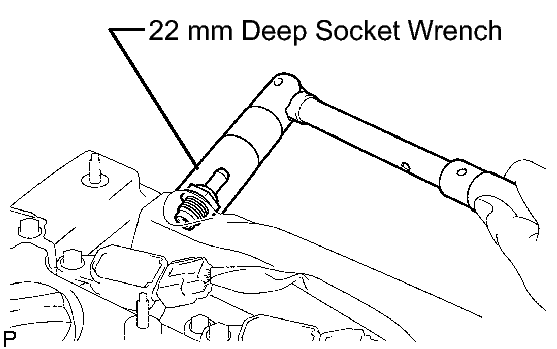

  Fig 2: Remove/Install Ventilation Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
CONNECT NO. 2 VENTILATION HOSE
1. Connect the No. 2 ventilation hose.

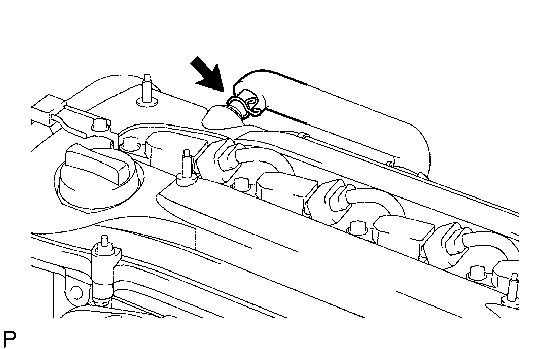

  Fig 3: View Of Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 93
INSPECT FOR OIL LEAK
