Front Wiper Motor: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL WINDSHIELD WIPER LINK ASSEMBLY
1. Install the windshield wiper motor assembly with the 3 bolts.

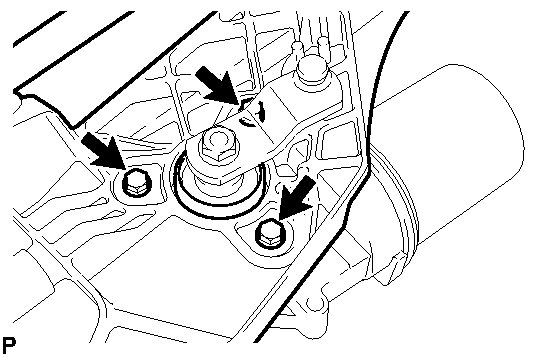

  Fig 1: Locating Wiper Link Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
2. Install the rod to the wiper link assembly.

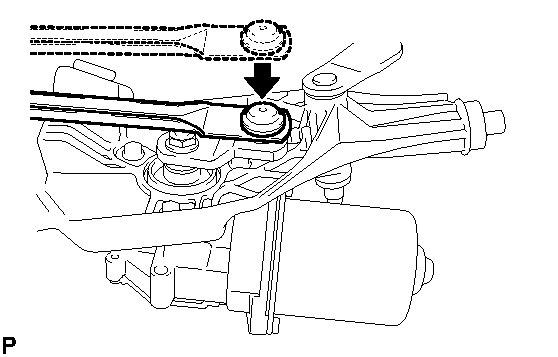

  Fig 2: Installing Rod To Wiper Link Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
1. Install the windshield wiper motor & link assembly with the 4 bolts.

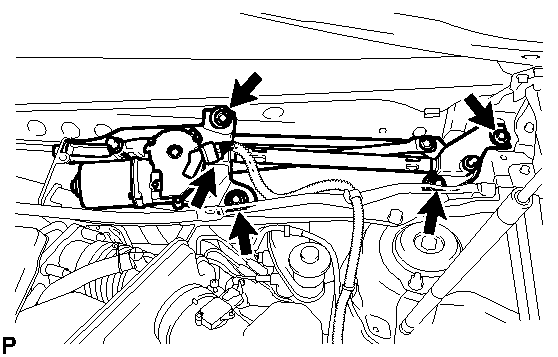

  Fig 3: Locating Windshield Wiper Motor And Link Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
2. Connect the connector.
INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH
1. Operate the wiper, and stop the windshield wiper motor assembly at the automatic stop position.
2. Clean the wiper arm serrations.

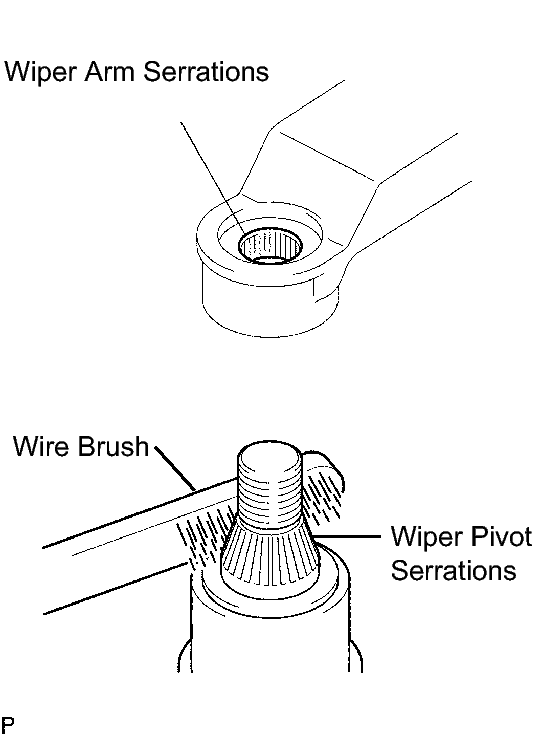

  Fig 4: Cleaning Wiper Pivot Serrations With Wire Brush
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Clean the wiper pivot serrations with a wire brush (before reinstalling).
4. Install the FR wiper arm & blade assembly RH with the nut at the position as shown in the illustration.

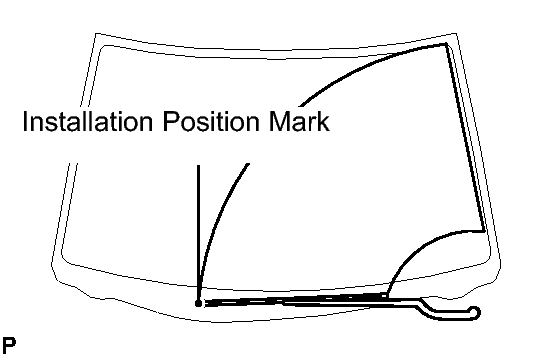

  Fig 5: Identifying Installation Position Of FR Wiper Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20 N*m (209 kgf*cm, 15 ft.*lbf)

  HINT:

  Hold the arm hinge by hand to fasten the nut.
INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH
1. Clean the wiper arm serrations.

  Fig 6: Cleaning Wiper Arm Serrations
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Clean the wiper pivot serrations with a wire brush (when reinstalling).
3. Install the FR wiper arm & blade assembly LH with the nut at the position shown in the illustration.

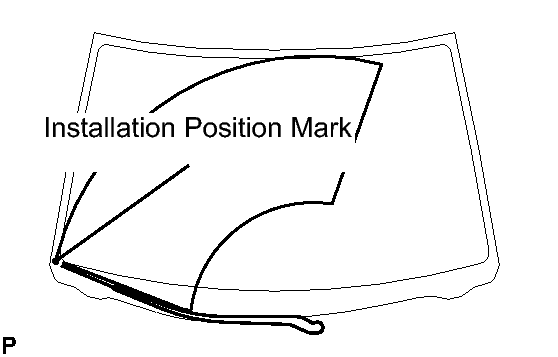

  Fig 7: Identifying Installation Position Of FR Wiper Arm And Blade Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20 N*m (209 kgf*cm, 15 ft.*lbf)

  HINT:

  Hold the arm hinge by hand to fasten the nut.
