Rear Combination Light Assembly: Reassembly: Reassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR BUMPER UPPER RETAINER
1. Engage the guide.

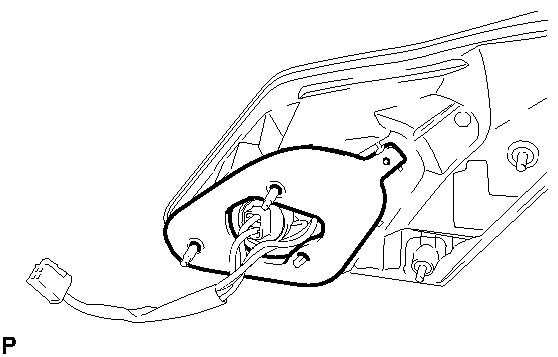

  Fig 1: Locating Rear Bumper Upper Retainer Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear bumper upper retainer with the 2 screws.
INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
1. Connect the connector to install the rear combination light socket and wire sub-assembly.

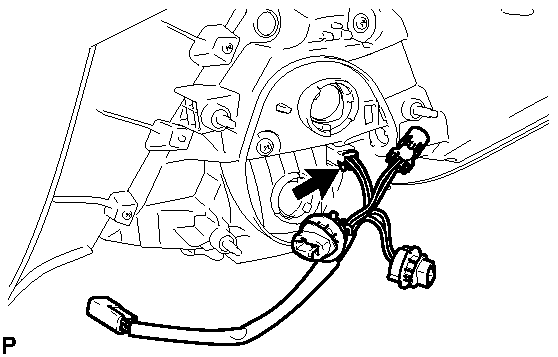

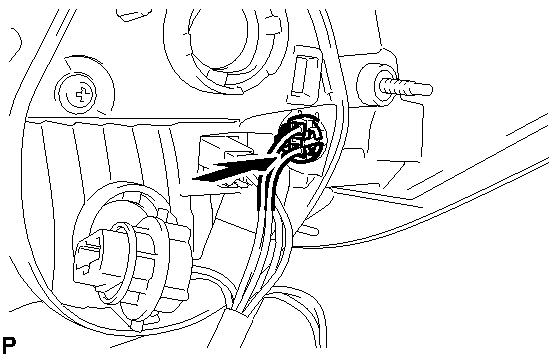

  Fig 2: Locating Rear Combination Light Socket And Wire Sub-Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SIDE MARKER LIGHT BULB
1. Install the side marker light bulb to the rear combination light socket and wire sub-assembly.
2. Connect the side marker light bulb and the rear combination light socket and wire sub-assembly as shown in the illustration.

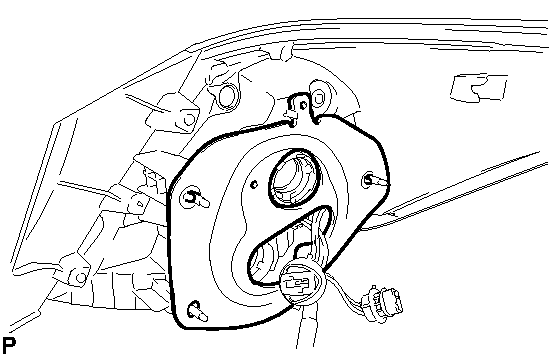

  Fig 3: Installing Side Marker Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The pinch tabs should be horizontal.
INSTALL REAR COMBINATION LIGHT LENS GASKET
1. Install a new rear combination light lens gasket.

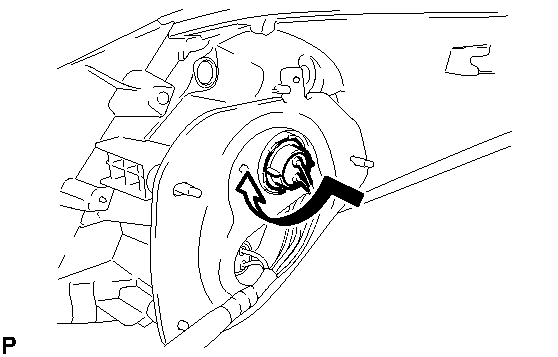

  Fig 4: Installing Rear Combination Light Lens Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR TURN SIGNAL LIGHT BULB
1. Install the rear turn signal light bulb to the rear combination light socket and wire sub-assembly.
2. Turn the rear turn signal light bulb and rear combination light socket and wire sub-assembly in the direction indicated by the arrow shown in the illustration to connect them as a unit.

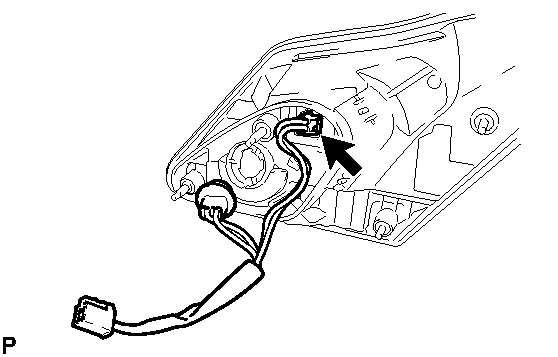

  Fig 5: Installing Rear Turn Signal Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TAIL AND STOP LIGHT BULB
1. Install the tail and stop light bulb to the rear combination light socket and wire sub-assembly.
2. Turn the tail and stop light bulb and rear combination light socket and wire sub-assembly in the direction indicated by the arrow shown in the illustration to connect them as a unit.

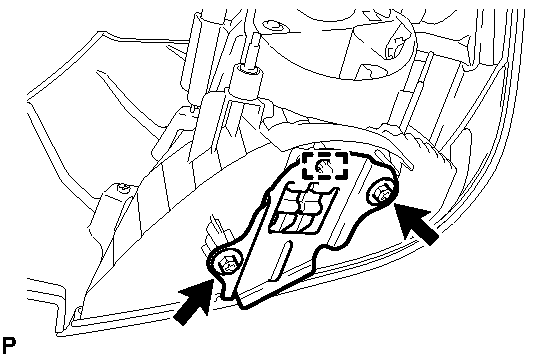

  Fig 6: Installing Tail And Stop Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR LIGHT SOCKET AND WIRE
1. Connect the connector and install the rear light socket and wire.

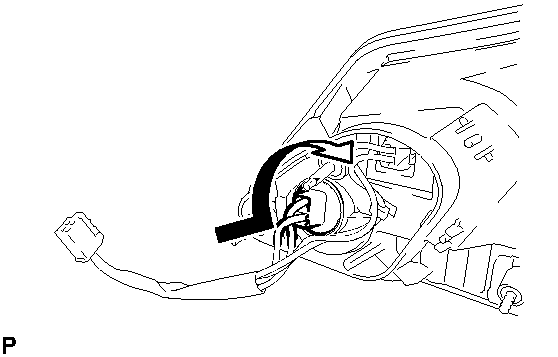

  Fig 7: Locating Rear Light Socket And Wire Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BACK-UP LIGHT BULB
1. Install the back-up light bulb to the rear light socket and wire.
2. Turn the back-up light bulb and rear light socket and wire in the direction indicated by the arrow shown in the illustration to connect them as a unit.

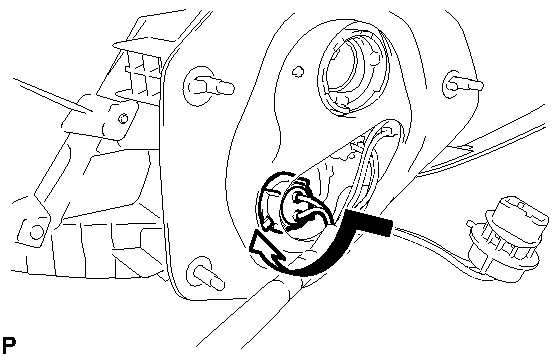

  Fig 8: Installing Back-Up Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR LIGHT GASKET
1. Install a new rear light gasket.

  Fig 9: Installing Rear Light Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
