Mass Air Flow Meter: Installation: Installation

  1. INSTALL MASS AIR FLOW METER
    1. Install the mass air flow meter with the 2 screws.

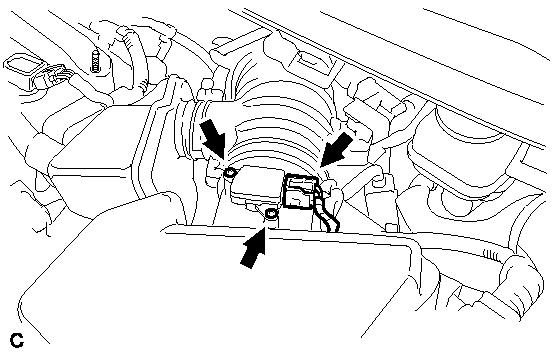

      Fig 1: Remove/Install Mass Air Flow Meter Connector Screws
      GTY194544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 1.0 N*m (10 kgf*cm, 9 in.*lbf)

      NOTE:

      Make sure that the O-ring is not cracked or does not jump out of position during installation.

    2. Connect the mass air flow meter connector.
