Mute Signal Circuit between Navigation Receiver Assembly and Multi-media Interface ECU: Procedure

1. Measure the voltage according to the value(s) in the table below.

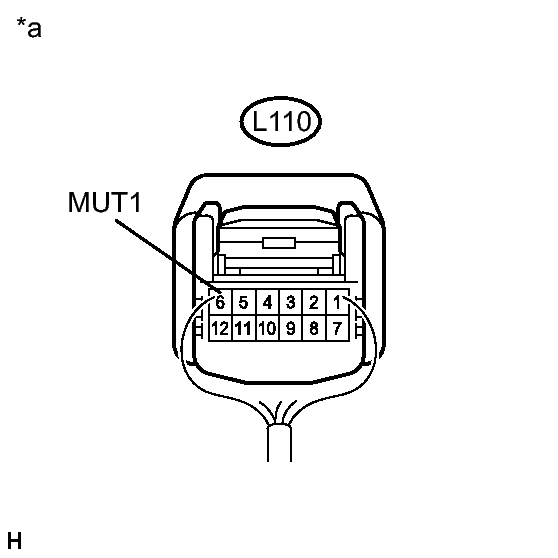

   Fig 1: Identifying L110 Multi-Media Interface ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   L110-6 (MUT1) - Body ground	Power switch on (ACC), USB audio system or satellite radio playing → Changing sources	Above 3.5 V → Below 1 V

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Multi-media Interface ECU)

NG → See step   2

OK → See step   4

1. Disconnect the L38 navigation receiver assembly connector.
2. Disconnect the L110 multi-media interface ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L38-6 (MUTE) - L110-6 (MUT1)	Always	Below 1 Ω
   L38-6 (MUTE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the multi-media interface ECU and check that the malfunction disappears. Refer to REMOVAL .

   OK

   Malfunction disappears.

NG → See step   5

OK → END
