DTC P0403: Exhaust Gas Recirculation Control Circuit: Wiring Diagram

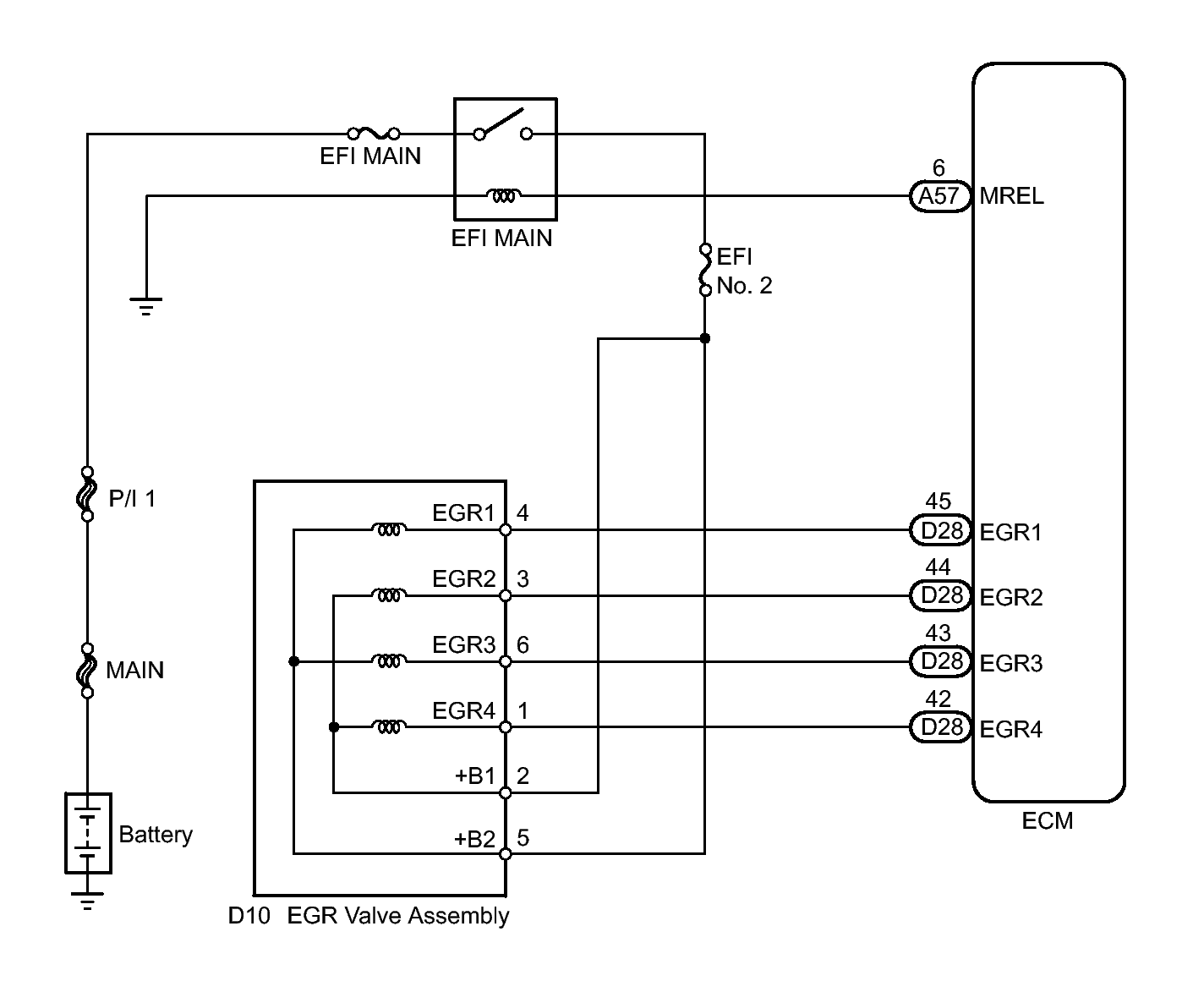

Fig 1: Exhaust Gas Recirculation Control Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
