Installation

DOOR LOCK: TRANSMITTER BATTERY (w/o Smart Key System): INSTALLATION

1. INSTALL TRANSMITTER BATTERY

NOTICE:
Take extra care when handling these precision electronic components.

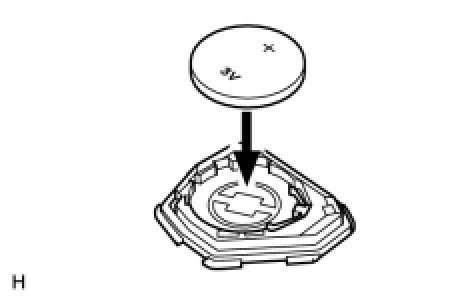

(a) Install a battery (lithium battery: CR2016) with the positive (+) side facing upward, as shown in the illustration.





NOTICE:
* Be careful not to bend the transmitter battery electrode during insertion.
* Keep the transmitter cover interior free of dust and oil.

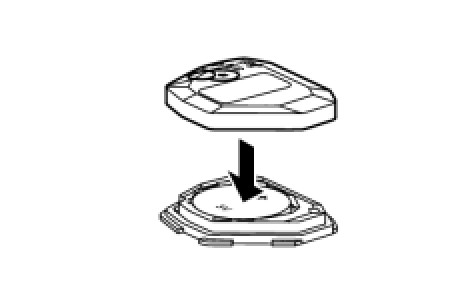

Install the cover.

2. INSTALL DOOR CONTROL TRANSMITTER MODULE





3. INSTALL TRANSMITTER HOUSING COVER





Install the transmitter housing cover to the transmitter housing case.

(a) Check that the transmitter's LED illuminates 3 times when the switch is pressed 3 times.

OK:

Transmitter's LED illuminates 3 times when switch is pressed 3 times.
