Removal

DOOR LOCK: DOOR CONTROL TRANSMITTER (w/o Smart Key System): REMOVAL

1. REMOVE TRANSMITTER HOUSING COVER

NOTICE:
Take extra care when handling these precision electronic components.

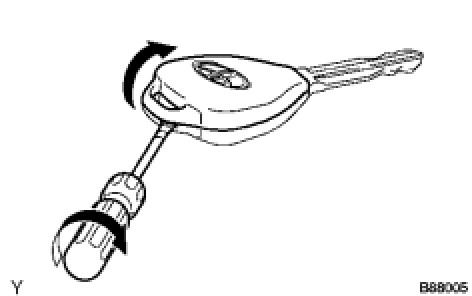

Twist the screwdriver in the direction of the arrow mark in the illustration, and open the transmitter housing cover.

NOTICE:
Do not forcibly pry the cover.

HINT
Tape the screwdriver tip before use.

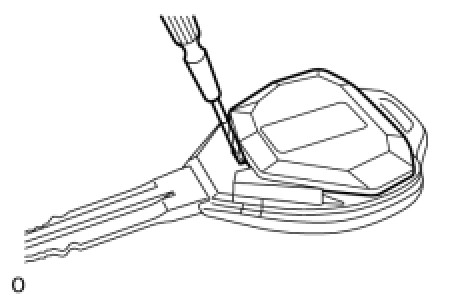

2. REMOVE DOOR CONTROL TRANSMITTER MODULE
