Navigation Receiver Assembly Power Source Circuit: Wiring Diagram

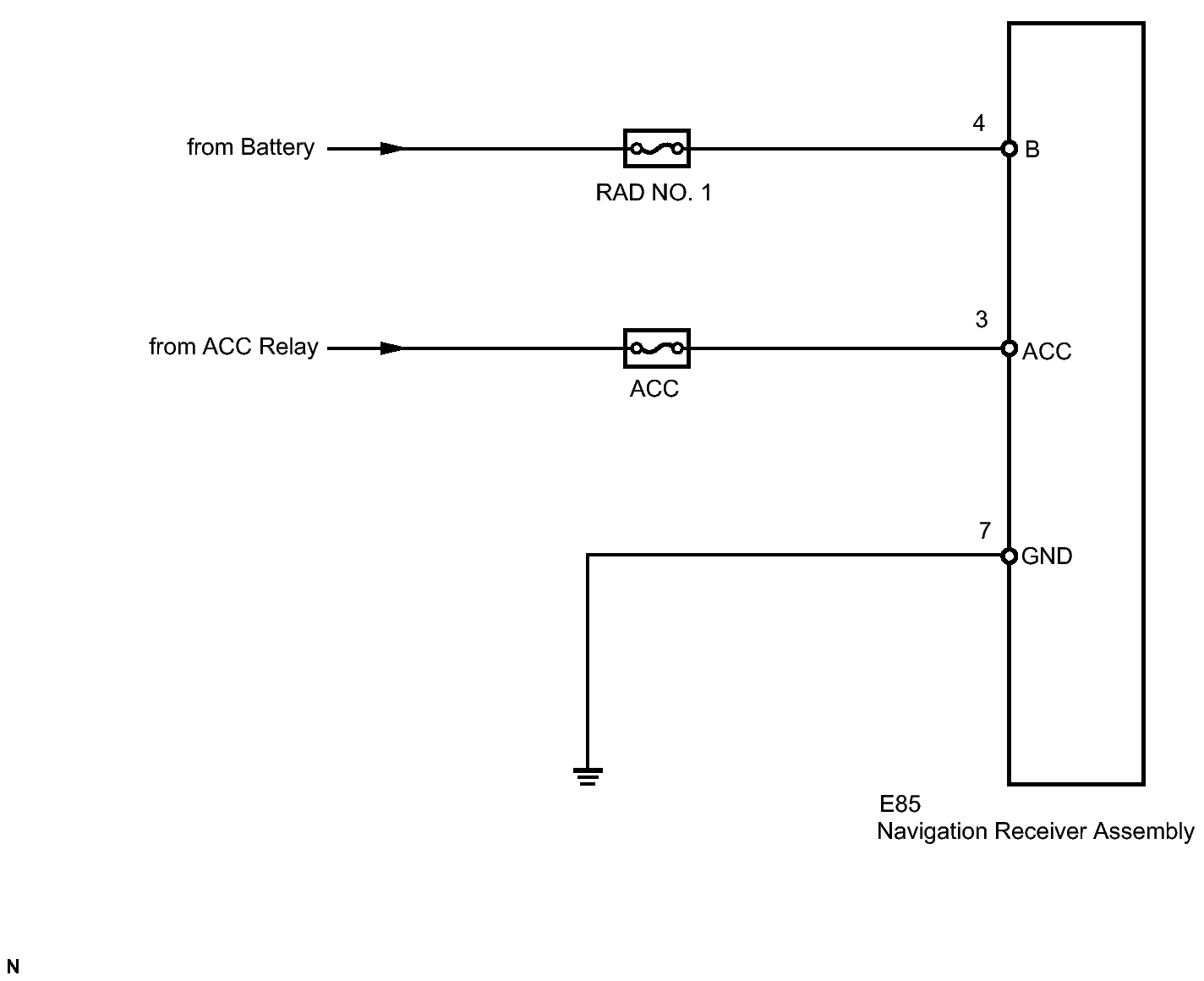

Fig 1: Navigation Receiver Assembly Power Source Circuit - Wiring Diagram
GTY246521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
