Rear Power Window RH does not Operate with Rear Power Window Switch RH: Procedure

1. Remove the RR DOOR fuse from the instrument panel junction block.
2. Measure the resistance of the fuse.

   Standard resistance

   Below 1 Ω

NG → REPLACE FUSE (RR DOOR)

OK: Go to next step

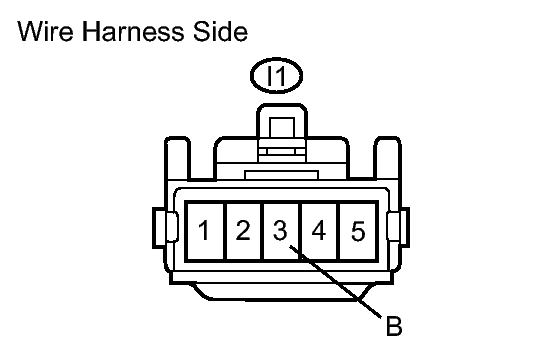

Fig 1: Identifying I1 Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the I1 switch connector.
2. Measure the voltage of the wire harness side connector.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   I1-3 (B) - Body ground	Ignition switch ON	10 to 14 V

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

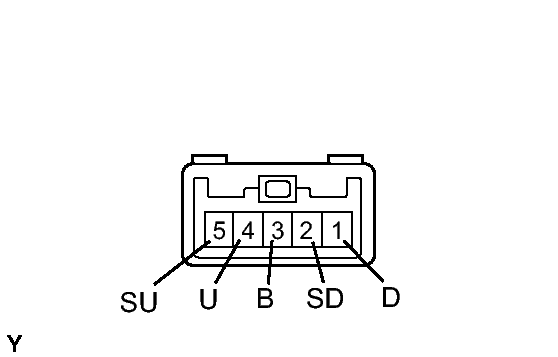

Fig 2: Identifying Power Window Regulator Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the power window regulator switch.
2. Measure the resistance of the switch when the switch is operated.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   1 (D) - 2 (SD) 3 (B) - 4 (U)	UP	Below 1 Ω
   1 (D) - 2 (SD) 4 (U) - 5 (SU)	OFF	Below 1 Ω
   1 (D) - 3 (B) 4 (U) - 5 (SU)	DOWN	Below 1 Ω

NG → REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH)

OK: Go to next step

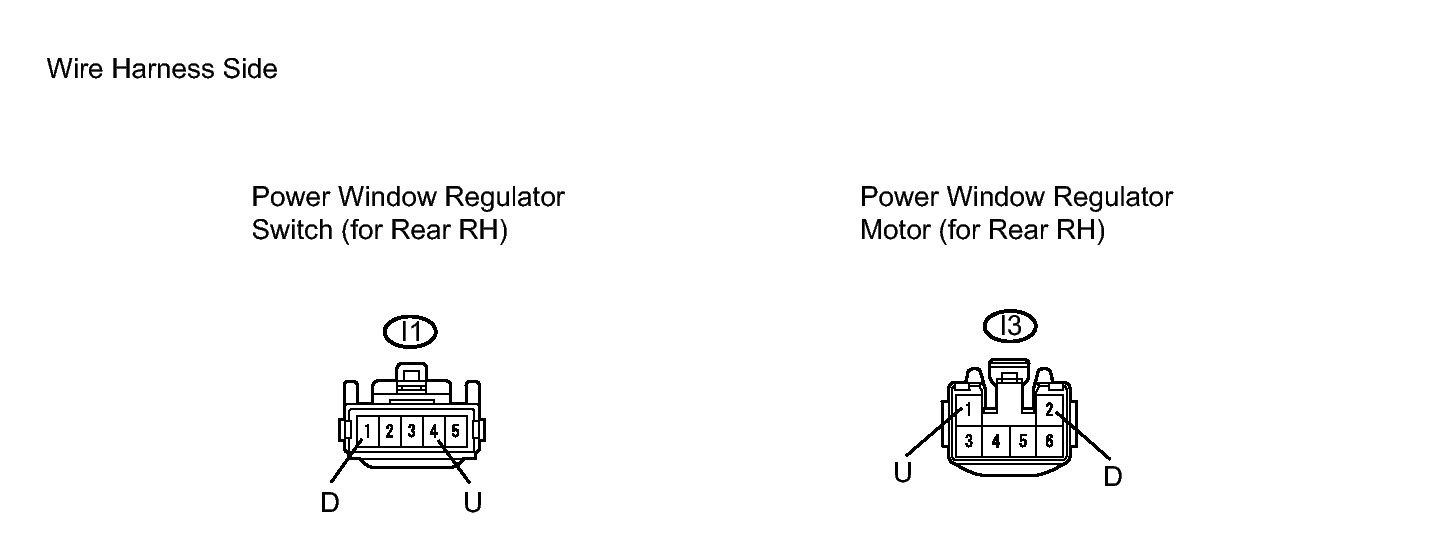

Fig 3: Identifying Regulator Switch And Regulator Motor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the I1 switch connector.
2. Disconnect the I3 motor connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   Tester Connection	Specified Condition
   I1-4 (U) - I3-1 (U)	Below 1 Ω
   I1-1 (D) - I3-2 (D)	Below 1 Ω
   I1-4 (U) or I3-1 (U) - Body ground	10 kΩ or higher
   I1-1 (D) or I3-2 (D) - Body ground	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

Fig 4: Inspecting Power Window Regulator Motor Assembly (For Rear RH Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the power window regulator motor.
2. Apply the battery voltage to connector terminals 1 and 2.
3. Check that the motor gear rotates smoothly as follows.

   OK

   Measurement Condition	Specified Condition
   Battery positive (+) → 1 Battery negative (-) → 2	Motor gear rotates counterclockwise
   Battery positive (+) → 2 Battery negative (-) → 1	Motor gear rotates clockwise

NG → REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH)

OK: Go to next step

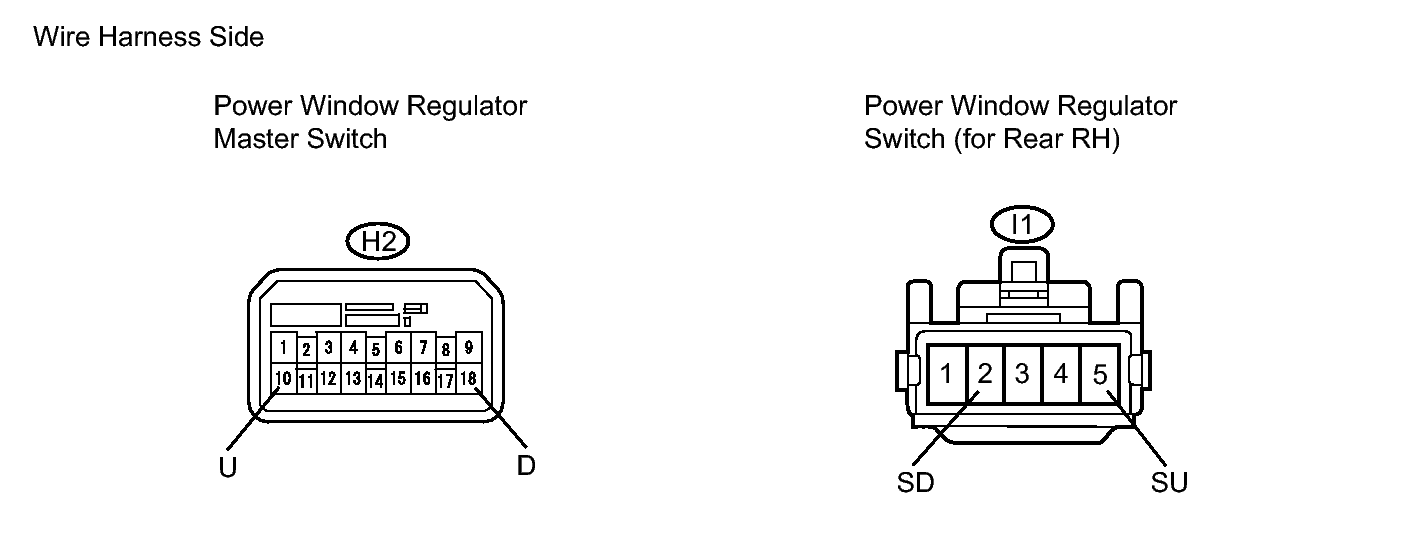

Fig 5: Identifying Master Switch And Regulator Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the H2 switch connector.
2. Disconnect the I1 switch connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   Tester Connection	Specified Condition
   H2-10 (U) - I1-5 (SU)	Below 1 Ω
   H2-18 (D) - I1-2 (SD)	Below 1 Ω
   H2-10 (U) or I1-5 (SU) - Body ground	10 kΩ or higher
   H2-18 (D) or I1-2 (SD) - Body ground	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK → REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
