Power Source Mode does not Change: Description

When the certification ECU has detected the electrical key inside the cabin before the brake pedal is depressed, the power source mode can be changed in the following order sequentially by pressing the engine switch: off → on (ACC) → on (IG) → off.

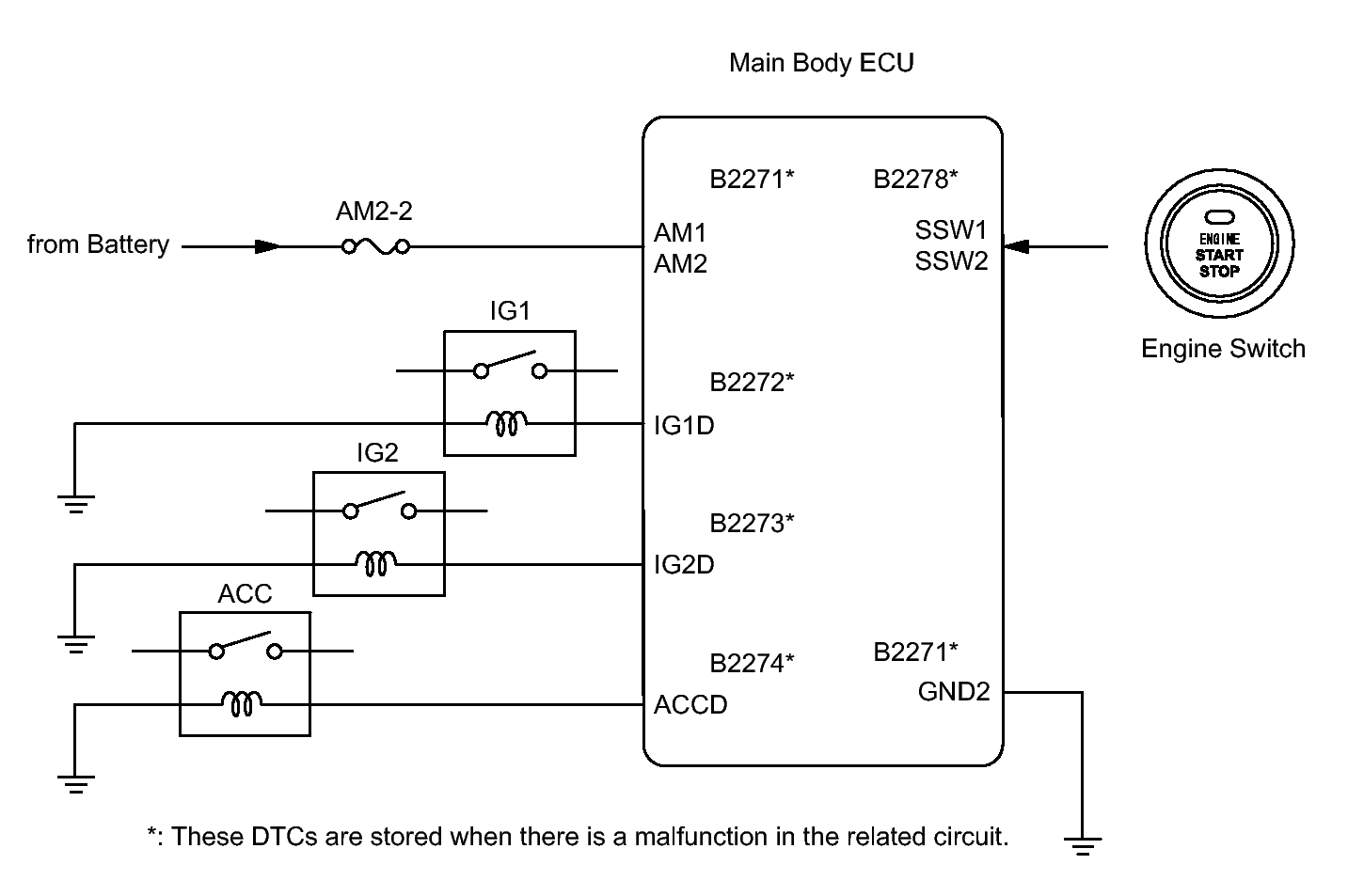

Fig 1: Main Body ECU - Circuit Diagram
GTY215206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
