DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input: Wiring Diagram

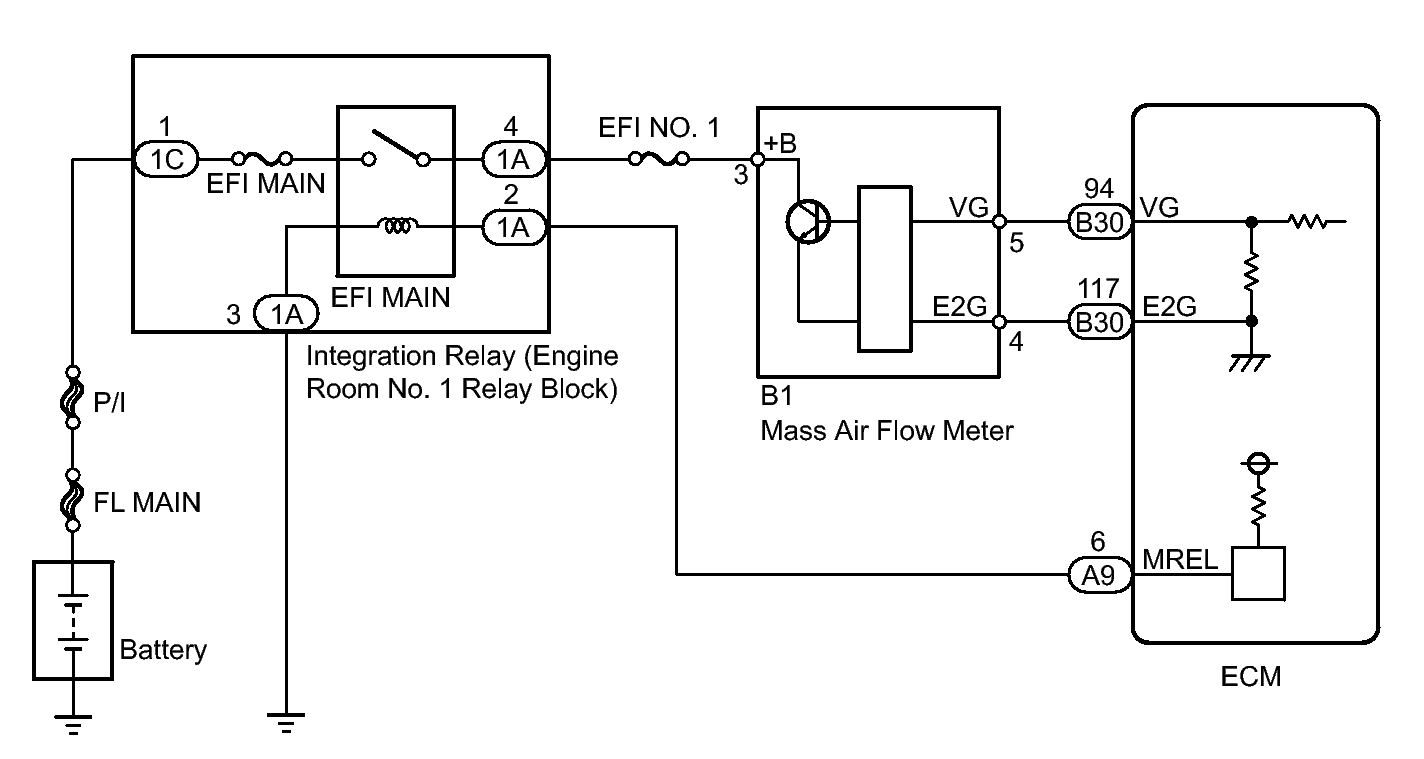

Fig 1: Mass Air Flow (MAF) Meter Circuit - Wiring Diagram
GTY218875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
