DTC P0365: Camshaft Position Sensor "B" Circuit (Bank 1); DTC P0367: Camshaft Position Sensor "B" Circuit Low Input (Bank 1); DTC P0368: Camshaft Position Sensor "B" Circuit High Input (Bank 1): Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
5. Read the DTCs.

   Result

   Result	Proceed to
   DTC P0365, P0367 or P0368 is output	A
   DTC P0365, P0367 or P0368 and other DTCs are output	B

   HINT:

   If any DTCs other than P0365, P0367 or P0368 are output, troubleshoot those DTCs first.

B → See step   11

A: Go to next step

1. Disconnect the camshaft position sensor (for exhaust camshaft) connector.

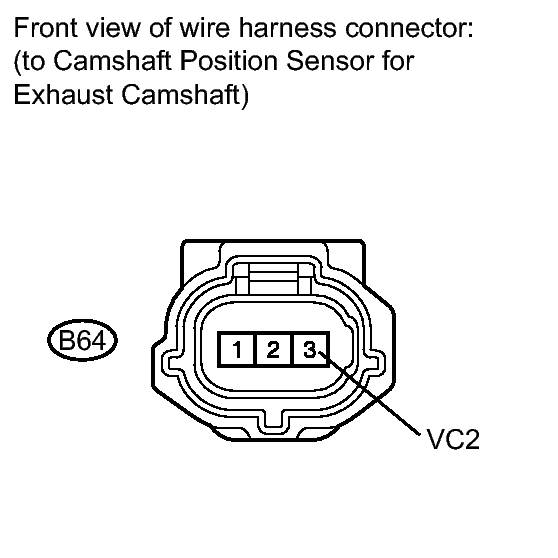

   Fig 1: Inspecting Camshaft Position Sensor (For Exhaust Camshaft) (Power Source)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch to ON.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   B64-3 (VC2) - Body ground	Ignition switch ON	4.5 to 5.5 V

4. Reconnect the camshaft position sensor (for exhaust camshaft) connector.

NG → See step   10

OK: Go to next step

1. Disconnect the camshaft position sensor (for exhaust camshaft) connector.

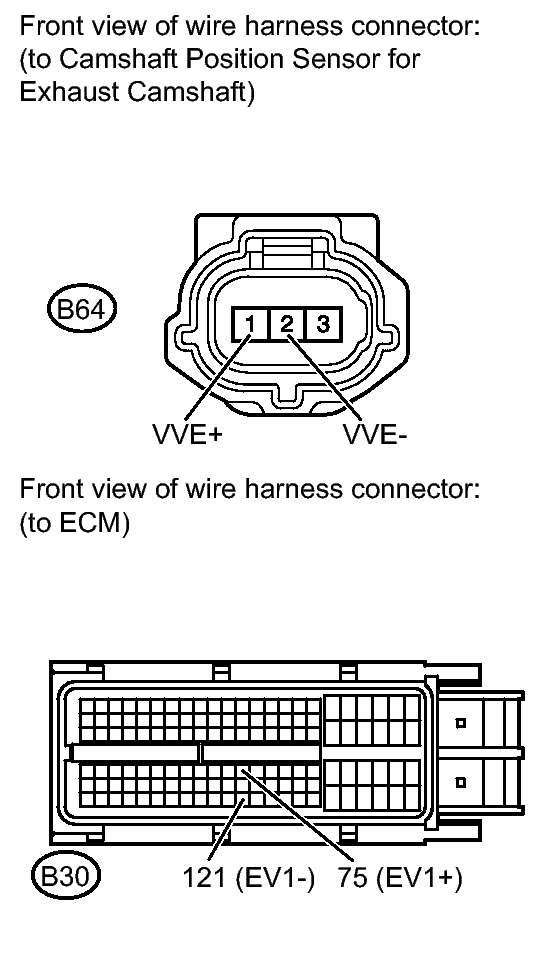

   Fig 2: Identifying Camshaft Position Sensor And ECM Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   B64-1 (VVE+) - B30-75 (EV1+)	Always	Below 1 Ω
   B64-2 (VVE-) - B30-121 (EV1-)	Always	Below 1 Ω

   Standard Resistance (Check for Short)

   Tester Connection	Condition	Specified Condition
   B64-1 (VVE+) or B30-75 (EV1+) - Body ground	Always	10 kΩ or higher
   B64-2 (VVE-) or B30-121 (EV1-) - Body ground	Always	10 kΩ or higher

4. Reconnect the camshaft position sensor (for exhaust camshaft) connector.
5. Reconnect the ECM connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Check the camshaft position sensor (for exhaust camshaft) installation.
   Fig 3: Checking Camshaft Position Sensor Installation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Sensor is installed correctly.

NG → See step   12

OK: Go to next step

1. Check the timing rotor of the exhaust camshaft.

   OK

   Camshaft timing rotor does not have any cracks or deformation.

NG → See step   13

OK: Go to next step

1. Replace the camshaft position sensor. Refer to REMOVAL .

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Clear DTCs. Refer to DTC CHECK / CLEAR .
5. Start the engine and allow the engine to idle for 10 seconds or more.
6. Turn the ignition switch off.
7. Start the engine again and allow the engine to idle for 10 seconds or more.
8. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
9. Read the DTCs.

   Result

   Result	Proceed to
   DTC P0365, P0367 or P0368 is output	A
   DTC is not output	B

   HINT:

   If the engine does not start, replace the ECM.

B → END

A: Go to next step

1. Adjust the valve timing. Refer to INSTALLATION .

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Clear DTCs. Refer to DTC CHECK / CLEAR .
5. Start the engine and allow the engine to idle for 10 seconds or more.
6. Turn the ignition switch off.
7. Start the engine again and allow the engine to idle for 10 seconds or more.
8. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
9. Read the DTCs.

   Result

   Result	Proceed to
   DTC is not output	A
   DTC P0365, P0367 or P0368 is output	B

   HINT:

   If the engine does not start, replace the ECM.

B → See step   14

A → END

1. Disconnect the camshaft position sensor (for exhaust camshaft) connector.

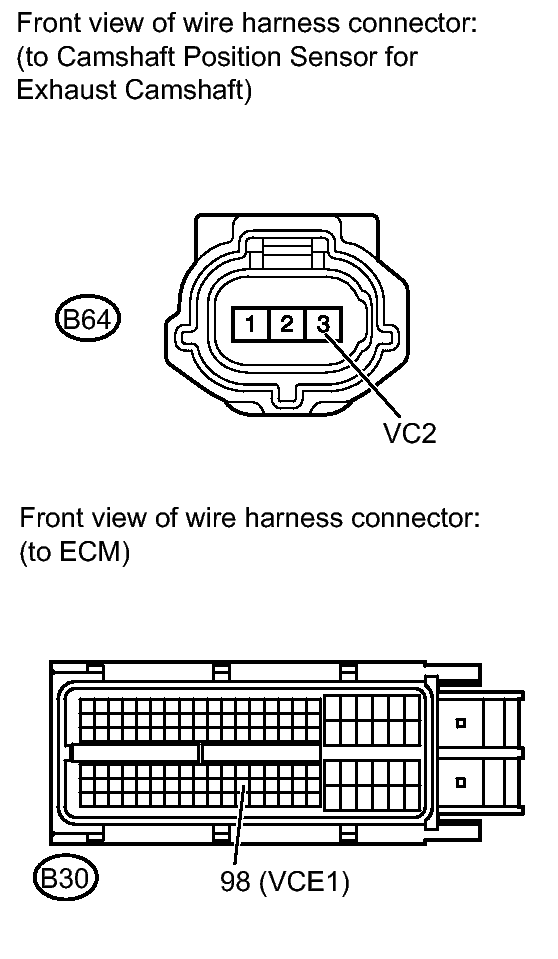

   Fig 4: Identifying Camshaft Position Sensor And ECM Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   B64-3 (VC2) - B30-98 (VCE1)	Always	Below 1 Ω

   Standard Resistance (Check for Short)

   Tester Connection	Condition	Specified Condition
   B64-3 (VC2) or B30-98 (VCE1) - Body ground	Always	10 kΩ or higher

4. Reconnect the camshaft position sensor (for exhaust camshaft) connector.
5. Reconnect the ECM connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   14
