ACIS Control Circuit: Description

This circuit opens and closes the Intake Air Control Valve (IACV) in response to the engine load in order to increase the intake efficiency (ACIS: Acoustic Control Induction System).

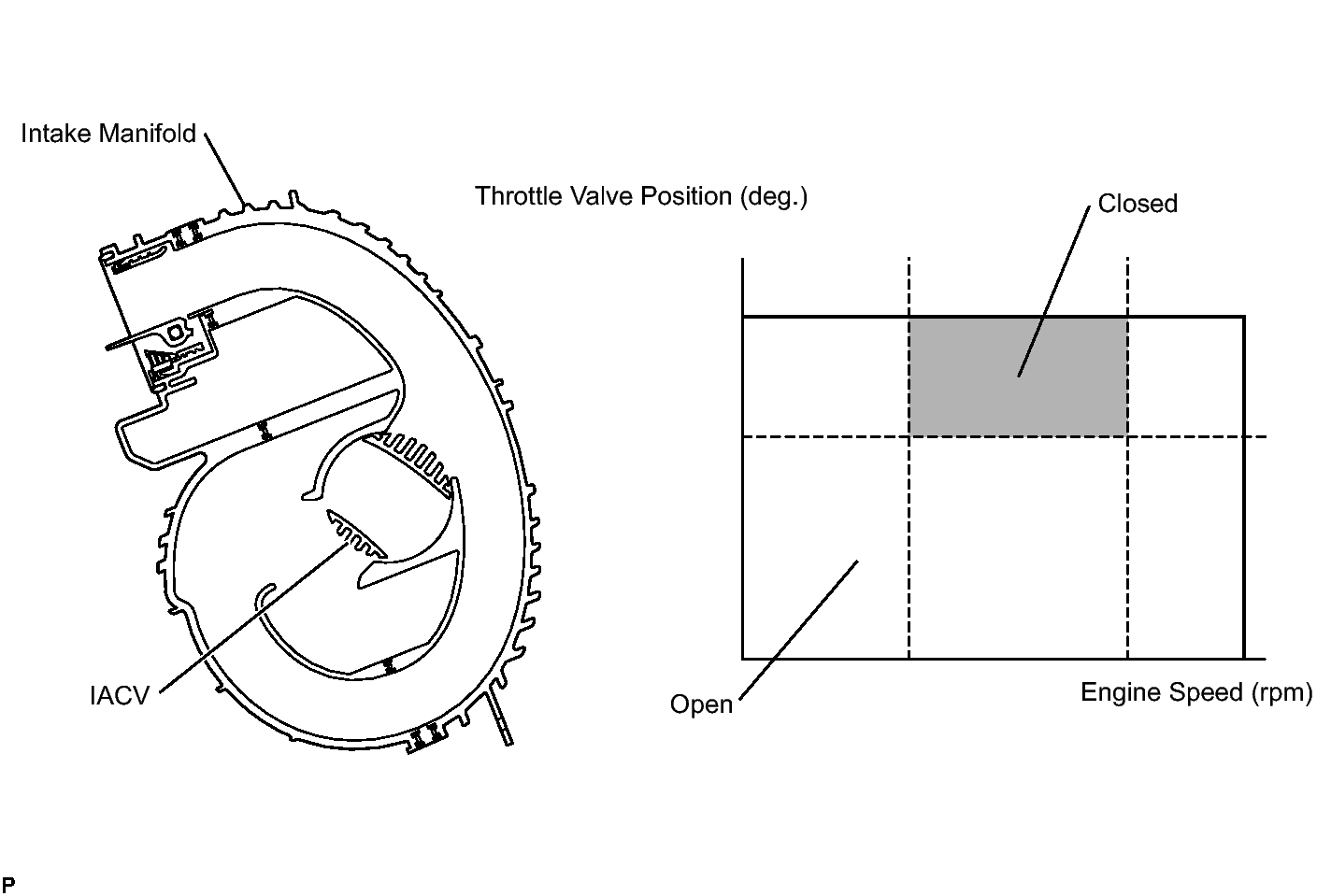

Fig 1: Identifying Throttle Valve Position Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
