System Diagram

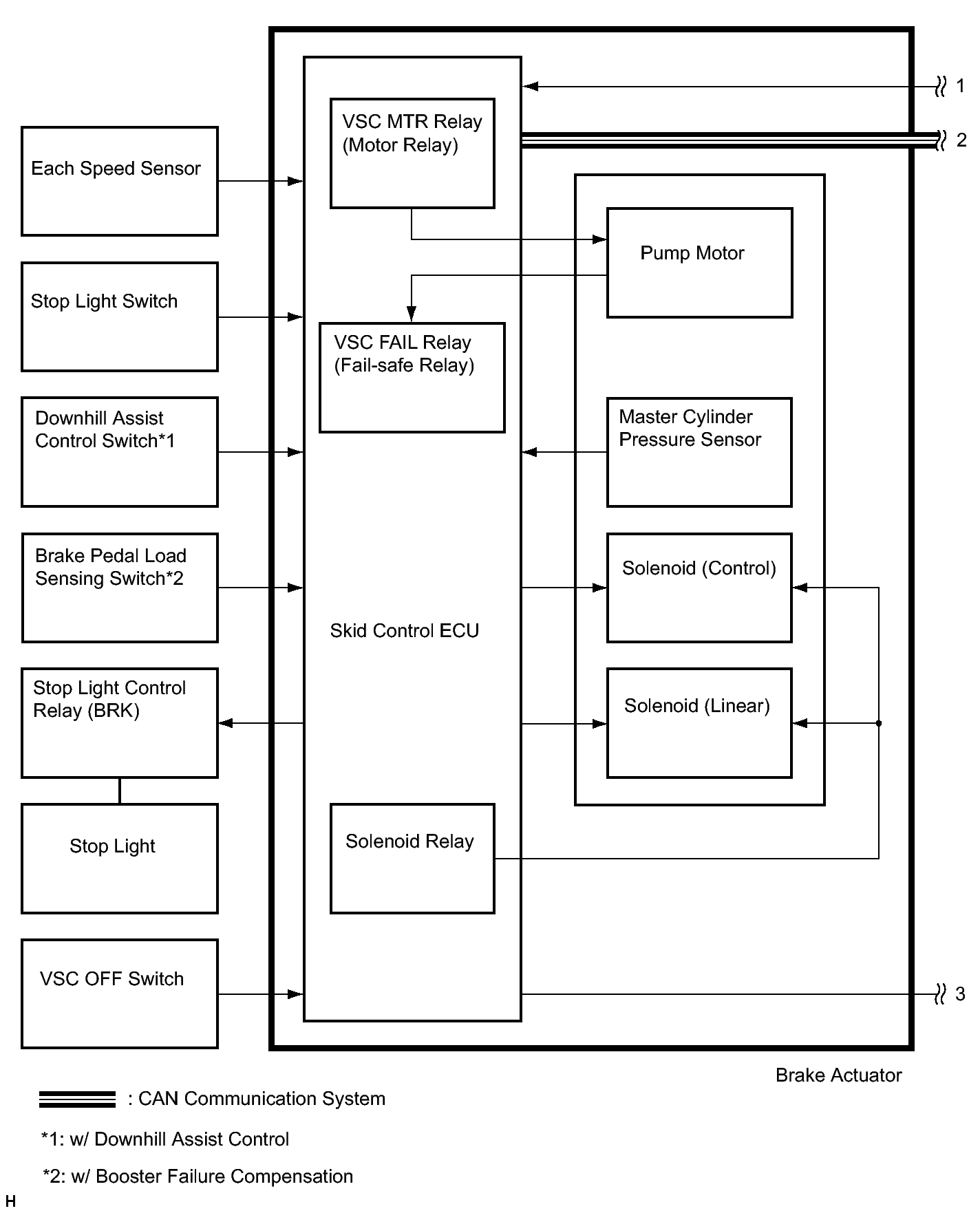

Fig 1: Vehicle Stability Control System Diagram (1 Of 2)
GTY227439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

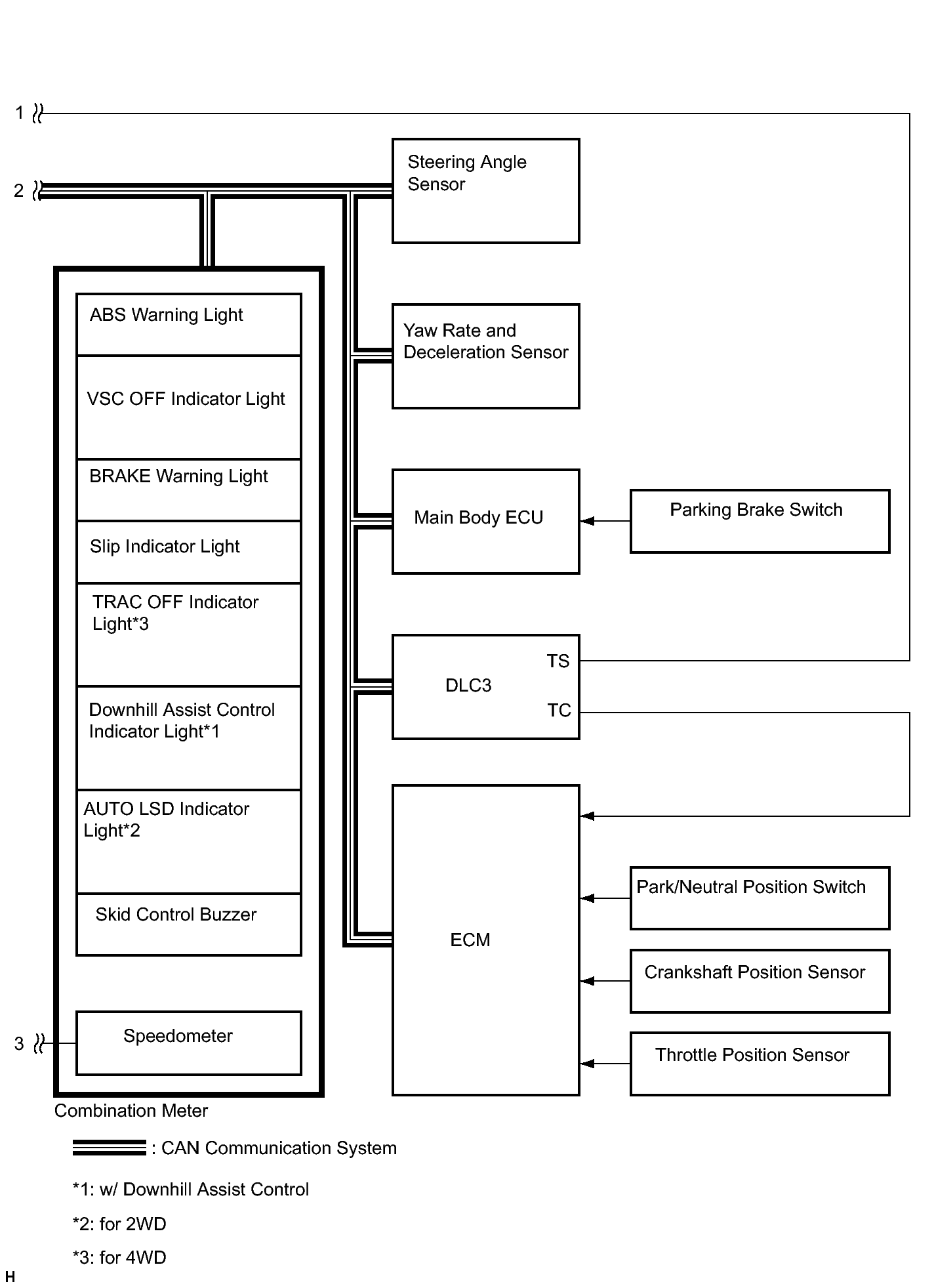

Fig 2: Vehicle Stability Control System Diagram (2 Of 2)
GTY245388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
