Key Reminder (w/o Smart Key System): Notes

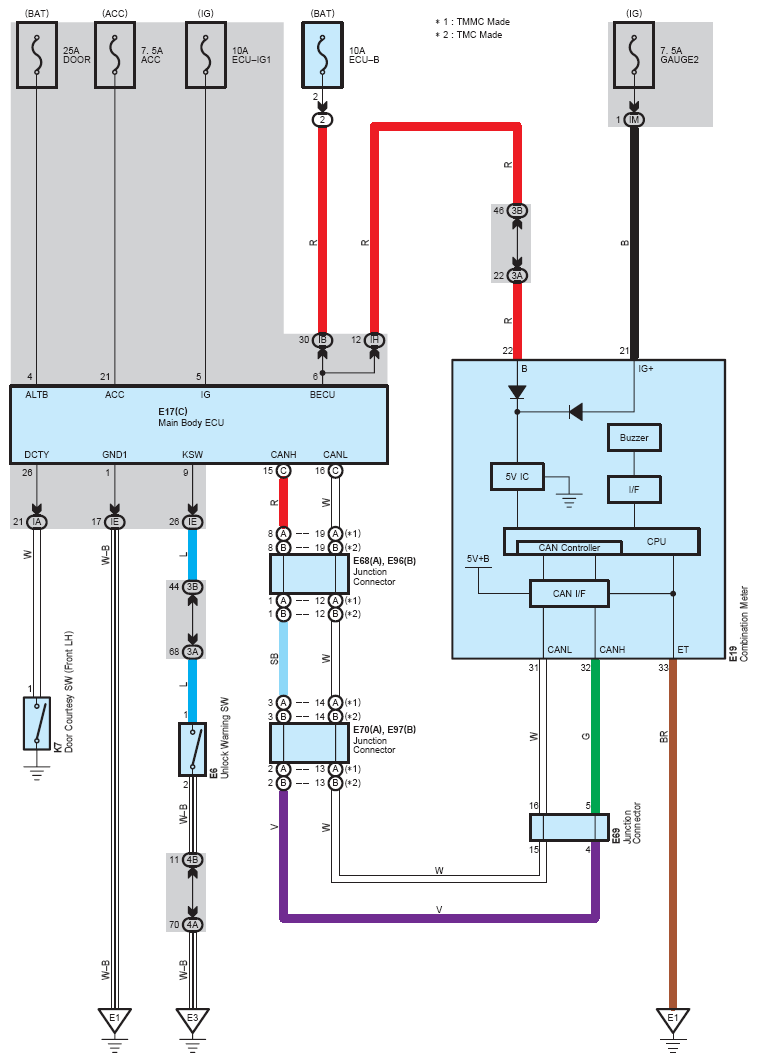

Fig 1: Key Reminder (w/o Smart Key System) Wiring Diagram
G07130559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
