DTC B2786: No Response from Steering Lock ECU: Wiring Diagram

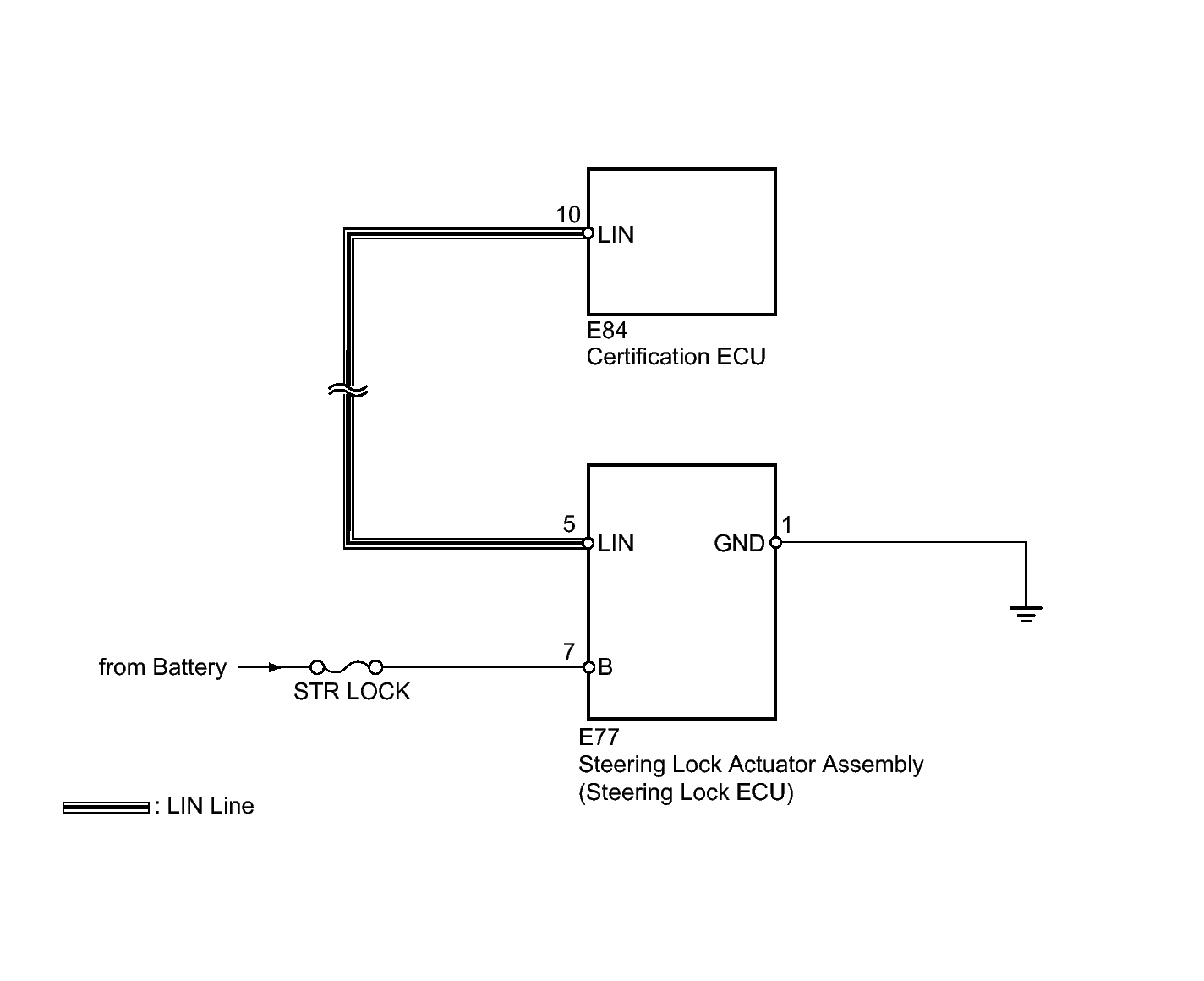

Fig 1: Steering Lock ECU - Wiring Diagram
GTY240647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
