Steering Column Assembly: Removal: Removal

WARNING:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing the steering column

Refer to PRECAUTION .

PLACE FRONT WHEELS FACING STRAIGHT AHEAD
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE STEERING PAD . Refer to REMOVAL - Step 2
REMOVE STEERING WHEEL ASSEMBLY
1. Remove the nut and place matchmarks on the steering wheel and steering column.

  Fig 1: Identifying Matchmarks On Steering Wheel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the steering wheel.

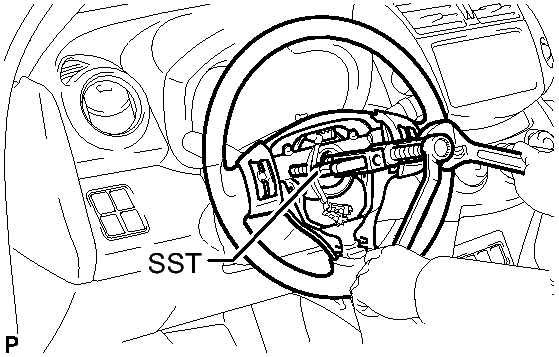

  Fig 2: Removing Steering Wheel Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09950-50013
    - 09951-05010
    - 09952-05010
    - 09953-05020
    - 09954-05021
  NOTE:
  Apply a small amount of grease to the threads and tip of SST (center bolt) before use.
REMOVE STEERING COLUMN COVER
NOTE:
Failure to follow the correct removal procedure may damage the claws.
1. Release the tilt lever.
2. Press the both sides of the lower steering column cover to disengage the 2 claws.

  Fig 3: Identifying Lower Steering Column Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Insert your finger through the tilt lever opening in the lower steering column cover and disengage the claw.

  Fig 4: Identifying Lower Steering Column Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disengage the 2 claws and remove the lower steering column cover.

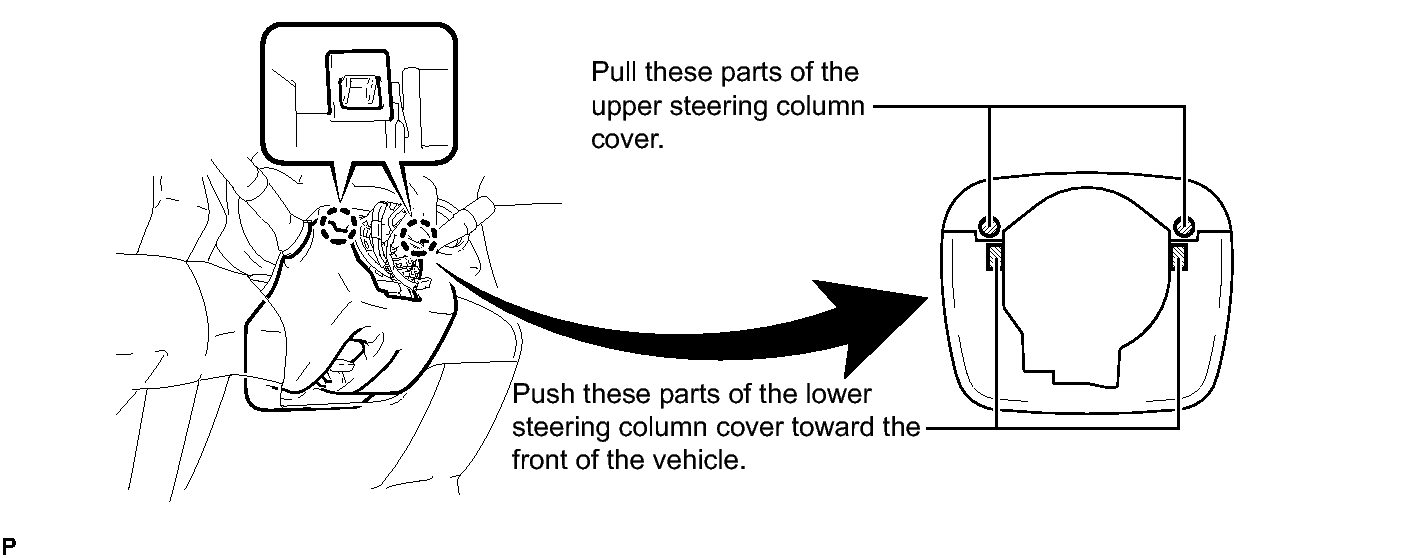

  Fig 5: Pulling Lower Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The claws can be disengaged by pushing the lower steering column cover toward the front of the vehicle while pulling the upper steering column cover.

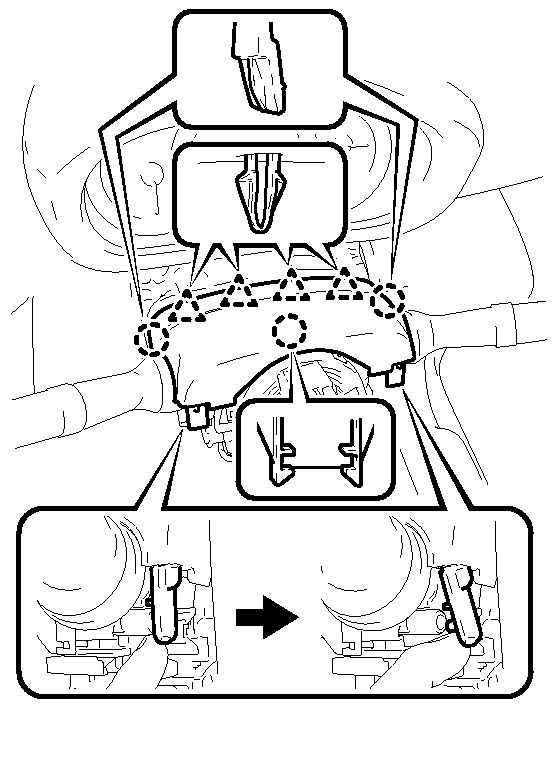

5. Disengage the 3 claws, 4 clips, and 2 pins and separate the upper steering column cover.

  Fig 6: Identifying Upper Steering Column Cover Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPIRAL CABLE SUB-ASSEMBLY
1. Disconnect all connectors from the turn signal switch with spiral cable.

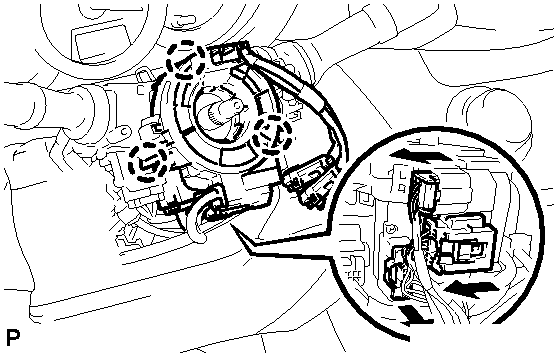

  Fig 7: Locating Spiral Cable Connector And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION SWITCH ASSEMBLY
1. Use pliers to hold the clamp and raise the claw with a screwdriver. Remove the combination switch assembly from the steering column assembly.

  Fig 8: Locating Combination Switch Assembly Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
1. Remove the instrument panel. Refer to REMOVAL .
DISCONNECT POWER STEERING ECU

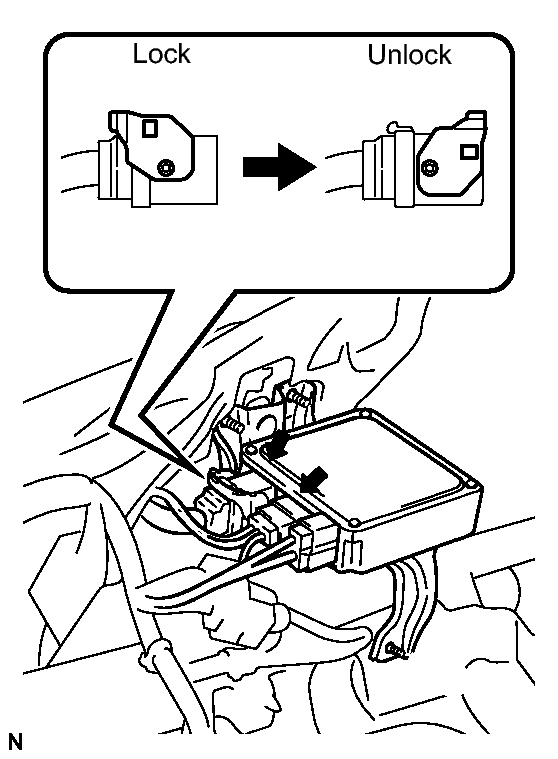

Fig 9: Locating Power Steering Column Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Detach the power steering motor wire harness and torque sensor wire harness clamps from the power steering ECU side.
2. Disconnect the 2 steering column connectors from the power steering ECU.
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL . Refer to REMOVAL - Step 21
REMOVE COLUMN HOLE COVER SILENCER SHEET

Fig 10: Locating Column Hole Cover Silencer Sheet Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Turn back the floor carpet, remove the 2 clips and remove the column hole cover silencer sheet.
REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

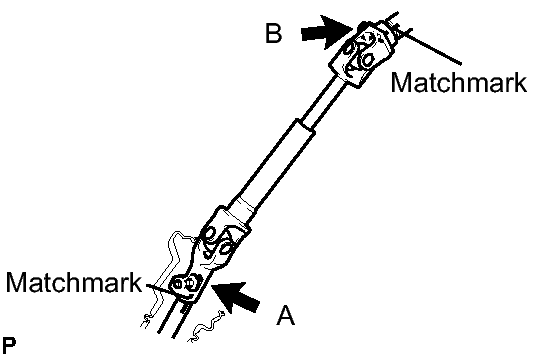

Fig 11: Identifying Matchmarks On Steering Intermediate Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Place matchmarks on the steering intermediate shaft and steering gear.
2. Remove bolt A and detach the steering assembly from the steering gear.
3. Place matchmarks on the steering intermediate shaft and steering column.
4. Remove bolt B and detach the steering intermediate shaft from the steering column.
REMOVE BRAKE PEDAL SUPPORT ASSEMBLY
1. Remove the brake pedal support. Refer to REMOVAL .
REMOVE STEERING COLUMN ASSEMBLY
1. Disconnect all connectors and detach all wire harness clamps from the steering column.
2. Remove the bolt and 2 nuts and remove the steering column from the instrument panel reinforcement.

  Fig 12: Locating Brake Pedal Support Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
