INSTALL KNOCK SENSOR

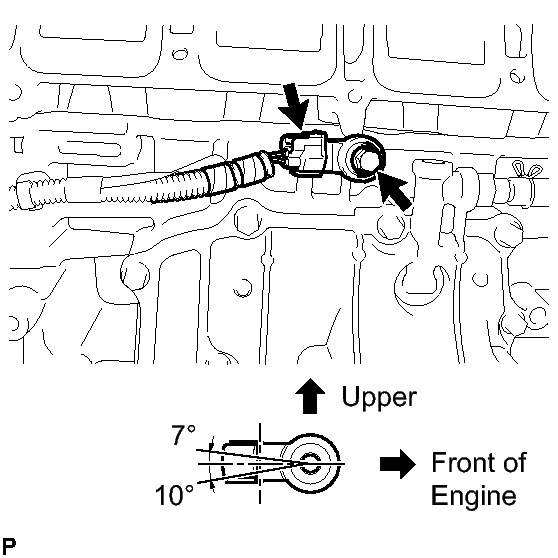

1. Install the sensor with the bolt so that the sensor is angled as shown in the illustration.

  Fig 1: Installing Knock Sensor And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  NOTE:
  The acceptable installation angle of the sensor is between 7° upward and 10° downward from the horizontal position.
2. Connect the sensor connector.
INSTALL INTAKE MANIFOLD
1. Install the intake manifold. Refer to INSTALLATION .
