Customize Parameters

HINT:

The items in the table below can be customized.

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Key / Utility / Customize Setting.
5. Select the setting by referring to the table below.
   SMART KEY



   Tester Display	Default	Content	Setting
   Ignition Available Area	All	Function that switches the entry ignition detection area	Front or All
   Park Wait Time	2.5 s	Function that sets waiting time to permit opening door after door is locked with entry lock function	0.5 s, 1.5 s, 2.5 s, or 5 s
   Back Door Opening Operation	Long	Function that opens the back door when the driver has the key and presses back door opener switch assembly (opener switch)	Long, Twice or OFF
   Key Low Battery Warning	ON	Function that warns driver that key battery is weak	ON or OFF
   Door Unlock Mode	Driver	Function that chooses the doors to be operated by entry unlock operation	All or Driver
   Touch Activation Over Threshold	Active	The function that limits the consecutive entry lock operation to only 2 times can be changed between Active and Not Active. When in Not Active mode, there is no limit for the number of times that the consecutive entry lock operation can be performed.	Active or Not Active

6. Customizing with smart power slide door
   1. Turn the engine switch on (IG).
   2. Enter the following menus: Body Electrical / RR Door or RL Door/ Utility / Customize.
   3. Select the setting by referring to the table below.
      RR DOOR OR RL DOOR



      Tester Display	Default	Content	Setting
      Outside PSD SW Operation	ON	Function to change the operation method of operating the smart power slide door.	ON or OFF

1. Check that the power source mode is OFF and the LED on the key is not blinking. Press the lock switch and one of the other switches on the key at the same time for approximately 5 seconds while the key is in the detection area.

   Driver side doors unlock default setting:

   When the switches are pressed and held for 5 seconds, the entry door unlock mode changes to the mode that is not currently selected.

   NOTE:

   After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.

   • Driver side doors unlock mode:

     When the driver door touch sensor is touched, only the driver side doors unlock. When another touch sensor is touched, all doors unlock.

   • All door unlock mode:

     When any touch sensor is touched, all doors unlock.

2. The certification ECU (smart key ECU assembly) receives this signal from the door control receiver assembly and changes the smart key system to the entry unlock mode.
3. The certification ECU (smart key ECU assembly) sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been changed.

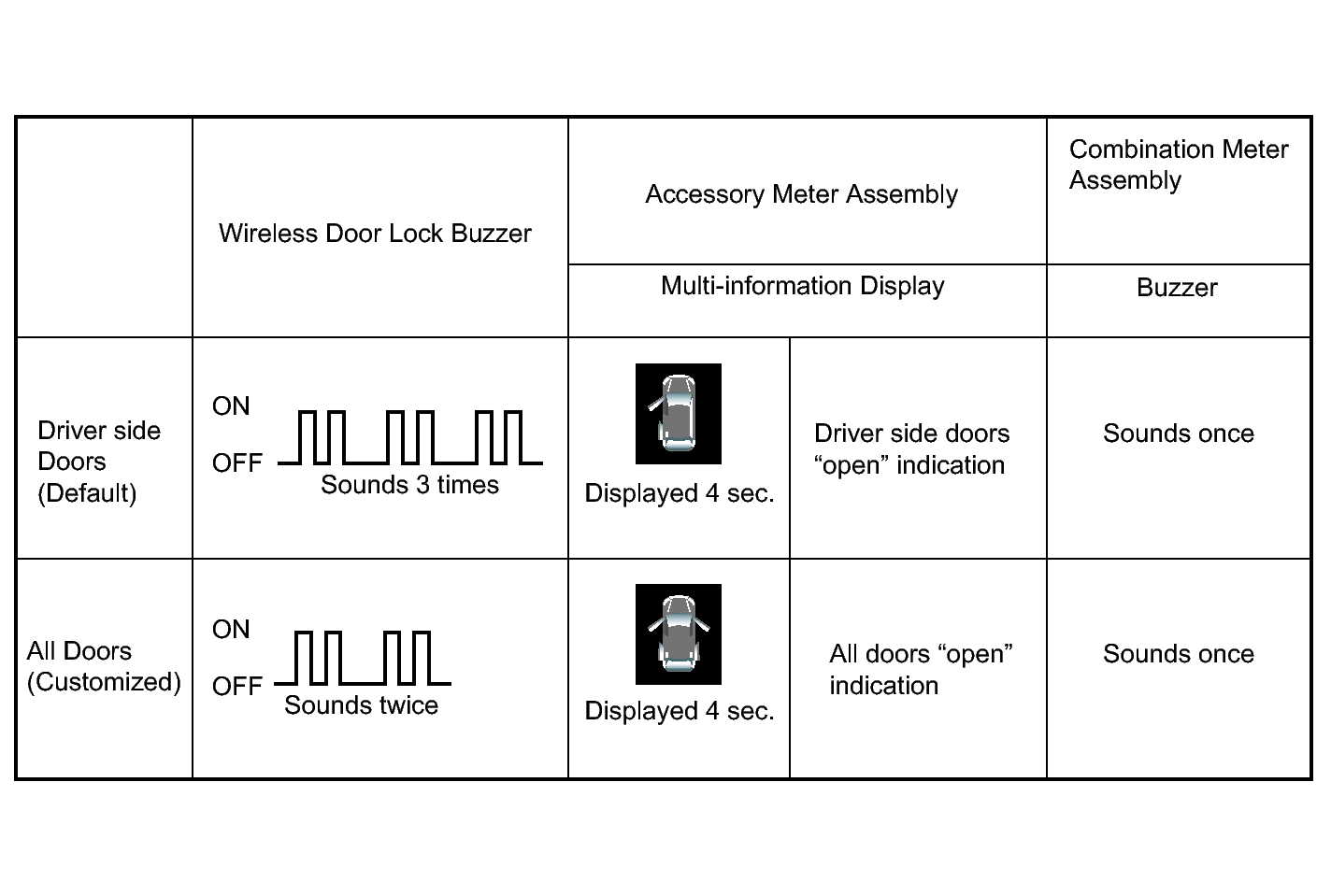

   Fig 1: Identifying Entry Unlock Mode Switching Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   The procedure only changes the entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.

The electrical key cancel operation disables the following functions:

• Entry Unlock/Lock
• Entry Ignition
• Entry Back Door Open
• Electrical Key Lock-in Prevention
• Warning

1. The operation procedures are as follows:

   Precondition:

   Engine switch off, driver side door closed and unlocked.

   1. Push the unlock switch of the key once.
   2. Open the driver door within 5 seconds.
   3. Push the unlock switch of the key twice within 5 seconds.
   4. Close and open the driver door twice within 30 seconds.

      (Driver door: Close → Open → Close → Open)

   5. Push the unlock switch of the key twice within 5 seconds.
   6. Close and open the driver door within 30 seconds.

      (Driver door: Close → Open)

   7. Close the driver door within 5 seconds.

      When electrical key cancel is activated, the wireless door lock buzzer sounds twice.

      To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.
