Combination Meter, Multi Display and Parking Assist (Rear View Monitor w/o Navigation System): Notes

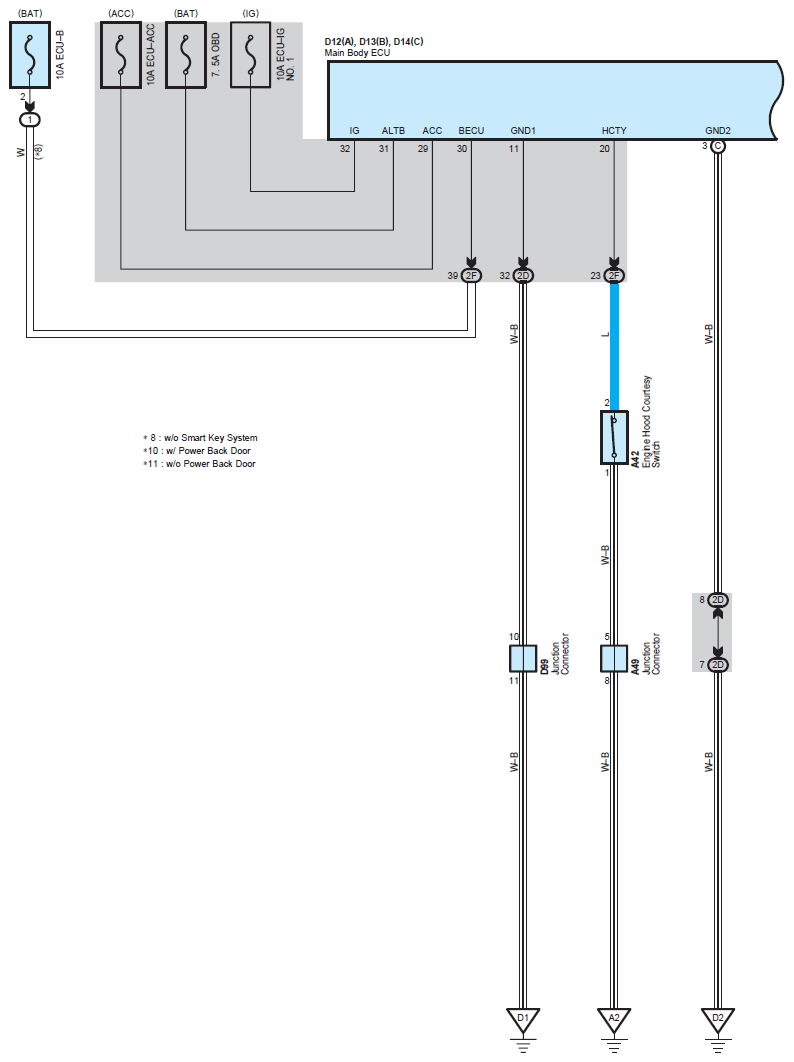

Fig 1: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (1 Of 14)
G07113144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

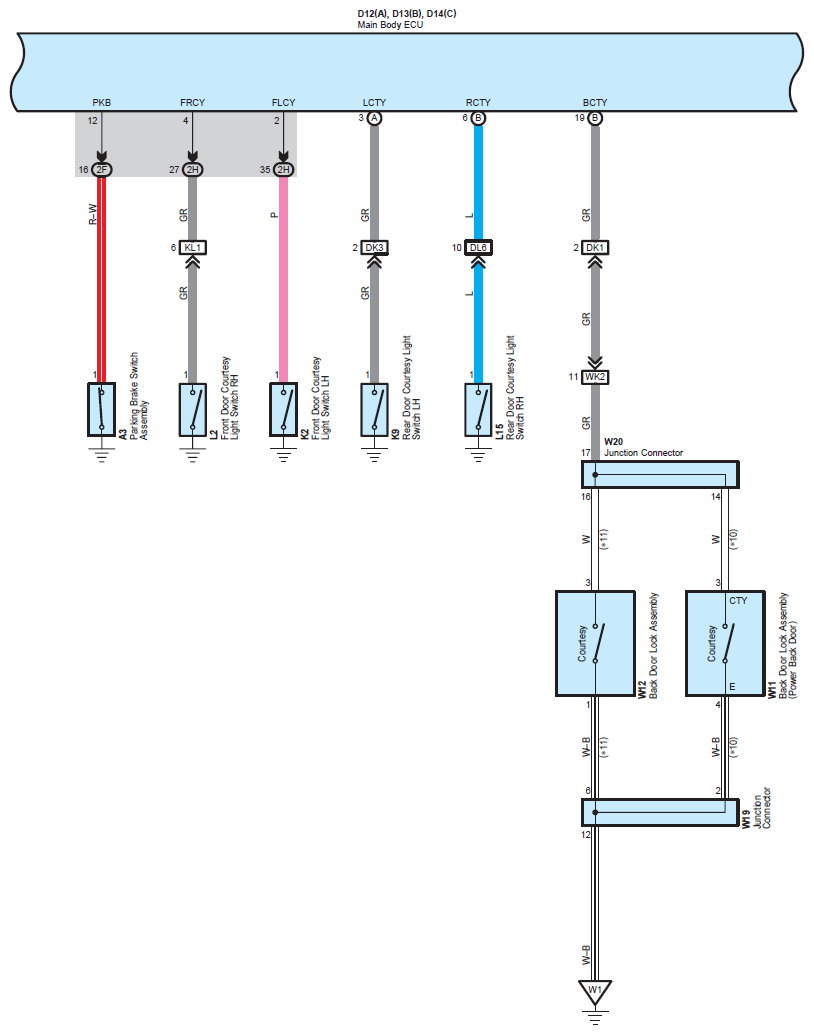

Fig 2: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (2 Of 14)
G07113145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

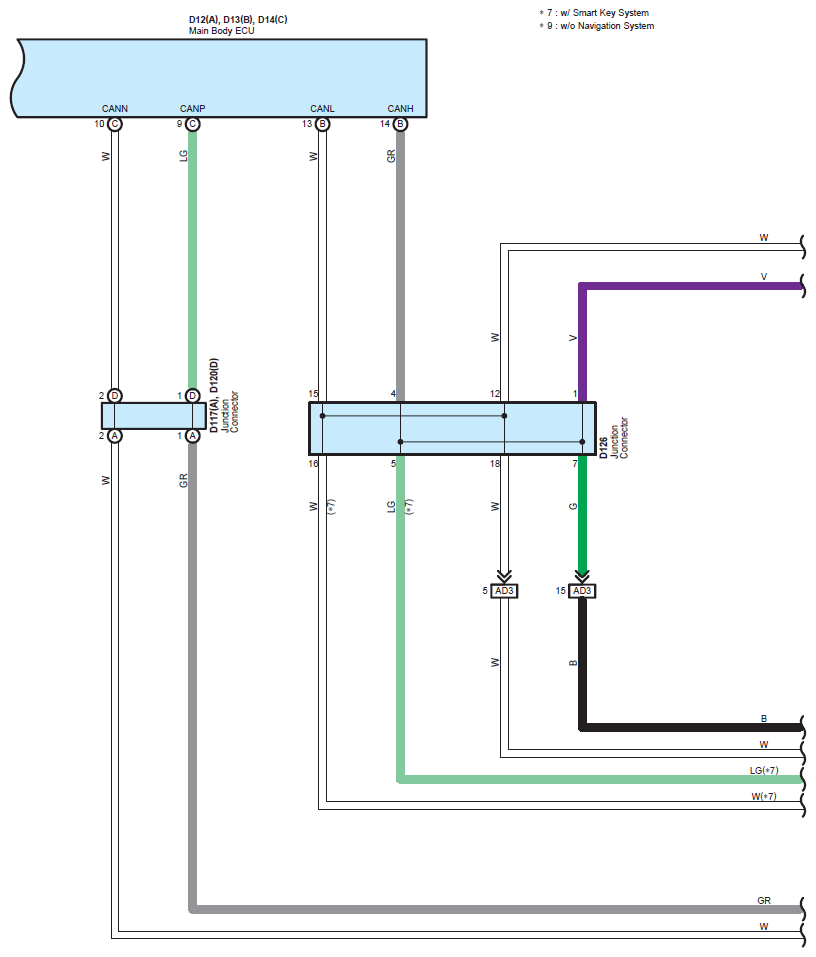

Fig 3: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (3 Of 14)
G07113146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

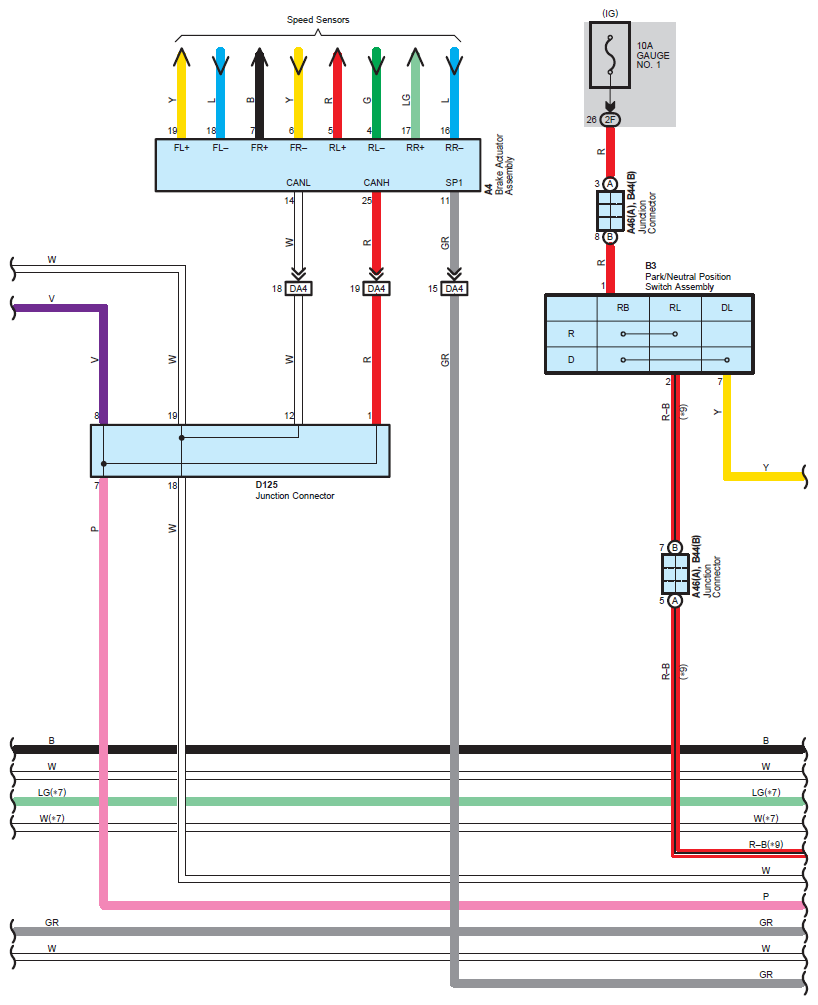

Fig 4: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (4 Of 14)
G07113147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

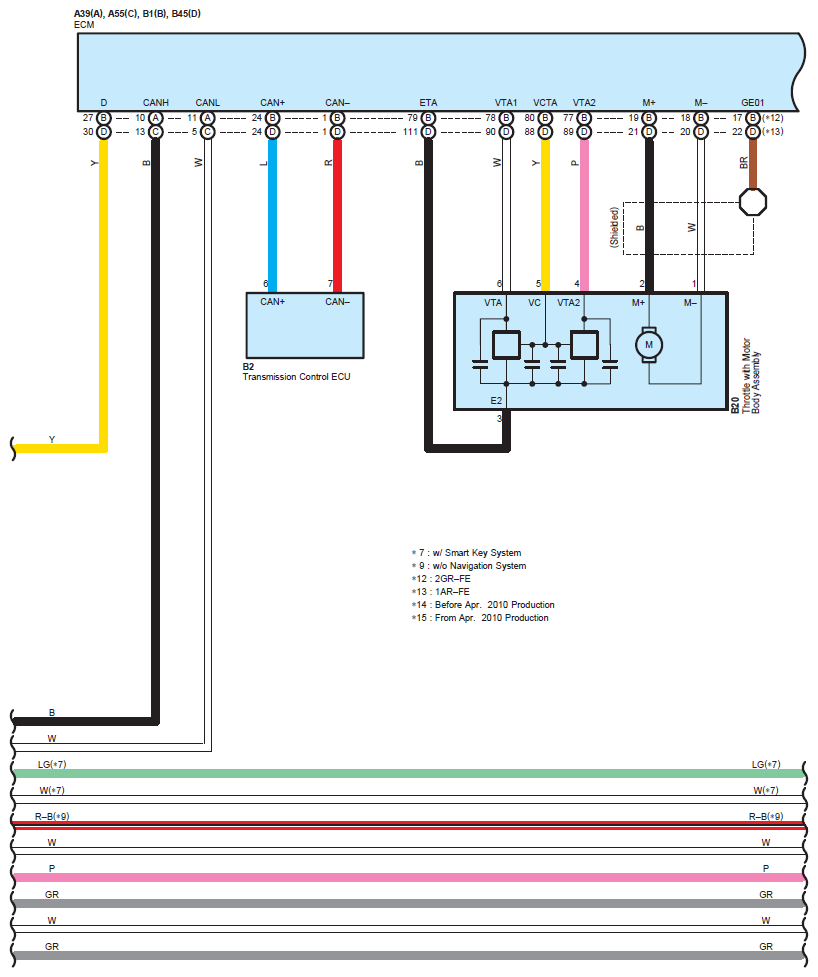

Fig 5: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (5 Of 14)
G07113148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

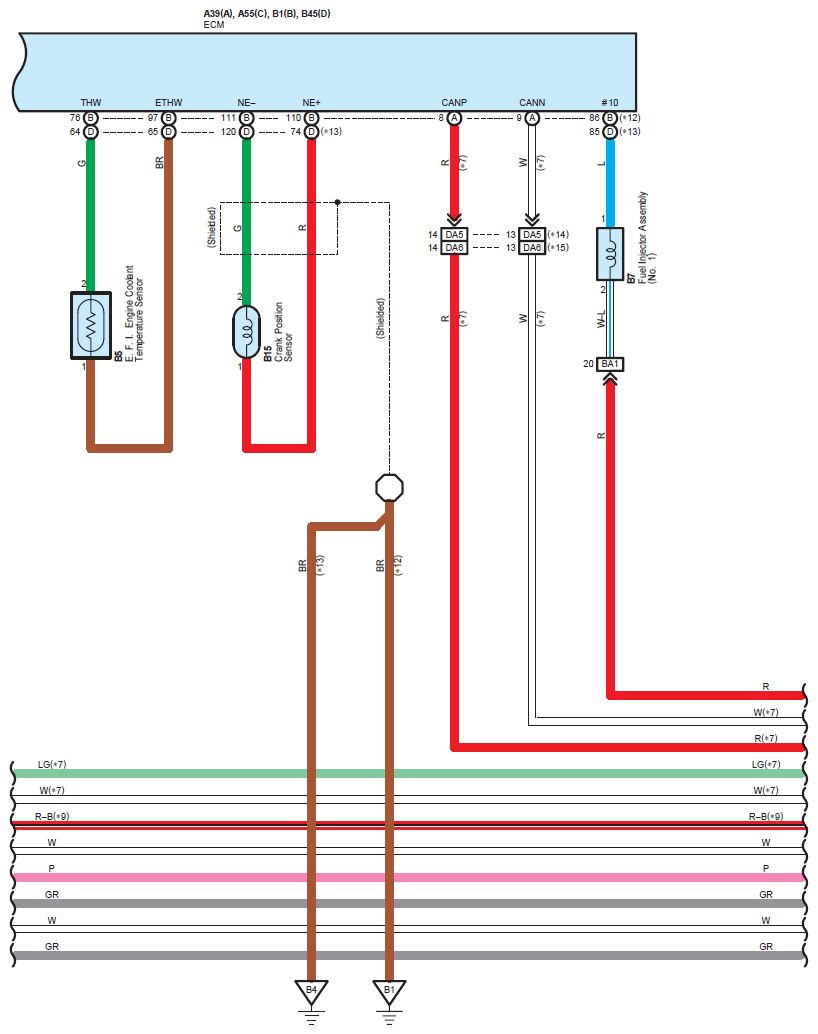

Fig 6: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (6 Of 14)
G07113149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

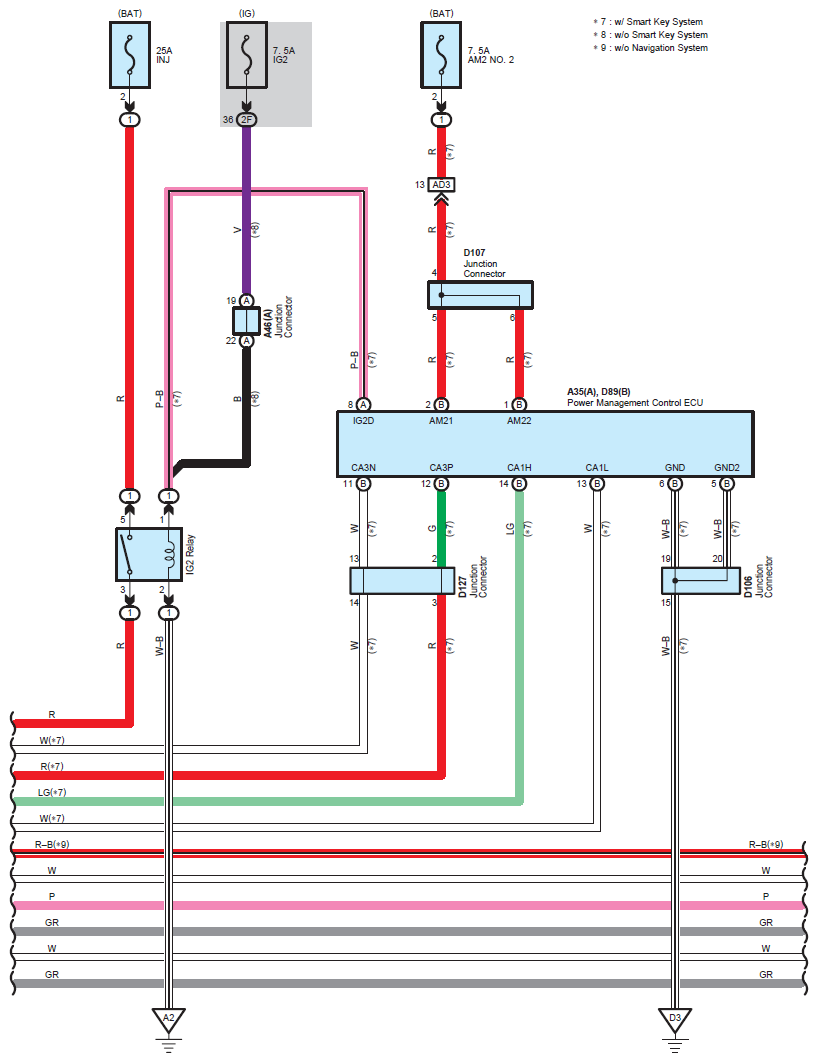

Fig 7: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (7 Of 14)
G07113150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

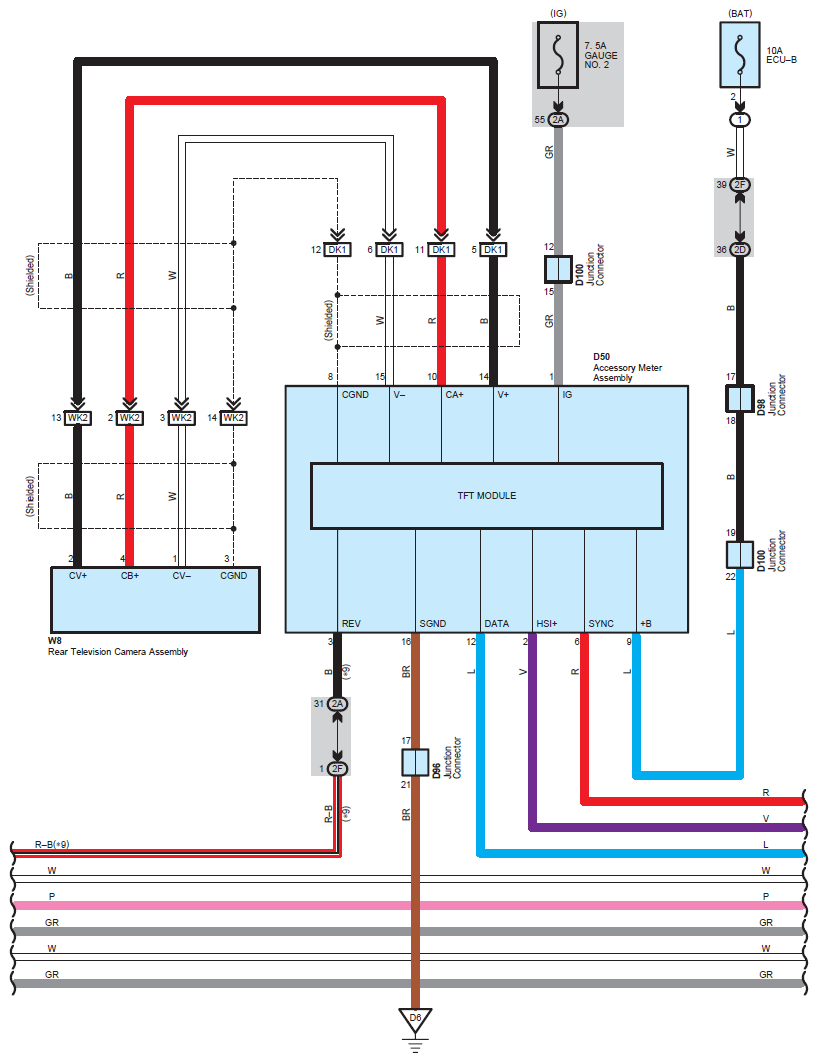

Fig 8: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (8 Of 14)
G07113151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

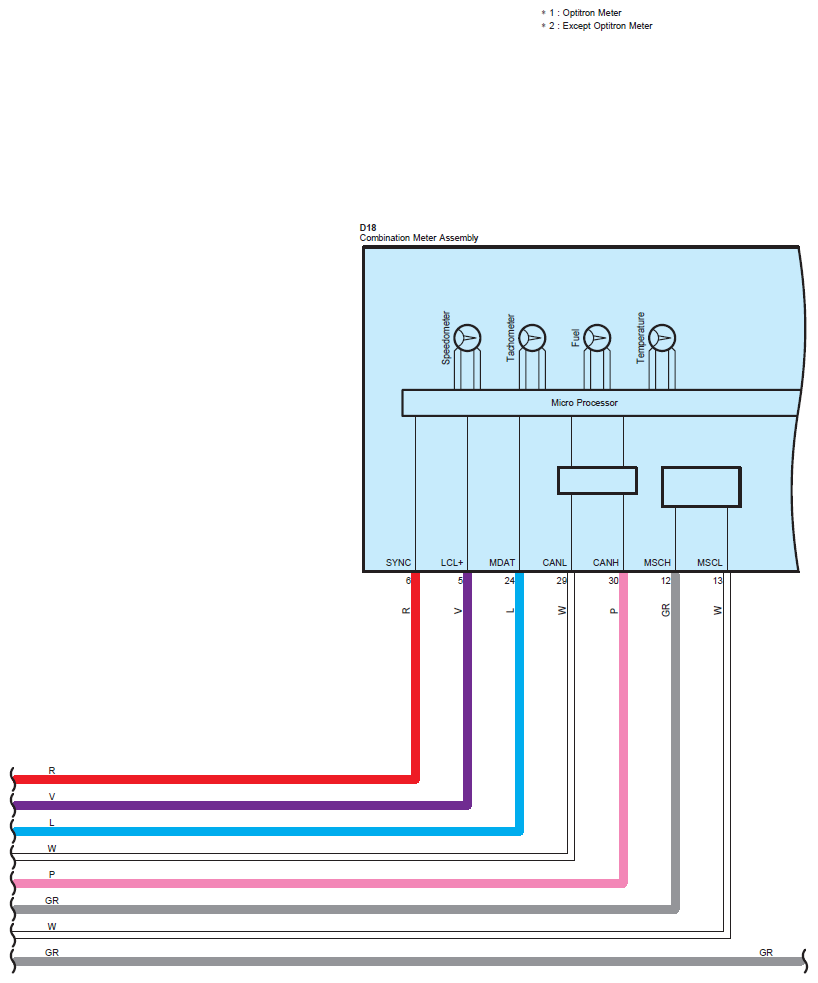

Fig 9: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (9 Of 14)
G07113152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

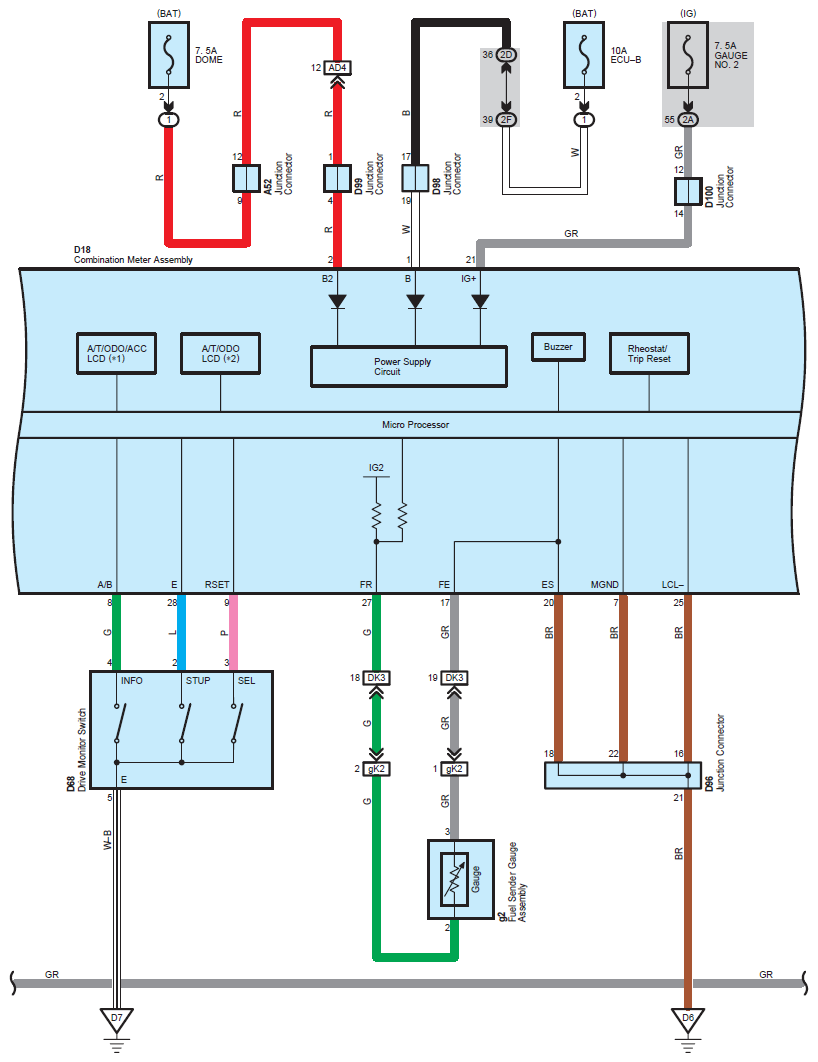

Fig 10: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (10 Of 14)
G07113153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

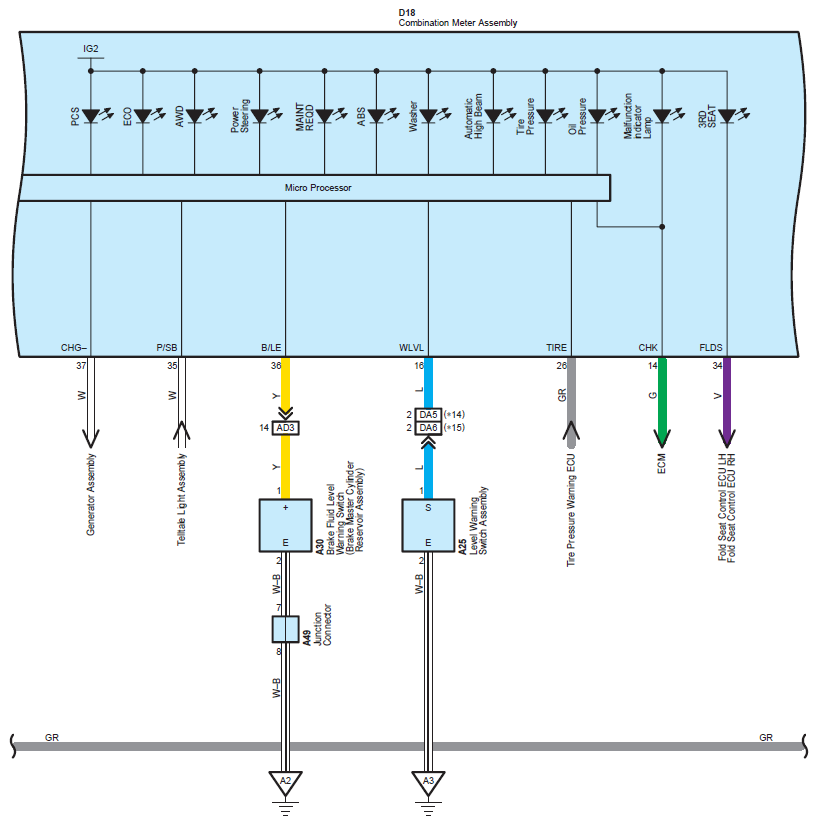

Fig 11: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (11 Of 14)
G07113154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

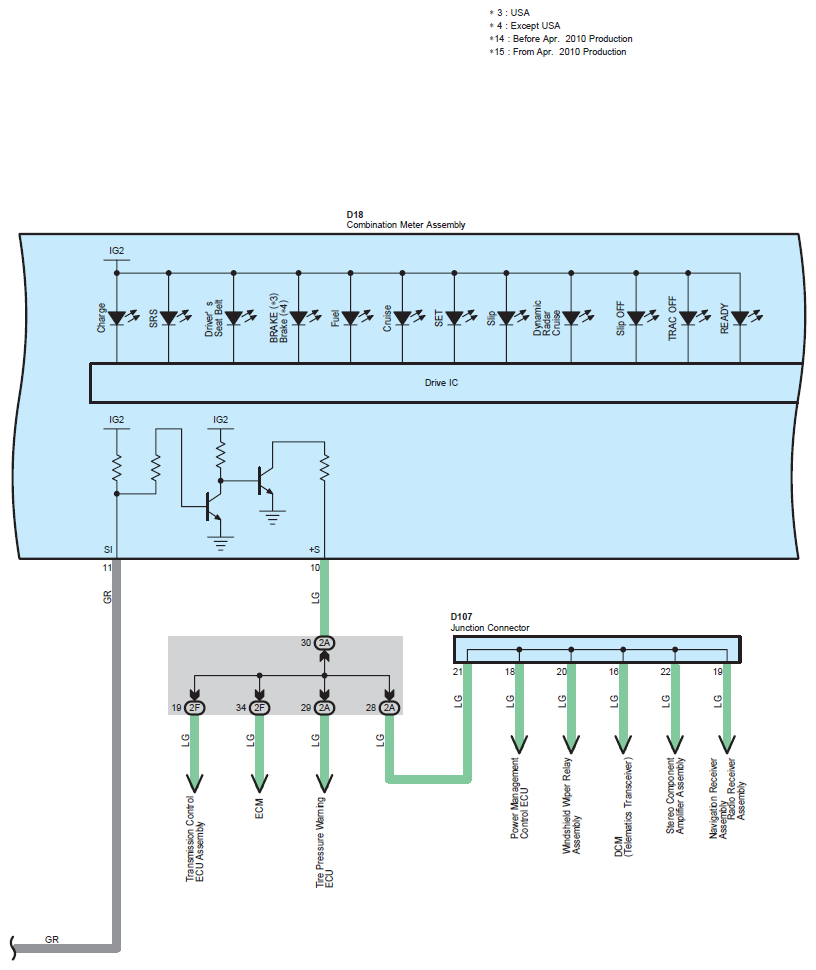

Fig 12: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (12 Of 14)
G07113155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

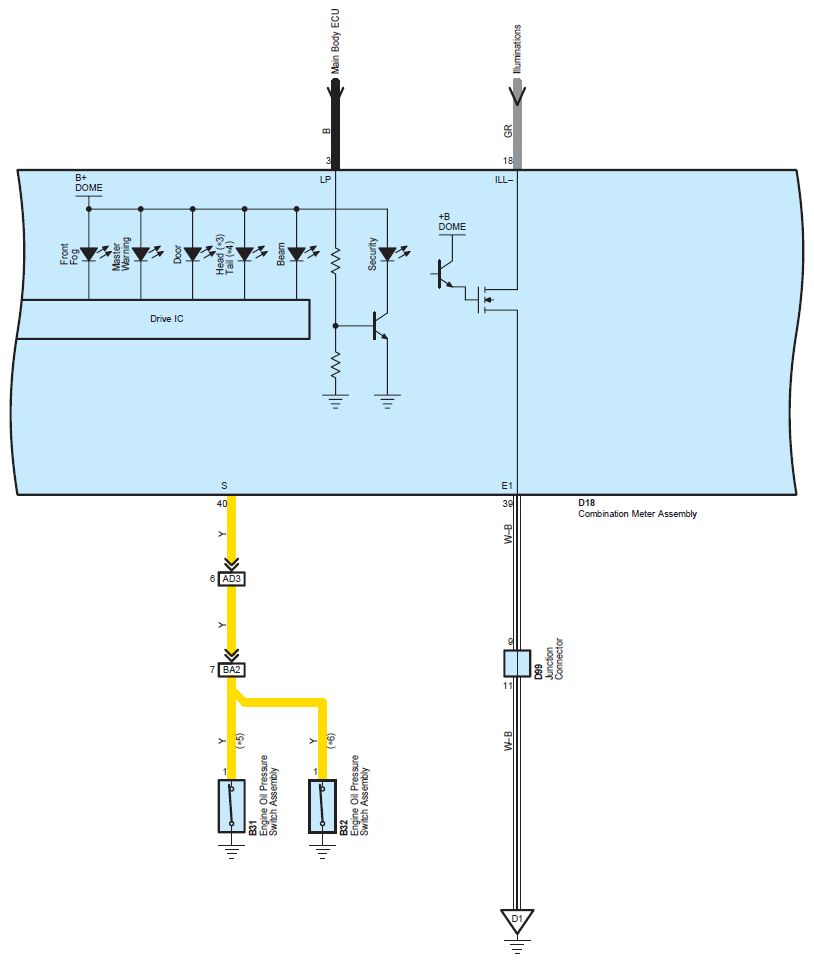

Fig 13: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (13 Of 14)
G07113156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

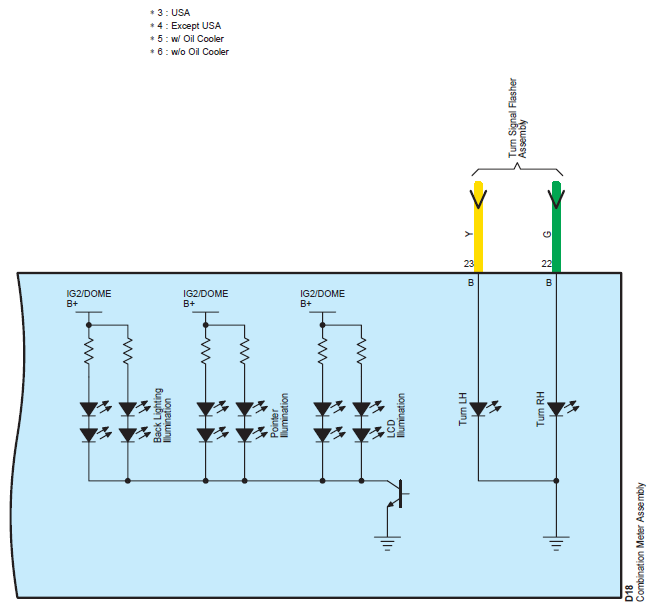

Fig 14: Combination Meter, Multi Display And Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (14 Of 14)
G07113157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
