Front Speed Sensor: Installation: Installation

HINT:

• Use the same procedure for the LH side and RH side.
• The following procedure is for the LH side.
• If the sensor rotor needs to be replaced, replace it together with the front drive shaft assembly.

1. INSTALL FRONT SPEED SENSOR
   1. Install the No. 1 sensor clamp and front speed sensor with the bolt.

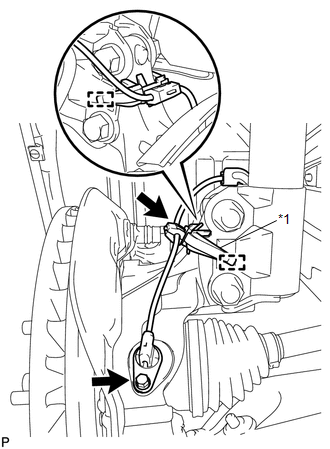

      Fig 1: Installing No. 1 Sensor & Front Speed Sensor Fasteners

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	No. 1 Sensor Clamp

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      NOTE:

      • Prevent foreign matter from attaching to the front speed sensor tip.
      • Firmly insert the front speed sensor body into the knuckle before tightening the bolt.
      • After installing the front speed sensor to the knuckle, make sure that there is no clearance between the front speed sensor stay and knuckle. Also make sure that no foreign matter is stuck between the parts.
      • Before installing the clamp, firmly insert the points of the clamp into the installation holes.
   2. Temporarily install the No. 2 sensor clamp.

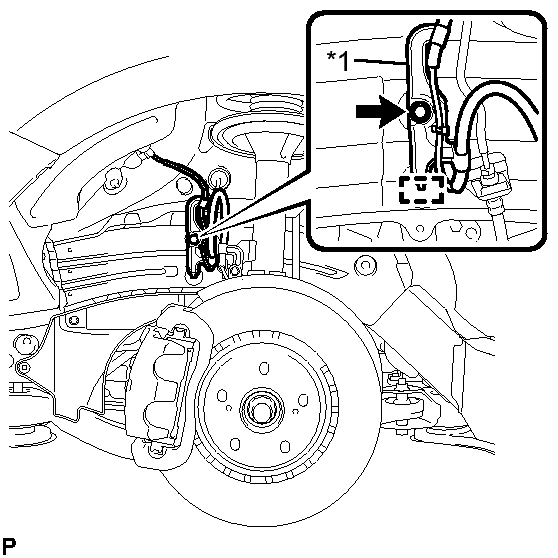

      Fig 2: Installing No. 2 Sensor Fastener

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	No. 2 Sensor Clamp

      NOTE:

      Be sure to insert the No. 2 sensor clamp into the stopper hole while installing the No. 2 sensor clamp.

   3. Install the front brake flexible hose and No. 2 sensor clamp together to the shock absorber with the bolt.

      Torque: 19 N*m (192 kgf*cm, 14 ft.*lbf)

      NOTE:

      • Do not twist the wire harness for the front speed sensor when installing it.
      • A bolt tightens the brake flexible hose and front speed sensor together. Make sure that the flexible hose is positioned over the front speed sensor.
   4. Install the No. 3 sensor clamp to the body with the bolt.

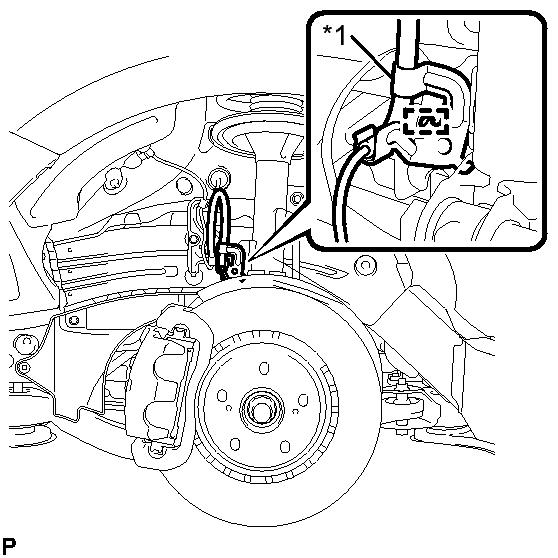

      Fig 3: Installing No. 3 Sensor Fasteners To Body

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	No. 3 Sensor Clamp

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      NOTE:

      Be sure to insert the No. 3 sensor clamp into the stopper hole while installing the No. 3 sensor clamp.

   5. Install the 2 clamps and connect the front speed sensor connector.
2. INSTALL FRONT FENDER LINER  . Refer to INSTALLATION - Step 13
3. INSTALL FRONT WHEEL OPENING EXTENSION PAD  . Refer to INSTALLATION - Step 14
4. INSTALL FRONT WHEEL

   Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

5. CHECK FOR SPEED SENSOR SIGNAL

   Refer to TEST MODE PROCEDURE
