Ignition (2GR-FE): Notes

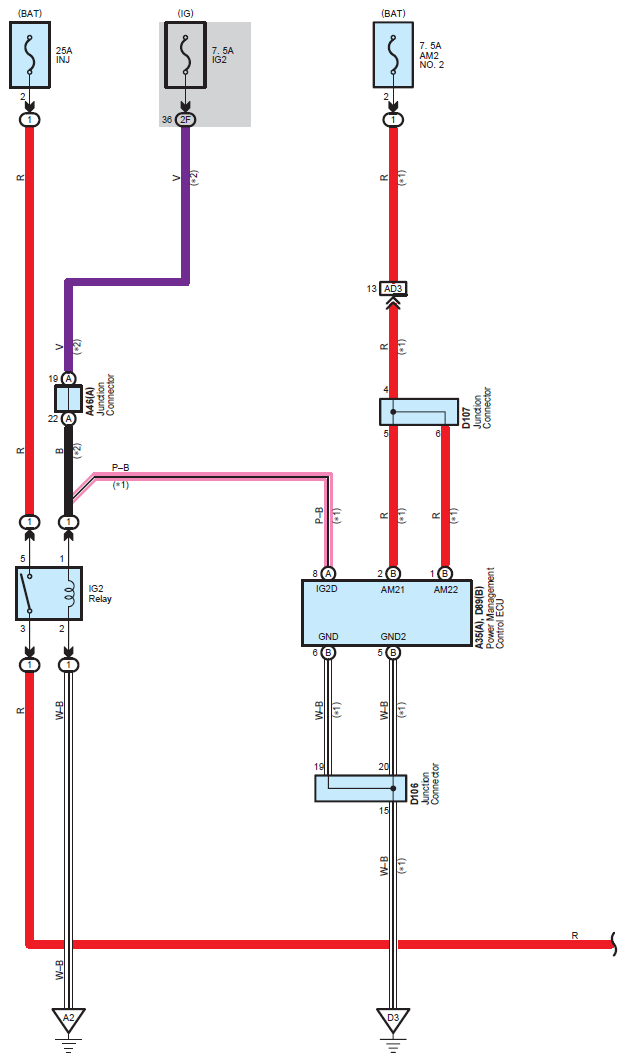

Fig 1: Ignition (2GR-FE) System Wiring Diagram (1 Of 4)
G07112845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

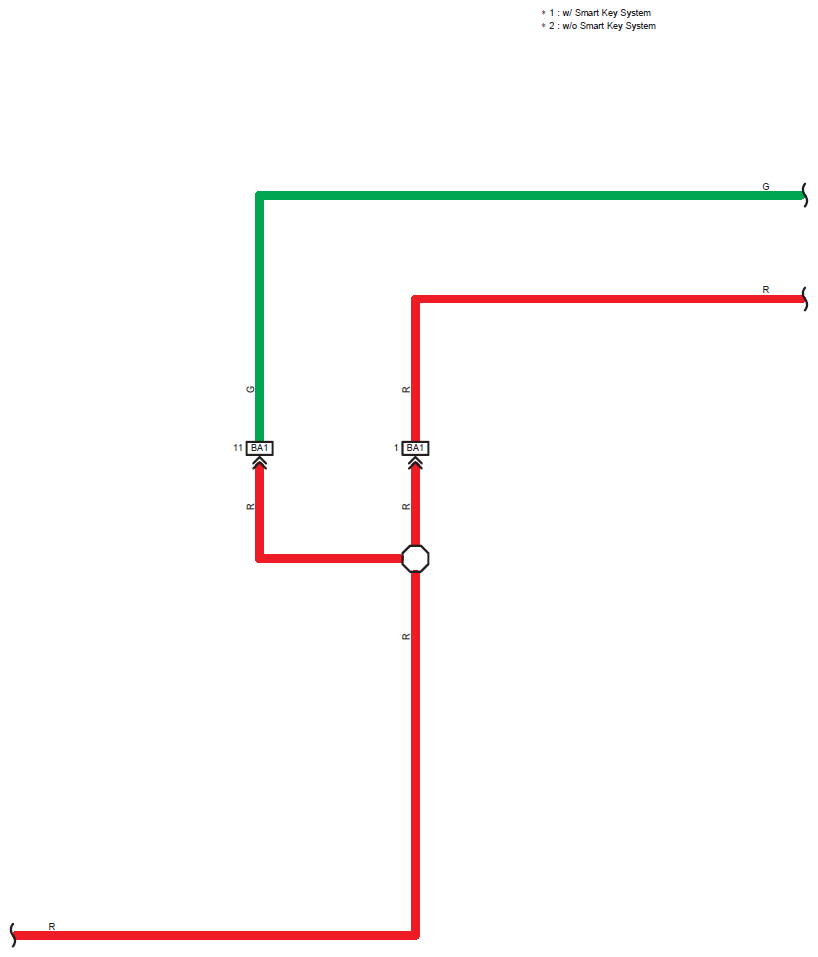

Fig 2: Ignition (2GR-FE) System Wiring Diagram (2 Of 4)
G07112846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

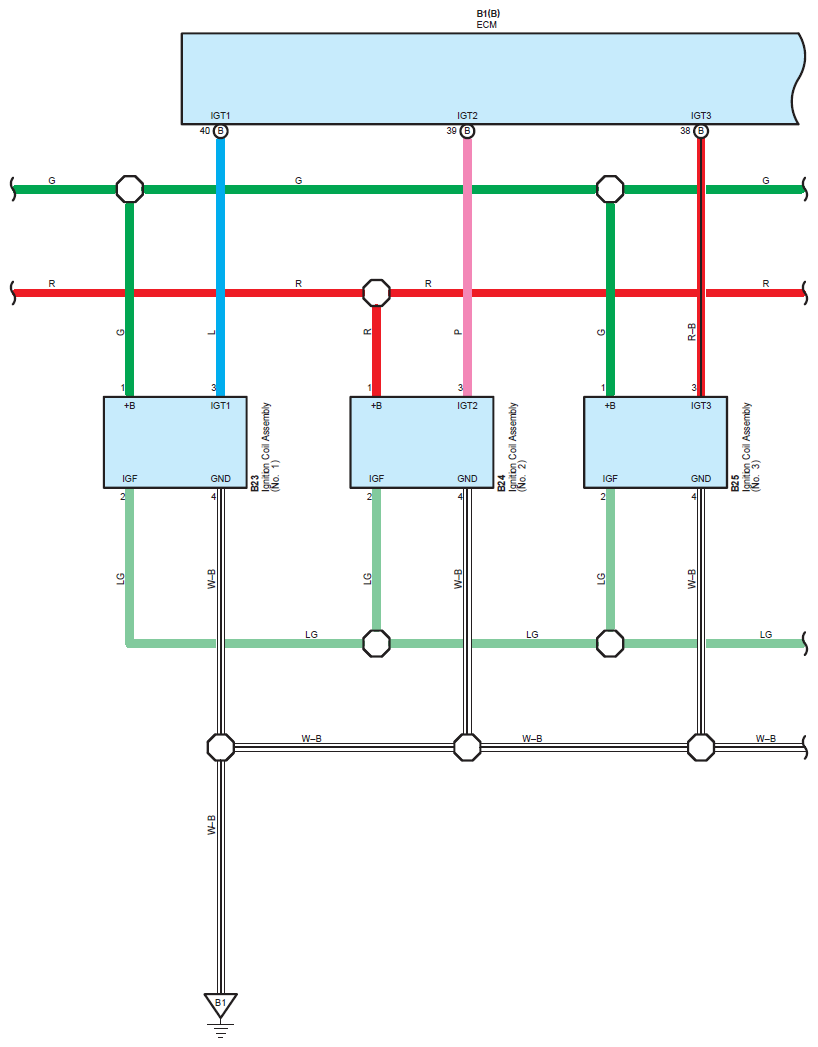

Fig 3: Ignition (2GR-FE) System Wiring Diagram (3 Of 4)
G07112847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

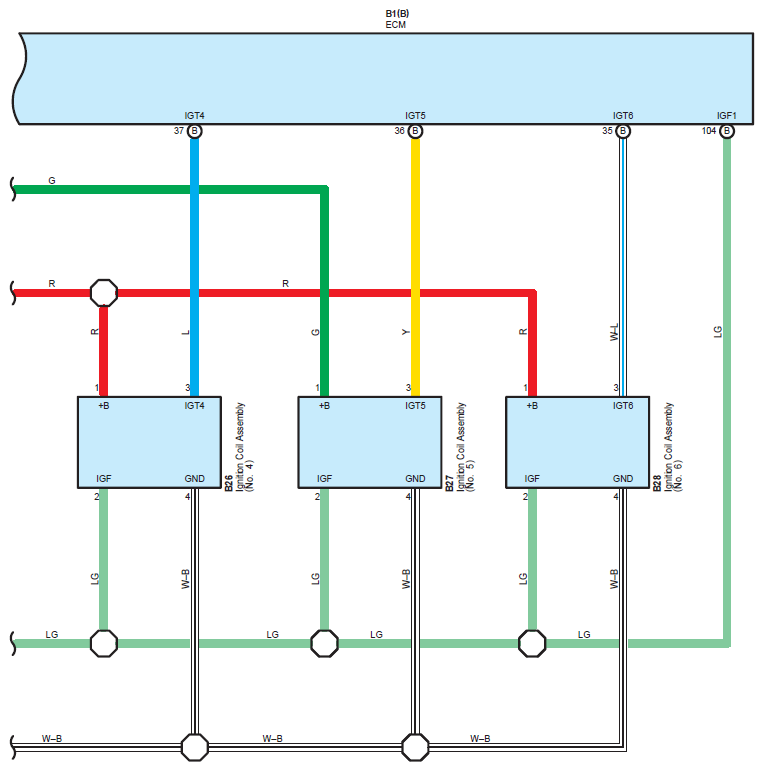

Fig 4: Ignition (2GR-FE) System Wiring Diagram (4 Of 4)
G07112848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
