Tacoma Base, 2D Pickup, 4WD, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
4WD Control System / Transfer Case Control System (Inspection)
>>
4WD Control System / Transfer Case Control System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

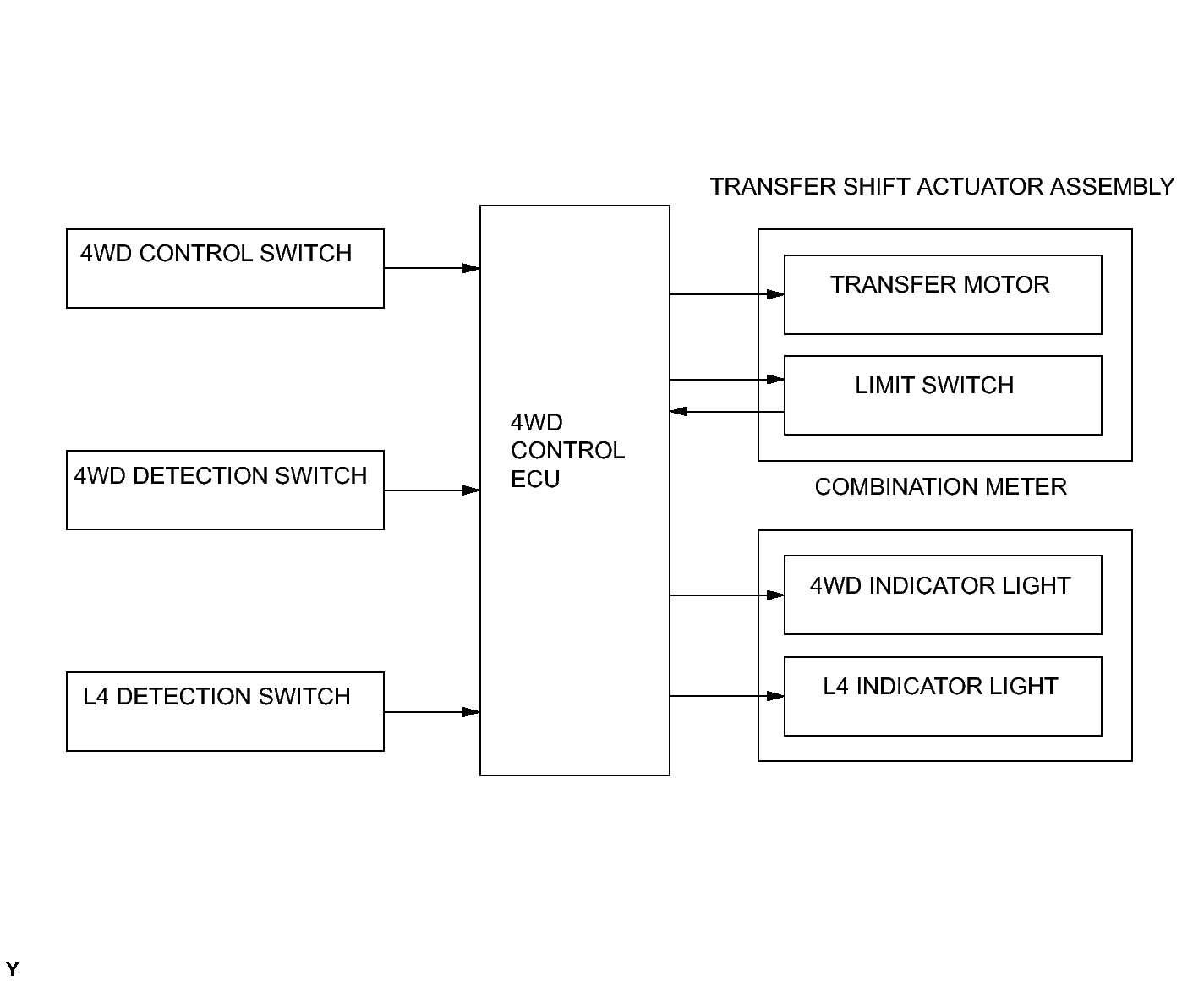

Fig 1: Touch Select 2--4 & High-Low System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
